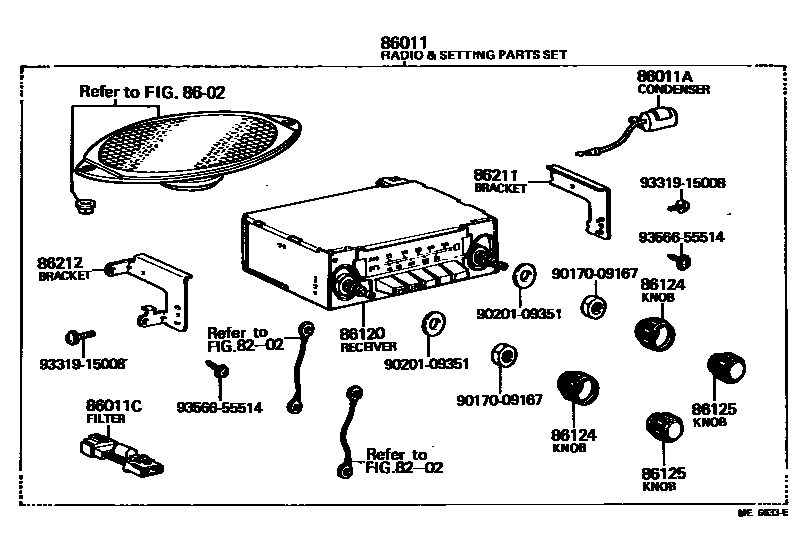

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86011RADIO & SETTING PARTS SET

main86011-19165iTA40..GEN197708-197908

AM,5-BUTTON

main86011-19195iTA40..GEN197708-197908

AM/FM,5-BUTTON

main86011-19205iTA40..GEN197708-197908

SW/MW,5-BUTTON

main86011-19385iTA40..LHD..GEN; TA40..RHD..GEN197908-198107

AM,5-BUTTON

main86011-19395iTA40197908-198107

AM/FM,5-BUTTON

main86011-19405iTA4#..RHD..EUG197908-198107

AM/LW,5-BUTTON

main86011-19415iTA4#..EUG197908-198107

AM/LW/FM,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011×2iTA40..GEN197708-198107

PLUG CONNECTOR

86011CFILTER, NOISE

main90980-05039iTA40..GEN197708-197908

FOR WIPER,AM/FM RADIO

main90980-05050iTA47..LHD..EUG198008-198107

FOR WIPER,AM/FM RADIO

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-14080iTA40..GEN197708-197908

AM,5-BUTTON

main86120-14110iTA40..GEN197708-197908

AM/FM,5-BUTTON

main86120-14120iTA40..GEN197708-197908

SW/MW,5-BUTTON

main86120-20200iTA4#..RHD..EUG197908-198107

LW/MW,5-BUTTON

main86120-20210iTA4#..EUG197908-198107

AM/LW/FM,5-BUTTON

main86120-20220iTA40..GEN197908-198107

SW/MW,5-BUTTON

main86120-20230iTA40..LHD..GEN; TA40..RHD..GEN197908-198107

AM,5-BUTTON

main86120-20260iTA40197908-198107

AM/FM,5-BUTTON

main86120-22170iTA40..EUG197708-197908

LW/MW,5-BUTTON

main86120-22220iTA40..EUG197808-197908

LW/MW/UKW,5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-20040×2iTA40..GEN197708-198107

86125KNOB, RADIO RECEIVER SWITCH

main86125-20040×2iTA40..GEN197708-198107

86211BRACKET, RADIO, NO.1

main86211-14020iTA40..GEN197708-197908

main86211-14040iTA40..GEN197908-197911

main86211-14041iTA40..GEN197911-198107

86212BRACKET, RADIO, NO.2

main86212-14020iTA40..GEN197708-197908

main86212-14040iTA40..GEN197908-197911

main86212-14041iTA40..GEN197911-198107

9017009167

main90170-09167

9020109351

main90201-09351

9331915008

main93319-15008

9356655514

main93566-55514

14 parts on this diagram · 3 diagrams in section
