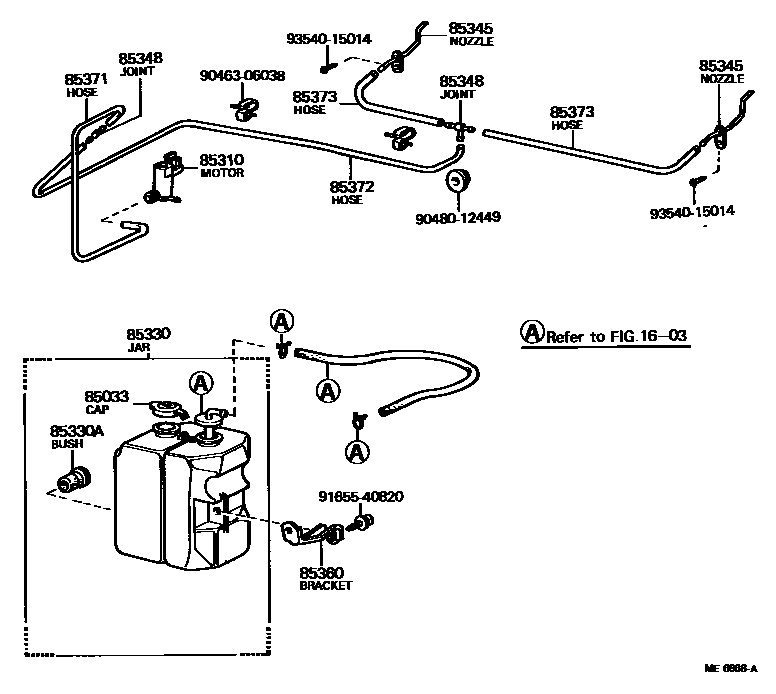

WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iTA4#197908-198107

main85332-20020iTA40197708-197908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iTA4#197708-198107

85330JAR ASSY, WINDSHIELD WASHER

main85330-14051iTA40197708-197810

main85330-14052iTA40197810-197908

main85330-20200iTA4#197908-198004

main85330-20201iTA40; TA47..SDN198004-198107

main85330-20280iTA47..EUG198008-198107

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iTA4#197708-198107

85345NOZZLE, WINDSHIELD WASHER

main85341-14060×2iTA40197708-197804

1-HOLE

main85341-14061×2iTA40197804-197808

2-HOLE

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011iTA40197708-197908

3 WAY TYPE

main85355-14010iTA4#197908-198107

3 WAY TYPE

main85355-87201iTA4#197708-198107

2 WAY TYPE

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-14061iTA40197708-198107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06286iTA4#197708-198107

L=1000(*H,L=400)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90445-12005iTA4#197908-198107

L=600(*H,L=550)

main90446-06205iTA40197708-197802

L=1200

main90446-07005iTA4#197802-198107

L=1800(*H,L=1200)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33289iTA4#197708-198107

L=1000(*H,L=160)

main90446-06056iTA4#197708-198107

L=1000(*H,L=700)

9046306038

main90463-06038

9048012449

main90480-12449

9165540820

main91655-40820

9354015014

main93540-15014

15 parts on this diagram · 1 diagram in section
