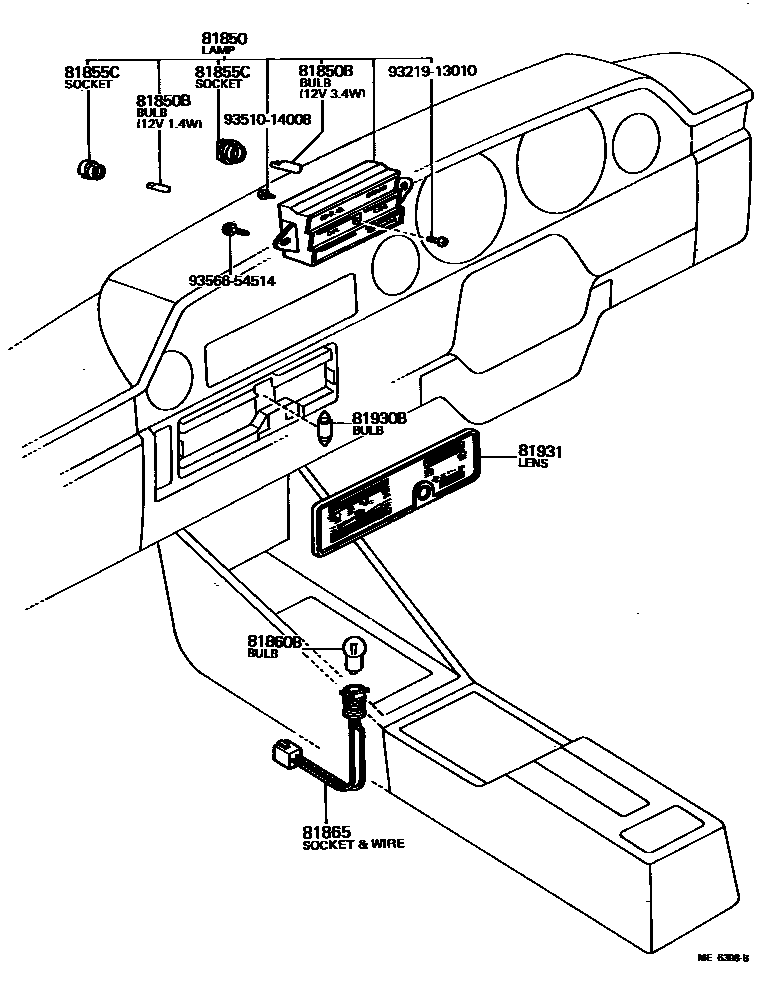

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-14130iTA40..DLX,GL,STD197708-197908

main81850-14190iTA40..ST197708-197908

main81850-14430iTA4#..DLX,GL,STD197908-198107

main81850-14440iTA40..ST..EUG197908-198107

main81850-14520iTA4#..LHD..(DLX,GL,STD)..EUG197908-198107

W/RED INDICATOR

main81850-14530iTA40..ST..EUG197908-198107

W/RED INDICATOR

main81850-14620iTA40..ST..GEN198002-198008

81850BBULB, INDICATOR LAMP

main90981-11018iTA40..LHD..(DLX,GL,STD)..EUG197708-197908

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034iTA4#197708-198107

12V 3.4W,12V 3.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-10010iTA4#197708-198003

12V 3.4W

sub83101-14030

main83101-14030iTA4#198003-198107

12V 3.4W

main83101-22010iTA40..LHD..(DLX,GL,STD)..EUG197708-197908

12V 1.4W

sub83101-14040

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iTA4#..3FC197908-198107

12V 1.7W,12V 1.7W

main99132-11034iTA40..3FC197708-197908

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iTA4#..3FC197708-198107

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010iTA4#197708-198107

12V 2W,12V 2W

81931LENS, HEATER CONTROL INDICATOR

main81943-14050iTA4#..RHD197708-198107

W/HEATER,W/HEATER & COOLER

main81943-14060iTA4#..LHD197708-198008

W/HEATER,W/HEATER & COOLER

main81943-14061iTA4#..LHD198008-198107

W/HEATER,W/HEATER & COOLER

main81943-14090iTA40..RHD..GEN197708-198107

W/*BV,W/*BV & COOLER

main81943-14100iTA40..LHD..GEN197708-198008

W/*BV,W/*BV & COOLER

main81943-14101iTA40..LHD..GEN198008-198107

W/*BV,W/*BV & COOLER

9321913010

main93219-13010

9351014008

main93510-14008

9356654514

main93566-54514

10 parts on this diagram · 1 diagram in section
