Toyota CARINA — INTERIOR LAMP

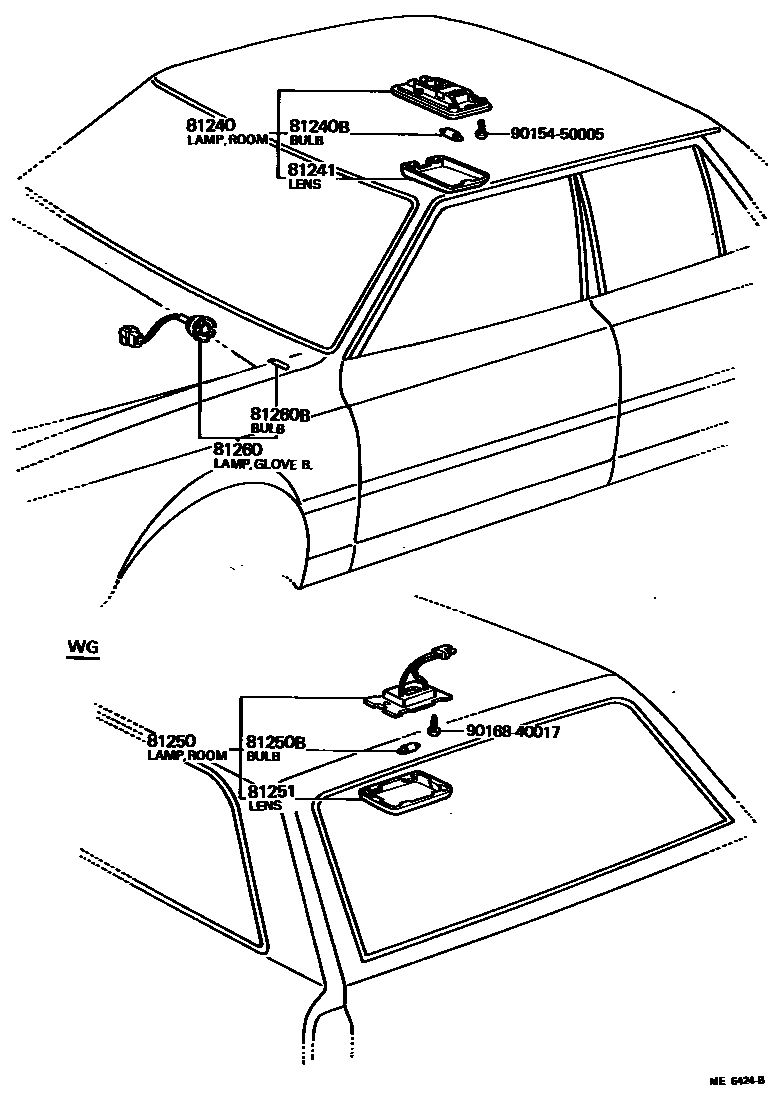

Parts diagram

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81241LENS, ROOM LAMP, NO.1

81250LAMP ASSY, ROOM, NO.2

81250BBULB, ROOM LAMP, NO.2

81251LENS, ROOM LAMP, NO.2

81260LAMP ASSY, GLOVE BOX

81260BBULB(FOR GLOVE BOX)

9015450005

9016840017

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota CARINA

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CARINA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
