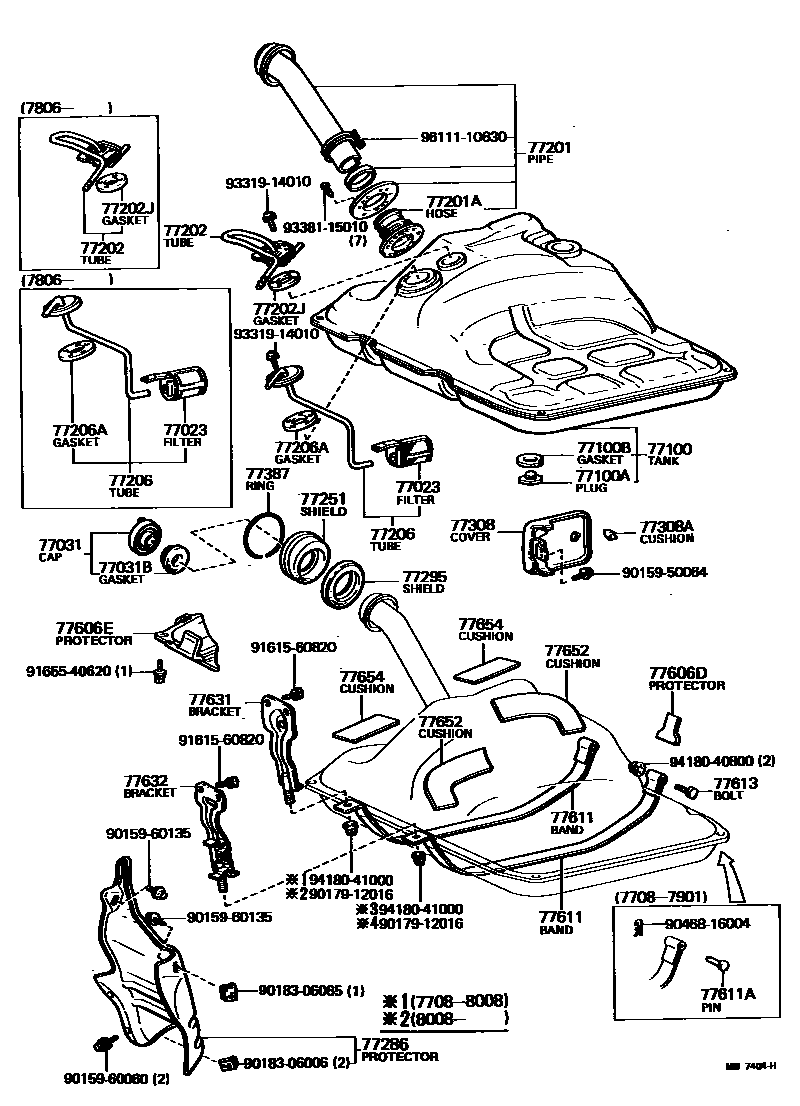

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iTA4#..SED197708-198107

77031CAP ASSY, FUEL TANK

main77310-12090iTA4#197908-198107

sub77310-12100

main77310-14070iTA40197708-197908

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iTA4#197708-198107

77100TANK ASSY, FUEL

main77001-14925iTA4#..SED197708-198106

sub77001-19095

sub77012-14022

main77001-14929iTA4#..SED198106-198107

sub77001-19095

main77101-15020iTA40..WG197708-198107

sub77101-15040

main77101-15040iTA40..WG..GEN197904-198107

77100APLUG(FOR FUEL TANK)

main90105-12018iTA4#..WG197708-198107

main90341-24036iTA4#..SED197708-198107

77100BGASKET(FOR FUEL TANK)

main90430-12245iTA4#..WG197708-198107

main90430-24047iTA4#..SED197708-198107

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14160iTA40..SED197708-197908

sub77201-14161

sub77310-12100

main77201-14161iTA4#..SED197908-198107

main77201-15010iTA40..WG197708-197908

sub77201-15020

sub77310-12100

main77201-15020iTA4#..WG197908-198107

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iTA4#..SED197708-198107

77202TUBE SUB-ASSY, BREATHER

main77012-14020iTA4#..SED197708-198008

main77012-14021iTA4#..SED198008-198106

sub77012-14023

main77012-14022iTA4#..SED198106-198107

sub77012-14023

77202JGASKET (FOR BREATHER TUBE)

main77179-14020iTA40..SED197708-197806

main77179-14030iTA4#..SED197806-198107

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14060iTA4#..SED197708-198008

main77203-14061iTA4#..SED198008-198107

main77203-15030iTA4#..WG197902-198107

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-12010iTA4#..WG197902-198107

main77169-14020iTA4#..SED197806-198107

main83361-20030iTA40..SED197708-197806

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iTA4#..WG197708-198107

main77291-14020iTA4#..SED197708-198107

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14020iTA4#..SED197708-198001

sub77277-14040

main77277-14040iTA4#..SED198001-198107

77295SHIELD, FUEL FILLER PIPE

main77292-14010iTA4#..SED197708-198107

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14020iTA4#..SED197708-198107

main77350-15010iTA4#..WG197708-198107

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001iTA4#..WG197708-198107

main90541-08003iTA4#..SED197708-198107

77387RING, FUEL INLET BOX

main77391-14010iTA4#..SED197708-198107

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14020iTA4#..SED198008-198107

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14070iTA4#..SED198008-198107

77611BAND, FUEL TANK

main77601-14040iTA4#..SED197708-198107

sub77601-14060

77611APIN (FOR FUEL TANK BAND)

main90240-08150iTA40..SED197708-197901

sub90240-08060

77613BOLT, FUEL TANK BAND SET

main77645-14030iTA4#..SED197902-198107

main91121-50875iTA40..SED197901-197902

77631BRACKET, FUEL TANK, NO.1

main77613-14020iTA4#..SED197708-198008

sub77613-14021

sub90179-12016

main77613-14021iTA4#..SED198008-198107

sub77613-14022

77632BRACKET, FUEL TANK, NO.2

main77614-14020iTA4#..SED197708-198008

sub77614-14021

sub90179-12016

main77614-14021iTA4#..SED198008-198107

77652CUSHION, FUEL TANK, NO.1

main77651-14050iTA4#..SED197708-198008

sub77652-20010

77654CUSHION, FUEL TANK, NO.2

main77652-14060iTA4#..SED197708-198107

120X70

main77652-20010iTA4#..SED198008-198107

120X120

9015950064

main90159-50064

9015960060

main90159-60060

9015960135

main90159-60135

9017912016

main90179-12016

9018306006

main90183-06006

9018306065

main90183-06065

9046816004

main90468-16004

9161560820

main91615-60820

9165540620

main91655-40620

9331914010

main93319-14010

9338115010

main93381-15010

9418040800

main94180-40800

9418041000

main94180-41000

9611110630

main96111-10630

41 parts on this diagram · 5 diagrams in section
