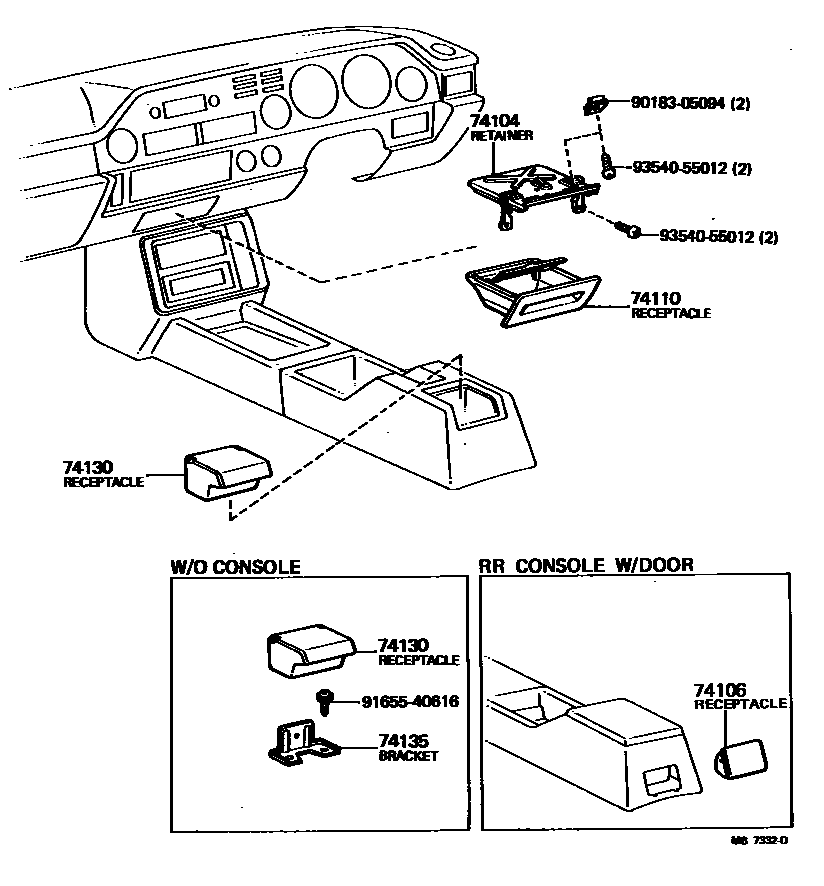

ASH RECEPTACLE
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
W/LIGHTING
74106RECEPTACLE SUB-ASSY, ASH, NO.2
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
74130RECEPTACLE ASSY, REAR ASH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
74135BRACKET, REAR ASH RECEPTACLE
9018305094
main90183-05094
9165540616
main91655-40616
9354055012
main93540-55012
8 parts on this diagram · 1 diagram in section
