E
EPC Data

ARMREST & VISOR

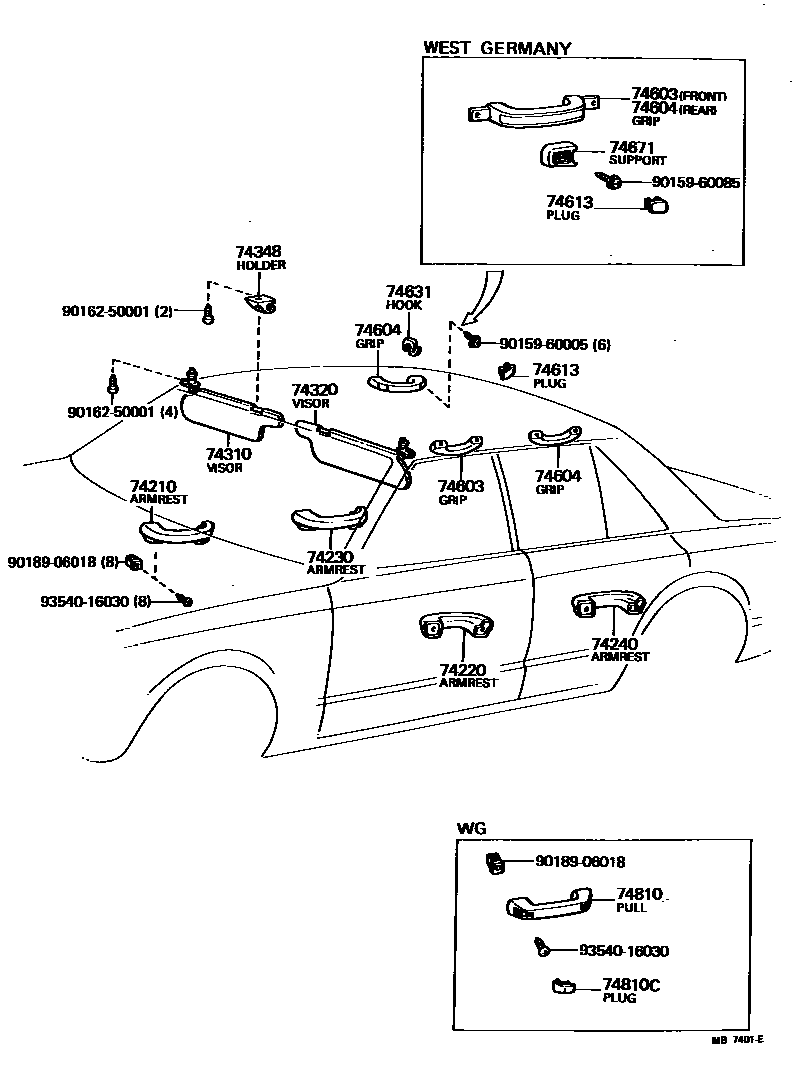

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main74210-14030-04i197708-198107
BLUE,BLUE,TRIM8#
main74210-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main74220-14030-04i197708-198107
BLUE,BLUE,TRIM8#
main74220-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main74210-14030-04i197708-198107
BLUE,BLUE,TRIM8#
main74210-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74220-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main74220-14030-04i197708-198107
BLUE,BLUE,TRIM8#
main74220-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-14060-03i197708-197808
GRAY,GRAY,TRIM2#
main74310-14060-04i197708-197808
BLUE,BLUE,TRIM8#
main74310-14060-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
main74310-14061-03i197808-198008
GRAY,GRAY,TRIM2#
main74310-14061-04i197808-198107
BLUE,BLUE,TRIM8#
main74310-14061-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main74310-14061-08i198008-198107
IVORY,IVORY,TRIM2#
main74310-14090-03i197708-198008
GRAY,GRAY,TRIM2#
main74310-14090-04i197708-198107
BLUE,BLUE,TRIM8#
main74310-14090-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main74310-14090-08i198008-198107
IVORY,IVORY,TRIM2#
main74310-14130-03i197808-198008
W/MIRROR,GRAY,GRAY,TRIM2#
main74310-14130-04i197808-198107
W/MIRROR,BLUE,BLUE,TRIM8#
main74310-14130-06i197808-198107
W/MIRROR,LIGHT BROWN,BROWN,TRIM4#
main74310-14130-08i198008-198107
W/MIRROR,IVORY,IVORY,TRIM2#
main74310-14141-03i197812-198008
W/MIRROR,GRAY,GRAY,TRIM2#
main74310-14141-04i197812-198107
W/MIRROR,BLUE,BLUE,TRIM8#
main74310-14141-06i197812-198107
W/MIRROR,LIGHT BROWN,BROWN,TRIM4#
main74310-14141-08i198008-198107
W/MIRROR,IVORY,IVORY,TRIM2#
main74320-14080-03i197708-197808
GRAY,GRAY,TRIM2#
main74320-14080-04i197708-197808
BLUE,BLUE,TRIM8#
main74320-14080-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
main74320-14081-03i197808-198107
GRAY,GRAY,TRIM2#
main74320-14081-04i197808-198107
BLUE,BLUE,TRIM8#
main74320-14081-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main74320-14120-03i197708-197808
GRAY,GRAY,TRIM2#
main74320-14120-04i197708-197808
BLUE,BLUE,TRIM8#
main74320-14120-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
74320VISOR ASSY, LH
main74320-14080-03i197708-197808
GRAY,GRAY,TRIM2#
main74320-14080-04i197708-197808
BLUE,BLUE,TRIM8#
main74320-14080-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
main74320-14081-03i197808-198008
GRAY,GRAY,TRIM2#
main74320-14081-04i197808-198107
BLUE,BLUE,TRIM8#
main74320-14081-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main74320-14081-08i198008-198107
IVORY,IVORY,TRIM2#
main74320-14090-03i197708-197808
GRAY,GRAY,TRIM2#
main74320-14090-04i197708-197808
BLUE,BLUE,TRIM8#
main74320-14090-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
main74320-14091-03i197808-198008
GRAY,GRAY,TRIM2#
main74320-14091-04i197808-198107
BLUE,BLUE,TRIM8#
main74320-14091-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main74320-14091-08i198008-198107
IVORY,IVORY,TRIM2#
main74320-14120-03i197708-197808
GRAY,GRAY,TRIM2#
main74320-14120-04i197708-197808
BLUE,BLUE,TRIM8#
main74320-14120-06i197708-197808
LIGHT BROWN,BROWN,TRIM4#
main74320-14130-03i197708-198008
GRAY,GRAY,TRIM2#
main74320-14130-04i197708-198107
BLUE,BLUE,TRIM8#
main74320-14130-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main74320-14130-08i198008-198107
IVORY,IVORY,TRIM2#
main74320-14200-03i197808-198008
W/MIRROR,GRAY,GRAY,TRIM2#
main74320-14200-04i197808-198107
W/MIRROR,BLUE,BLUE,TRIM8#
main74320-14200-06i197808-198107
W/MIRROR,LIGHT BROWN,BROWN,TRIM4#
main74320-14200-08i198008-198107
W/MIRROR,IVORY,IVORY,TRIM2#
main74320-14211-03i197812-198008
W/MIRRER,GRAY,GRAY,TRIM2#
main74320-14211-04i197812-198107
W/MIRRER,BLUE,BLUE,TRIM8#
main74320-14211-06i197812-198107
W/MIRRER,LIGHT BROWN,BROWN,TRIM4#
main74320-14211-08i198008-198107
W/MIRROR,IVORY,IVORY,TRIM2#
74348HOLDER, VISOR
main74348-14020-03i197708-198008
GRAY,GRAY,TRIM2#
main74348-14020-04i197708-198107
BLUE,BLUE,TRIM8#
main74348-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main74348-14020-08i198008-198107
IVORY,IVORY,TRIM2#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-95800-03i197708-198008
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74603-95800-04i197708-198107
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74603-95800-05i197708-198107
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-95800-08i198008-198107
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#
main74610-10020-03i197810-198008
GRAY,GRAY,TRIM2#
main74610-10020-04i197810-198107
BLUE,BLUE,TRIM8#
main74610-10020-05i197810-198107
BEIGE,BEIGE,TRIM4#
main74610-10020-08i198008-198107
IVORY,IVORY,TRIM2#
main74610-14010-03i197708-197810
GRAY,GRAY,TRIM2#
main74610-14010-04i197708-197810
BLUE,BLUE,TRIM8#
main74610-14010-06i197708-197810
LIGHT BROWN,BROWN,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-95800-03×2i197708-198008
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74603-95800-04×2i197708-198107
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74603-95800-05×2i197708-198107
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-95800-08×2i198008-198107
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#
main74610-10020-03×2i197810-198008
GRAY,GRAY,TRIM2#
main74610-10020-04×2i197810-198107
BLUE,BLUE,TRIM8#
main74610-10020-05×2i197810-198107
BEIGE,BEIGE,TRIM4#
main74610-10020-08×2i198008-198107
IVORY,IVORY,TRIM2#
main74610-14010-03×2i197708-197810
GRAY,GRAY,TRIM2#
main74610-14010-04×2i197708-197810
BLUE,BLUE,TRIM8#
main74610-14010-06×2i197708-197810
LIGHT BROWN,BROWN,TRIM4#
74613PLUG, ASSIST GRIP
main74617-14010-03×6i197708-198008
GRAY,GRAY,TRIM2#
main74617-14010-04×6i197708-198107
BLUE,BLUE,TRIM8#
main74617-14010-06×6i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main74617-14010-08×6i198008-198107
IVORY,IVORY,TRIM2#
main74617-22010-03×6i197708-198008
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74617-22010-04×6i197708-198107
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74617-22010-06×6i197708-198107
WEST GERMANY SPEC,LIGHT BROWN,SABLE,TRIM4#
main74617-22010-08×6i198008-198107
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#
74631HOOK, COAT, A
main74631-14010-03i197802-198008
GRAY,GRAY,TRIM2#
main74631-14010-04i197802-198107
BLUE,BLUE,TRIM8#
main74631-14010-06i197802-198107
LIGHT BROWN,BROWN,TRIM4#
main74631-14010-08i198008-198107
IVORY,IVORY,TRIM2#
74671SUPPORT, ASSIST GRIP
main74671-22010-03×6i197708-198008
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74671-22010-04×6i197708-198107
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74671-22010-05×6i197708-198107
WEST GERMANY SPEC,LIGHT BROW,BEIGE,TRIM4#
main74671-22010-08×6i198008-198107
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#
74810PULL ASSY, DOOR, INSIDE
main74801-15010-01×2i197708-198107
BLACK,BLACK,TRIM2#
main74801-15010-06×2i197708-198107
LIGHT BROWN,BROWN,TRIM4#
74810CPLUG, DOOR PULL HANDLE
main74814-15010-01×4i197708-198107
BLACK,BLACK,TRIM2#
main74814-15010-06×4i197708-198107
LIGHT BROWN,BROWN,TRIM4#
9015960005
main90159-60005
9015960085
main90159-60085
9016250001
main90162-50001
9018906018
main90189-06018
9354016030
main93540-16030

19 parts on this diagram · 1 diagram in section
