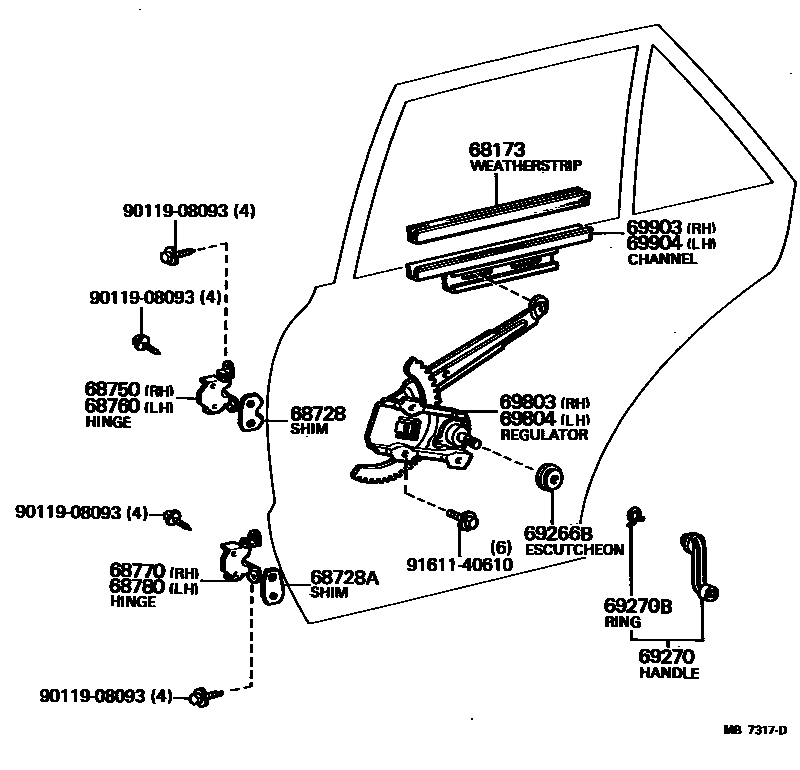

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69975-22020×2iTA4#..4D197708-198107

68728SHIM, REAR DOOR HINGE, UPPER

main68797-14010iTA4#..4D197708-198107

68728ASHIM, REAR DOOR HINGE, LOWER

main68798-14010iTA4#..4D197708-198107

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-14010iTA4#..4D197708-198107

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-14010iTA4#..4D197708-198107

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-14010iTA4#..4D197708-198107

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-14010iTA4#..4D197708-198107

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010×2iTA4#..(DLX,ST,STD)..4D197903-198107

main69266-22010-01×2iTA40..(DLX,ST,STD)..4D197708-197903

BLACK,BLACK,TRIM2#

main69266-22010-04×2iTA40..4DS..(DLX,ST,STD)197708-197903

BLUE,BLUE,TRIM8#

main69266-22010-05×2iTA40..(DLX,ST,STD)..4D197708-197903

BEIGE,BEIGE,TRIM4#

main69272-30010×2iTA4#..GL197708-198107

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12010-04×2iTA4#..4DS..(DLX,ST,STD)197708-198107

BLUE,BLUE,TRIM8#

main69260-12010-05×2iTA4#..(DLX,ST,STD)..4D197708-198107

BEIGE,BEIGE,TRIM4#

main69260-12010-11×2iTA4#..(DLX,ST,STD)..4D197708-198107

BLACK,BLACK,TRIM2#

main69260-22020-01×2iTA4#..GL197708-198107

BLACK,BLACK,TRIM2#

main69260-22020-04×2iTA4#..GL197708-198107

BLUE,BLUE,TRIM8#

main69260-22020-05×2iTA4#..GL197708-198107

BEIGE,BEIGE,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iTA4#..GL197708-198107

main90520-01274×2iTA4#..(DLX,ST,STD)..4D197708-198107

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-14030iTA4#..4D197708-198107

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-14030iTA4#..4D197708-198107

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-14010iTA4#..4D197708-198107

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-14010iTA4#..4D197708-198107

9011908093

main90119-08093

9161140610

main91611-40610

16 parts on this diagram · 1 diagram in section
