INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

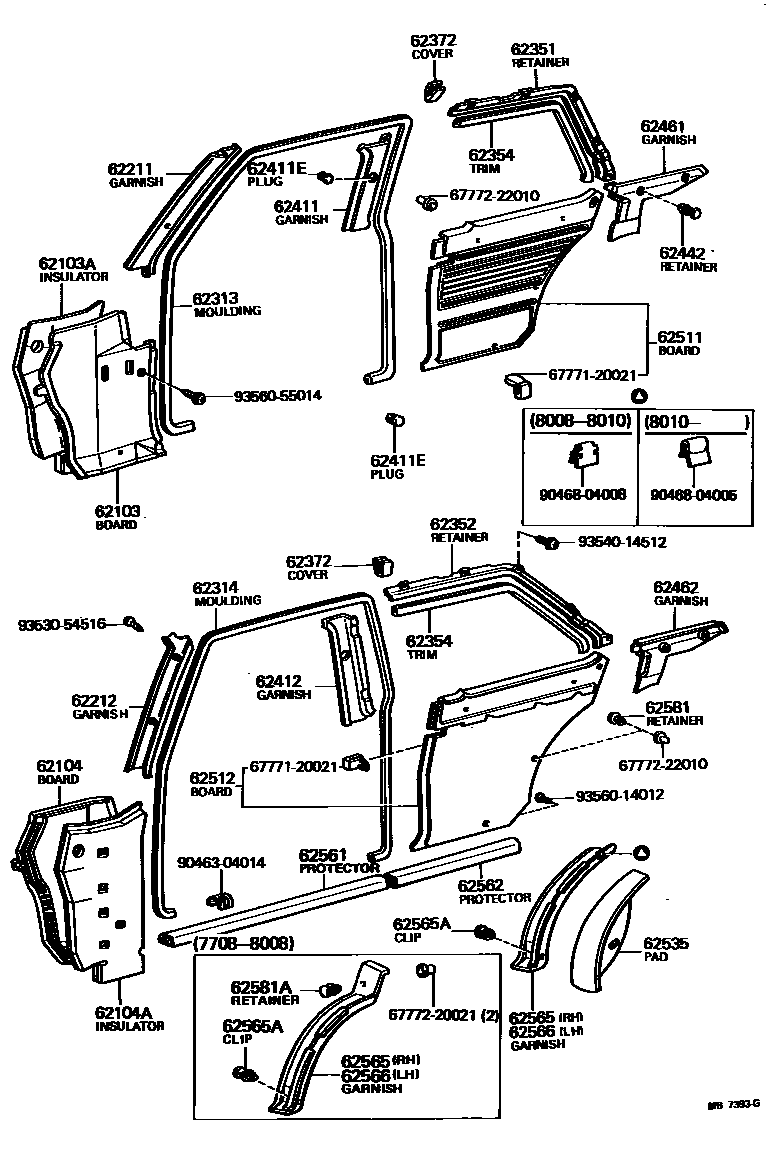

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-14050-01i197708-198107
BLACK,BLACK,TRIM2#
sub62101-14050
main62101-14050-04i197708-197908
BLUE,BLUE,TRIM8#
sub62101-14050
main62101-14050-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62101-14050
main62101-14050-14i197908-198107
BLUE,BLUE,TRIM8#
sub62101-14050
main62111-14070-01i197708-198107
BLACK,BLACK,TRIM2#
sub62111-14070
main62111-14070-04i197708-197908
BLUE,BLUE,TRIM8#
sub62111-14070
main62111-14070-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62111-14070
main62111-14070-14i197908-198107
BLUE,BLUE,TRIM8#
sub62111-14070
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-14010i197708-198107
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-14080-01i197708-198107
BLACK,BLACK,TRIM2#
sub62102-14080
main62102-14080-04i197708-197908
BLUE,BLUE,TRIM8#
sub62102-14080
main62102-14080-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62102-14080
main62102-14080-14i197908-198107
BLUE,BLUE,TRIM8#
sub62102-14080
main62112-14090-01i197708-198107
BLACK,BLACK,TRIM2#
sub62112-14090
main62112-14090-04i197708-197908
BLUE,BLUE,TRIM8#
sub62112-14090
main62112-14090-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62112-14090
main62112-14090-14i197908-198107
BLUE,BLUE,TRIM8#
sub62112-14090
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-14010i197708-198107
62211GARNISH, FRONT PILLAR, RH
main62211-14070-01i197708-198107
BLACK,BLACK,TRIM2#
sub62211-14070
main62211-14070-04i197708-197908
BLUE,BLUE,TRIM8#
sub62211-14070
main62211-14070-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62211-14070
main62211-14070-14i197908-198107
BLUE,BLUE,TRIM8#
sub62211-14070
62212GARNISH, FRONT PILLAR, LH
main62212-14070-01i197708-198107
BLACK,BLACK,TRIM2#
sub62212-14070
main62212-14070-04i197708-197908
BLUE,BLUE,TRIM8#
sub62212-14070
main62212-14070-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62212-14070
main62212-14070-14i197908-198107
BLUE,BLUE,TRIM8#
sub62212-14070
62313MOULDING, FRONT DOOR OPENING TRIM, RH
main62313-14040-01i197708-198107
BLACK,BLACK,TRIM2#
main62313-14040-04i197708-198107
BLUE,BLUE,TRIM8#
main62313-14040-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62313-14050-01i197708-198107
BLACK,BLACK,TRIM2#
main62313-14050-04i197708-198107
BLUE,BLUE,TRIM8#
main62313-14050-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
62314MOULDING, FRONT DOOR OPENING TRIM, LH
main62313-14040-01i197708-198107
BLACK,BLACK,TRIM2#
main62313-14040-04i197708-198107
BLUE,BLUE,TRIM8#
main62313-14040-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62313-14050-01i197708-198107
BLACK,BLACK,TRIM2#
main62313-14050-04i197708-198107
BLUE,BLUE,TRIM8#
main62313-14050-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
62351RETAINER, QUARTER WINDOW INSIDE TRIM, RH
main62355-14010i197708-198107
62352RETAINER, QUARTER WINDOW INSIDE TRIM, LH
main62356-14010i197708-198107
62354TRIM, QUARTER WINDOW, INSIDE
main62353-14040-01i197708-198107
BLACK,BLACK,TRIM2#
main62353-14040-04i197708-198107
BLUE,BLUE,TRIM8#
main62353-14040-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
62372COVER, QUARTER WINDOW INSIDE TRIM
main62379-14010i197708-198107
62411GARNISH, CENTER PILLAR, RH
main62411-14020-01i197708-198107
BLACK,BLACK,TRIM2#
main62411-14020-04i197708-197908
BLUE,BLUE,TRIM8#
main62411-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62411-14020-14i197908-198107
BLUE,BLUE,TRIM8#
main62411-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main62411-14030-04i197708-197908
BLUE,BLUE,TRIM8#
main62411-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62411-14030-14i197908-198107
BLUE,BLUE,TRIM8#
main62411-14040-01i197708-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62411-14040-04i197708-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62411-14040-06i197708-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62411-14040-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
62411EPLUG, HOLE (FOR SEAT BELT)
main90950-01159-04i197708-198107
BLUE,BLUE,TRIM8#
sub90950-01159
main90950-01159-11i197708-198107
BLACK,BLACK,TRIM2#
sub90950-01159
main90950-01159-16i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub90950-01159
62412GARNISH, CENTER PILLAR, LH
main62412-14020-01i197708-198107
BLACK,BLACK,TRIM2#
main62412-14020-04i197708-197908
BLUE,BLUE,TRIM8#
main62412-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62412-14020-14i197908-198107
BLUE,BLUE,TRIM8#
main62412-14030-01i197708-198107
BLACK,BLACK,TRIM2#
main62412-14030-04i197708-197908
BLUE,BLUE,TRIM8#
main62412-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62412-14030-14i197908-198107
BLUE,BLUE,TRIM8#
main62412-14040-01i197708-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62412-14040-04i197708-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62412-14040-06i197708-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62412-14040-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
62442RETAINER, ROOF SIDE RAIL GARNISH
main90467-09084-03i197708-198008
GRAY,GRAY,TRIM2#
sub90467-09084
main90467-09084-14i197708-198107
BLUE,BLUE,TRIM8#
sub90467-09084
main90467-09084-28i198008-198107
IVORY,IVORY,TRIM2#
sub90467-09084
main90467-09084-46i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub90467-09084
62461GARNISH, ROOF SIDE TRIM, RH
main62570-14020-03i197708-198008
GRAY,GRAY,TRIM2#
main62570-14020-04i197708-198107
BLUE,BLUE,TRIM8#
main62570-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62570-14020-08i198008-198107
IVORY,IVORY,TRIM2#
main62571-14060-03i197708-198008
GRAY,GRAY,TRIM2#
main62571-14060-04i197708-198107
BLUE,BLUE,TRIM8#
main62571-14060-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62571-14060-08i198008-198107
IVORY,IVORY,TRIM2#
main62571-14070-03i197708-198008
GRAY,GRAY,TRIM2#
main62571-14070-04i197708-198107
BLUE,BLUE,TRIM8#
main62571-14070-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62571-14070-08i198008-198107
IVORY,IVORY,TRIM2#
62462GARNISH, ROOF SIDE TRIM, LH
main62572-14030-03i197708-198008
GRAY,GRAY,TRIM2#
main62572-14030-04i197708-198107
BLUE,BLUE,TRIM8#
main62572-14030-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62572-14030-08i198008-198107
IVORY,IVORY,TRIM2#
main62572-14040-03i197708-198008
GRAY,GRAY,TRIM2#
main62572-14040-04i197708-198107
BLUE,BLUE,TRIM8#
main62572-14040-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62572-14040-08i198008-198107
IVORY,IVORY,TRIM2#
main62580-14020-03i197708-198008
GRAY,GRAY,TRIM2#
main62580-14020-04i197708-198107
BLUE,BLUE,TRIM8#
main62580-14020-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
main62580-14020-08i198008-198107
IVORY,IVORY,TRIM2#
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-14300-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62510-14300-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62510-14300-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62510-14301-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62510-14301
main62510-14301-04i197808-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14301
main62510-14301-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62510-14301
main62510-14310-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62510-14320
main62510-14310-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14320
main62510-14310-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62510-14320
main62510-14311-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62510-14311
main62510-14311-04i197808-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14311
main62510-14311-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62510-14311
main62510-14311-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14311
main62510-14320-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62510-14320-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62510-14320-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62510-14321-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62510-14321
main62510-14321-04i197808-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14321
main62510-14321-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62510-14321
main62510-14321-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62510-14321
main62510-14330-01i197708-198107
BLACK,BLACK,TRIM2#
sub62510-14330
main62510-14330-04i197708-197908
BLUE,BLUE,TRIM8#
sub62510-14330
main62510-14330-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62510-14330
main62510-14330-14i197908-198107
BLUE,BLUE,TRIM8#
sub62510-14330
main62510-14340-01i197708-198107
BLACK,BLACK,TRIM2#
sub62510-14340
main62510-14340-04i197708-197908
BLUE,BLUE,TRIM8#
sub62510-14340
main62510-14340-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62510-14340
main62510-14340-14i197908-198107
BLUE,BLUE,TRIM8#
sub62510-14340
main62510-14350-01i197708-198107
BLACK,BLACK,TRIM2#
sub62510-14350
main62510-14350-04i197708-197908
BLUE,BLUE,TRIM8#
sub62510-14350
main62510-14350-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62510-14350
main62510-14350-14i197908-198107
BLUE,BLUE,TRIM8#
sub62510-14350
main62630-15030-01i197708-197804
BLACK,BLACK,TRIM2#
sub62630-15060
main62630-15030-06i197708-197804
LIGHT BROWN,BROWN,TRIM4#
sub62630-15060
main62630-15060-01i197804-198107
BLACK,BLACK,TRIM2#
main62630-15060-06i197804-198107
LIGHT BROWN,BROWN,TRIM4#
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-14300-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62520-14300-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62520-14300-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62520-14301-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62520-14301
main62520-14301-04i197808-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14301
main62520-14301-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62520-14301
main62520-14310-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62520-14320
main62520-14310-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14320
main62520-14310-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62520-14320
main62520-14311-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62520-14311
main62520-14311-04i197808-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14311
main62520-14311-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62520-14311
main62520-14311-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14311
main62520-14320-01i197708-197808
W/SEAT BELT,BLACK,BLACK,TRIM2#
main62520-14320-04i197708-197808
W/SEAT BELT,BLUE,BLUE,TRIM8#
main62520-14320-06i197708-197808
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main62520-14321-01i197808-198107
W/SEAT BELT,BLACK,BLACK,TRIM2#
sub62520-14321
main62520-14321-04i197808-197908
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14321
main62520-14321-06i197808-198107
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub62520-14321
main62520-14321-14i197908-198107
W/SEAT BELT,BLUE,BLUE,TRIM8#
sub62520-14321
main62520-14330-01i197708-198107
BLACK,BLACK,TRIM2#
sub62520-14330
main62520-14330-04i197708-197908
BLUE,BLUE,TRIM8#
sub62520-14330
main62520-14330-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62520-14330
main62520-14330-14i197908-198107
BLUE,BLUE,TRIM8#
sub62520-14330
main62520-14340-01i197708-198107
BLACK,BLACK,TRIM2#
sub62520-14340
main62520-14340-04i197708-197908
BLUE,BLUE,TRIM8#
sub62520-14340
main62520-14340-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62520-14340
main62520-14340-14i197908-198107
BLUE,BLUE,TRIM8#
sub62520-14340
main62520-14350-01i197708-198107
BLACK,BLACK,TRIM2#
sub62520-14350
main62520-14350-04i197708-197908
BLUE,BLUE,TRIM8#
sub62520-14350
main62520-14350-06i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62520-14350
main62520-14350-14i197908-198107
BLUE,BLUE,TRIM8#
sub62520-14350
main62632-15040-01i197708-197804
BLACK,BLACK,TRIM2#
sub62632-15070
main62632-15040-06i197708-197804
LIGHT BROWN,BROWN,TRIM4#
sub62632-15070
main62632-15070-01i197804-198107
BLACK,BLACK,TRIM2#
main62632-15070-06i197804-198107
LIGHT BROWN,BROWN,TRIM4#
62535PAD, QUARTER WHEEL HOUSE TRIM
main62611-14010i197708-198107
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-14060i197708-198107
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62561-20020i197908-198107
main62563-14040i197708-197908
sub62561-20020
62565GARNISH, REAR SEAT SIDE, RH
main62551-14030-01i197708-197908
BLACK,BLACK,TRIM2#
main62551-14030-04i197708-197908
BLUE,BLUE,TRIM8#
main62551-14030-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main62551-14030-11i197908-198107
BLACK,BLACK,TRIM2#
main62551-14030-14i197908-198107
BLUE,BLUE,TRIM8#
main62551-14030-16i197908-198107
LIGHT BROWN,BROWN,TRIM4#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
main90467-11005i197708-198008
main90468-04005i198010-198107
main90468-04008i198008-198010
62566GARNISH, REAR SEAT SIDE, LH
main62552-14020-01i197708-197908
BLACK,BLACK,TRIM2#
main62552-14020-04i197708-197908
BLUE,BLUE,TRIM8#
main62552-14020-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
main62552-14020-11i197908-198107
BLACK,BLACK,TRIM2#
main62552-14020-14i197908-198107
BLUE,BLUE,TRIM8#
main62552-14020-16i197908-198107
LIGHT BROWN,BROWN,TRIM4#
62581RETAINER, QUARTER TRIM
main62581-30010-11i197708-198107
BLACK,BLACK,TRIM2#
sub62581-30010
main62581-30010-14i197708-198107
BLUE,BLUE,TRIM8#
sub62581-30010
main62581-30010-46i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62581-30010
62581ARETAINER, QUARTER TRIM
main62581-30010-11i197708-198107
BLACK,BLACK,TRIM2#
sub62581-30010
main62581-30010-14i197708-198107
BLUE,BLUE,TRIM8#
sub62581-30010
main62581-30010-46i197708-198107
LIGHT BROWN,BROWN,TRIM4#
sub62581-30010
6777120021WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20021
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9046304014
main90463-04014
9046804005
main90468-04005
9046804008
main90468-04008
9353054516
main93530-54516
9354014512
main93540-14512
9356014012
main93560-14012
9356055014
main93560-55014

38 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
