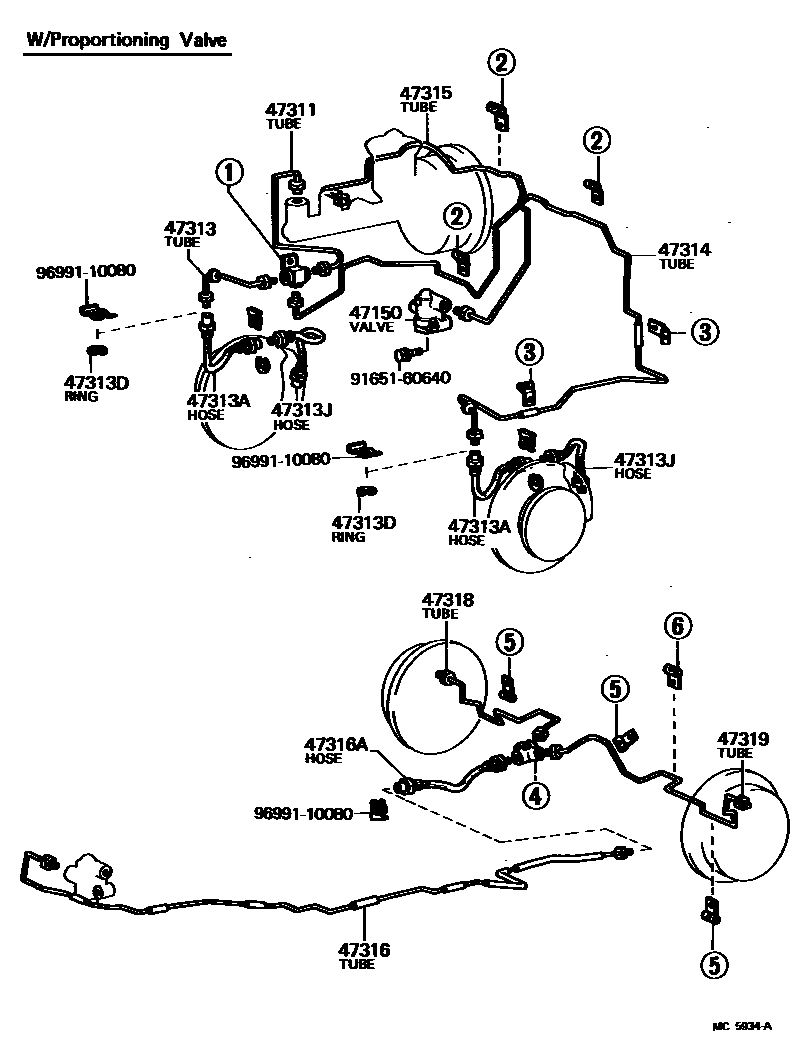

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-12041iTA40..GEN197708-198107

47311TUBE, FRONT BRAKE, NO.1

main47311-14110iTA40..RHD197708-197808

main47311-14140iTA4#..LHD..EUG197708-198107

sub47311-14150

main47311-14150iTA4#..SDN197801-198107

main47311-14180iTA4#..RHD197808-198107

47313TUBE, FRONT BRAKE, NO.3

main47312-14080iTA40..SDN197801-197808

main47312-14090iTA4#..LHD..EUG197808-198107

W/PV

sub47312-14100

main47312-14100iTA4#..SDN197808-198107

main47313-14025iTA40..LHD..EUG197708-197808

W/PV

sub47312-14080

main47313-14050iTA40..RHD197708-197808

main47313-14060iTA40..LHD..GEN197708-198107

main47313-20140iTA4#..RHD197808-198107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02122iTA4#197708-198107

sub96950-32854

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200iTA4#197708-198107

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02224iTA4#197708-198107

47314TUBE, FRONT BRAKE, NO.4

main47313-14090iTA40..RHD..GEN197808-197908

sub47313-14100

main47313-14100iTA40..RHD..GEN197908-198107

main47314-14022iTA4#..LHD..EUG197708-198107

sub47314-14031

main47314-14031iTA47..SDN197908-198107

main47314-14050iTA40..RHD..GEN197708-197808

main47314-14060iTA4#..RHD..EUG197708-198107

W/PV

47315TUBE, FRONT BRAKE, NO.5

main47321-14020iTA4#..LHD..EUG197708-198107

sub47321-14030

main47321-14030iTA4#..SDN197801-198107

main47321-14040iTA4#..RHD197708-198107

47316TUBE, FRONT BRAKE, NO.6

main47322-14010iTA4#..SED..EUG197708-198107

sub47322-14020

main47322-14020iTA4#..SED..SDN197801-198107

main47322-15010iTA40..WG..EUG197708-198107

sub47322-15020

main47322-15020iTA4#..WG..SDN197801-198107

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02394iTA40..SED197808-197902

sub96940-32855

main96940-31283iTA40..SED197708-197808

sub96940-32805

main96940-31303iTA4#..WG197708-198107

sub96940-33005

main96940-32855iTA4#..SED197902-198107

47318TUBE, FRONT BRAKE, NO.8

main47323-14030iTA4#..SED..SDN197801-198106

sub47323-14031

main47323-14031iTA47..SED..SDN198106-198107

sub47323-14032

main47323-14040iTA4#..SED..EUG197708-198106

sub47323-14041

main47323-14041iTA4#..SED..EUG198106-198107

sub47323-14042

main47323-15030iTA40..WG..EUG197708-198107

sub47323-15040

main47323-15040iTA4#..WG..SDN197801-198107

47319TUBE, FRONT BRAKE, NO.9

main47324-14040iTA4#..SED..SDN197801-198106

main47324-14041iTA47..SED..SDN198106-198107

sub47324-14042

main47324-14050iTA4#..SED..EUG197708-198106

sub47324-14040

main47324-14051iTA4#..SED..EUG198106-198107

sub47324-14052

main47324-15030iTA40..WG..EUG197708-197808

sub47324-15040

main47324-15031iTA40..WG..EUG197808-198107

sub47324-15041

main47324-15040iTA40..WG..SDN197801-197808

main47324-15041iTA4#..WG..SDN197808-198107

9165160640

main91651-60640

9699110080

main96991-10080
