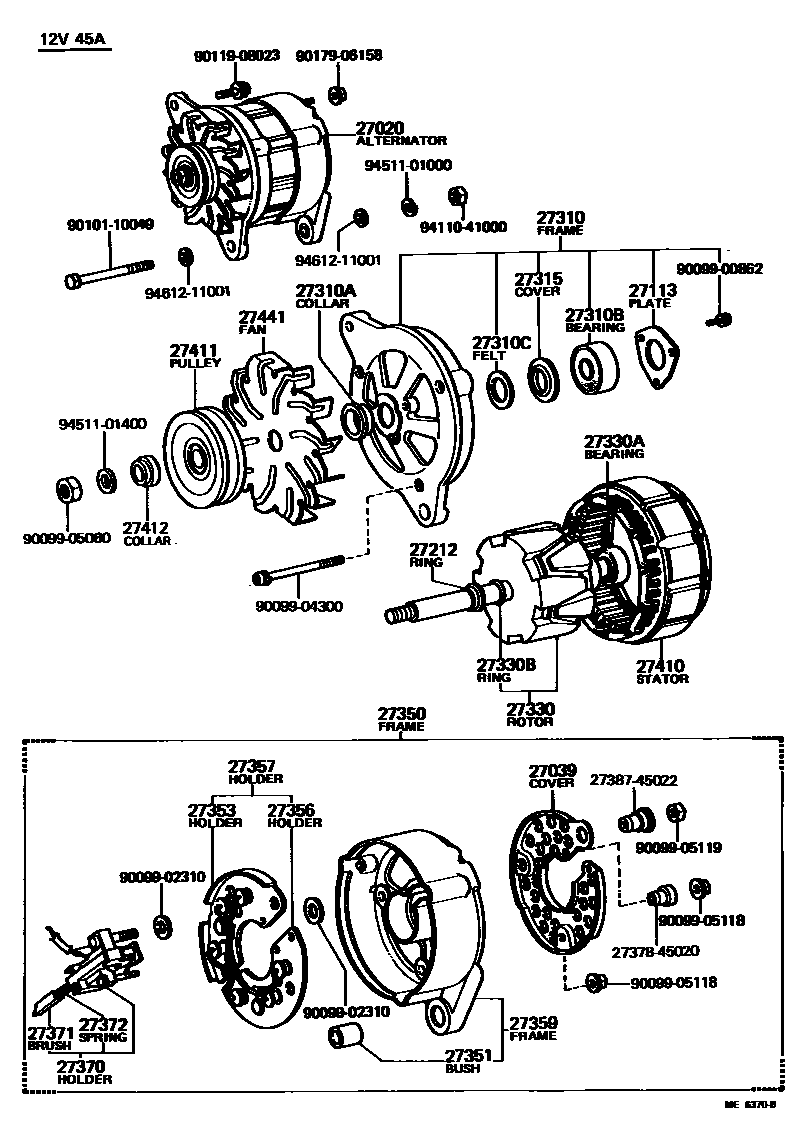

ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27020-34021i2TB..TA40..LHD..GEN197908-198008

12V 55A,12V 55A

main27020-34050i2T#..TA40..LHD..EUR197708-197908

12V 50A

main27020-34051i2T#,3T..TA4#197908-198107

12V 50A,12V 50A

main27020-36061i2T,2TB..TA40197708-197908

12V 45A

27039COVER, ALTERNATOR REAR END

main27039-36070i2T#..TA40197708-197908

12V 45A,50A

main27039-45110i2T#,3T#..TA4#197908-198107

12V 50A,55A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-31011i2T,2TB..TA40197708-197908

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2T,2TB..TA40197708-197908

12V 45A

main27412-45070i2T#..TA40..LHD..EUR197708-197908

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34030i2T,2TB..TA40197708-197908

12V 45A

main27310-34050i2T#..TA40..LHD..EUR197708-197908

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2T#,3T#..TA4#197708-198107

12V 45A,50A,55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10109i2T,2TB..TA40197708-197908

12V 45A

main90099-10125i2T#,3T#..TA4#197908-198107

12V 50A,55A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004i2T,2TB..TA40197708-197908

12V 45A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i2T,2TB..TA40197708-197908

12V 45A

27330ROTOR ASSY, ALTERNATOR

main27330-45020i2T,2TB..TA40197708-197908

12V 45A

main27330-45070i2T#..TA40..LHD..EUR197708-197908

12V 50A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10103i2T,2TB..TA40197708-197908

12V 45A

main90099-10111i2T#..TA40..LHD..EUR197708-197908

12V 50A

main90099-10116i2T#,3T#..TA4#197908-198107

12V 50A,55A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i2T,2TB..TA40197708-197908

12V 45A

27350FRAME ASSY, RECTIFIER END

main27350-36071i2T,2TB..TA40197708-197908

12V 45A

main27350-45080i2T#..TA40..LHD..EUR197708-197908

12V 50A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2T#,3T#..TA4#197708-198107

12V 45A,50A,55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i2T#,3T#..TA4#..LHD..EUR197908-198107

12V 55A

main27353-34050i2T#..TA40..LHD..EUR197708-197908

12V 50A

main27353-34051i2T#,3T..TA4#197908-198107

12V 50A

main27353-36070i2T,2TB..TA40197708-197908

12V 45A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27353-34021i2T#,3T#..TA4#..LHD..EUR197908-198107

12V 55A

main27356-36070i2T,2TB..TA40197708-197908

12V 45A

main27356-45080i2T#..TA40..LHD..EUR197708-197908

12V 50A

main27362-34050i2T#,3T..TA4#197908-198107

12V 50A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-36070i2T,2TB..TA40197708-197908

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i2T#,3T#..TA4#197908-198107

12V 50A,55A

main27359-44032i2T,2TB..TA40197708-197908

12V 45A

main27359-45081i2T#..TA40..LHD..EUR197708-197908

12V 50A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-45061i2T#..TA40197708-197908

12V 45A,50A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2T#,3T#..TA4#198007-198107

12V 50A,55A

main90099-17114×2i2T#,3TC..TA4#197908-198007

12V 50A,55A

27410STATOR ASSY, ALTERNATOR

main27410-26030i2T,2TB..TA40197708-197908

12V 45A

main27410-34050i2T#..TA40..LHD..EUR197708-197908

12V 50A

main27410-41080i2T#,3T..TA4#197908-198107

12V 50A

main27410-45120i2TB..TA40..LHD..GEN197908-198008

12V 55A

27411PULLEY, ALTERNATOR

main27411-31042i2T#,3T#..TA4#197708-198107

12V 45A,50A,55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i2T#,3T#..TA4#197708-198107

12V 45A,50A,55A

27441FAN, ALTERNATOR

main27441-34030i2T#,3T#..TA4#197708-198107

12V 45A,50A,55A

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2738745022INSULATOR, TERMINAL

main27387-45022

9009900862

main90099-00862

9009902310

main90099-02310

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211001

main94612-11001

39 parts on this diagram · 3 diagrams in section
