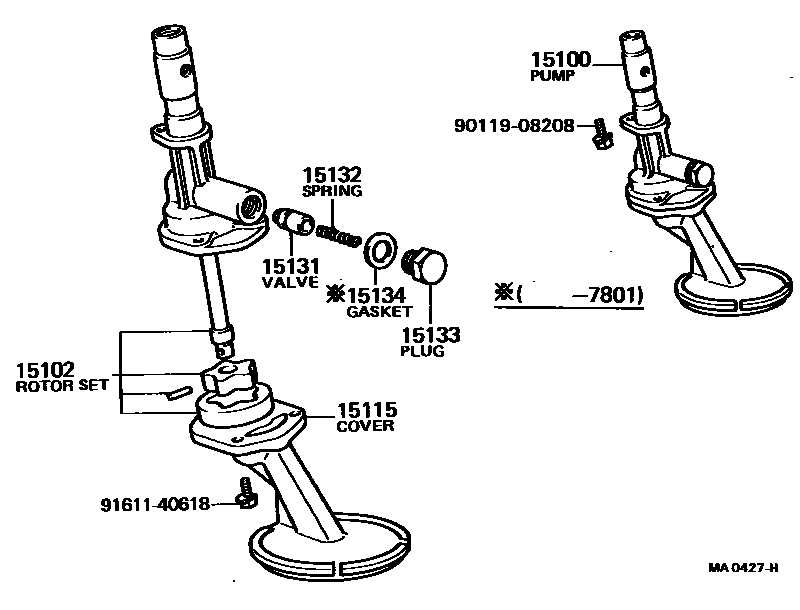

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-25020i2T#,3T#..TA4#197708-198107

15102ROTOR SET, OIL PUMP

main15102-25010i2T#,3T#..TA4#197708-198107

15115COVER, OIL PUMP

main15012-25020i2T#,3T#..TA4#197708-198107

15131VALVE, OIL PUMP RELIEF

main15131-22010i2T#,3T#..TA4#197708-198107

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2T#,3T#..TA4#197708-198107

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2T#..TA40197708-197901

main15133-41030i2T#,3T#..TA4#197901-198107

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2T#..TA40197708-197801

9011908208

main90119-08208

9161140618

main91611-40618

9 parts on this diagram · 1 diagram in section
