ENGINE OVERHAUL GASKET KIT

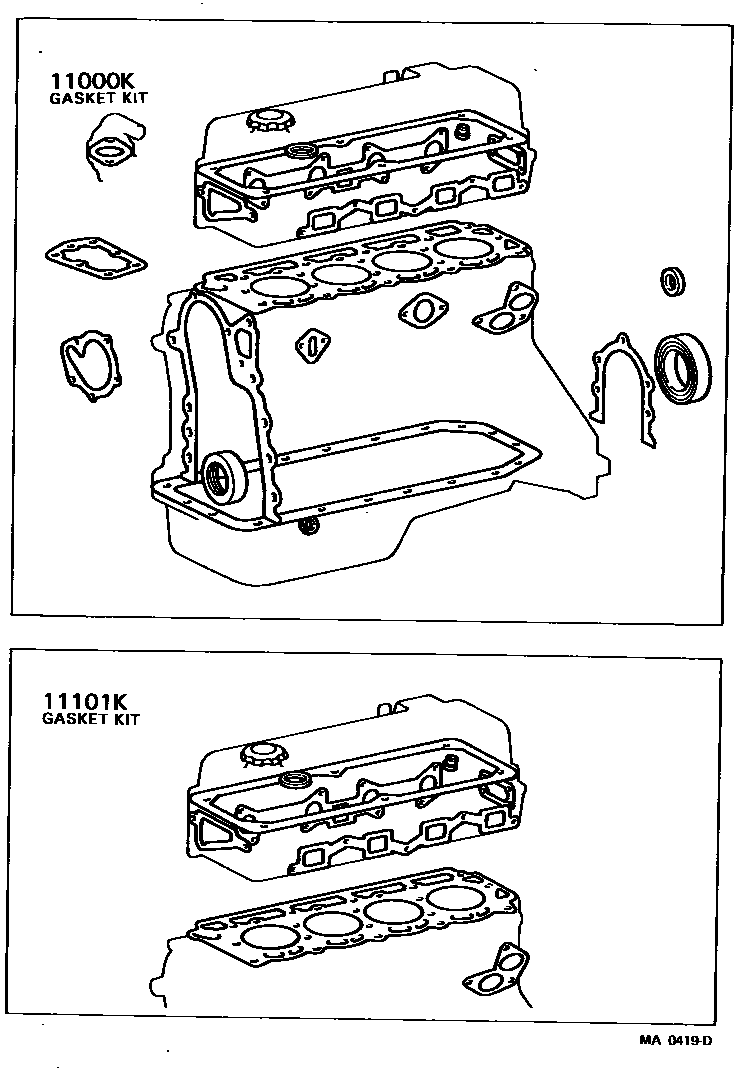

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-26027i197708-197808

main04111-26051i197801-197810

main04111-26053i197810-197908

main04111-28011i197808-197810

main04111-28012i197810-197908

main04111-28013i197908-198008

main04111-28014i198008-198101

main04111-28015i198101-198107

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-26026i197708-197808

main04112-26051i197801-197810

main04112-26053i197810-197908

main04112-28011i197808-197810

main04112-28012i197810-197908

main04112-28013i197908-198008

main04112-28014i198008-198101

main04112-28015i198101-198107

2 parts on this diagram · 1 diagram in section
