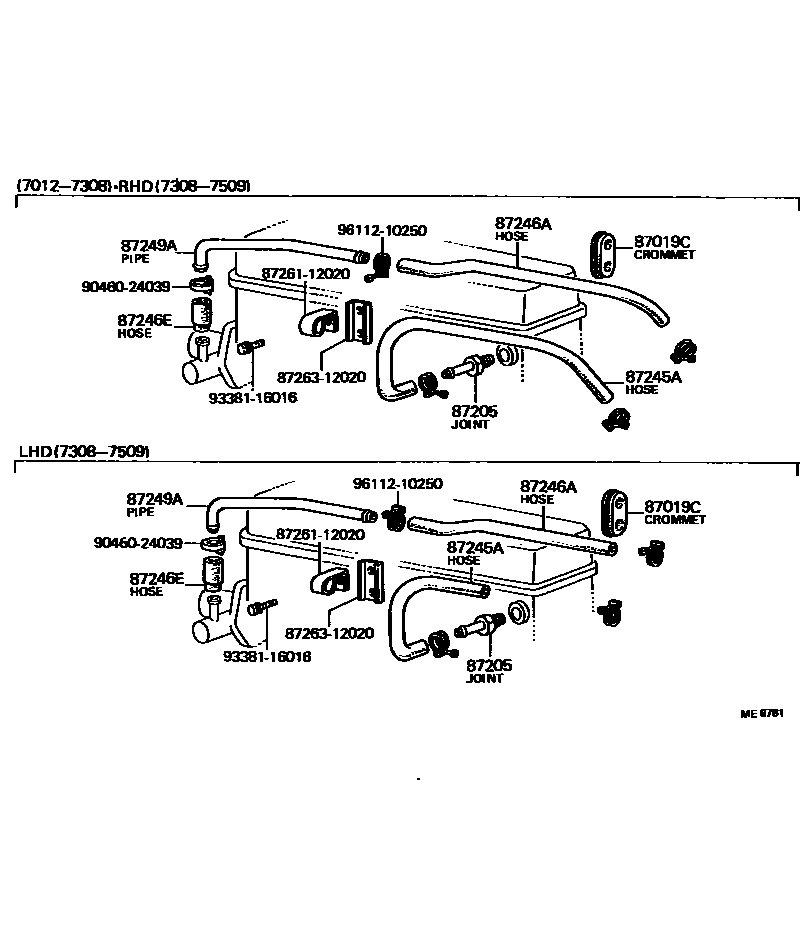

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01015×2iTA14197510-197707

main90480-01188iTA1#197012-197401

main90480-01426iTA1#..LHD197401-197509

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-14010iTA1#197012-197602

main87251-14020iTA14197603-197604

main87251-20100iTA14197605-197707

87245AHOSE, HEATER WATER, INLET A

main87245-14011iTA1#197012-197112

main87245-14012iTA1#197112-197308

main87245-14050iTA1#..LHD197308-197509

main87245-14130iTA14197510-197602

main87245-14280iTA14197603-197604

main87245-14320iTA14197605-197707

87246AHOSE, HEATER WATER, OUTLET A

main87245-14060iTA1#..LHD197308-197509

main87245-14270iTA12..RHD197508-197509

main87245-14520iTA14..RHD197706-197707

main87246-14020iTA12..RHD197308-197508

main99552-30055iTA14..LHD197510-197707

main99552-31000iTA14..RHD197510-197706

87246EHOSE, HEATER WATER, OUTLET E

main90445-24059iTA1#197012-197107

L=55

main99551-30055iTA1#197107-197303

L=55

main99552-30055iTA1#197303-197509

L=55

main99552-30840iTA14..LHD197510-197707

87249APIPE, HEATER WATER OUTLET, A

main87248-14040iTA14..LHD197510-197707

main87249-14010iTA1#197012-197303

main87249-14020iTA1#197303-197509

8726112020BRACKET, HEATER PUMP

main87261-12020

8726312020BRACKET, HEATER WATER PIPE, NO.1

main87263-12020

9046024039

main90460-24039

9338116016

main93381-16016

9611210250

main96112-10250

11 parts on this diagram · 2 diagrams in section
