E
EPC Data

MIRROR

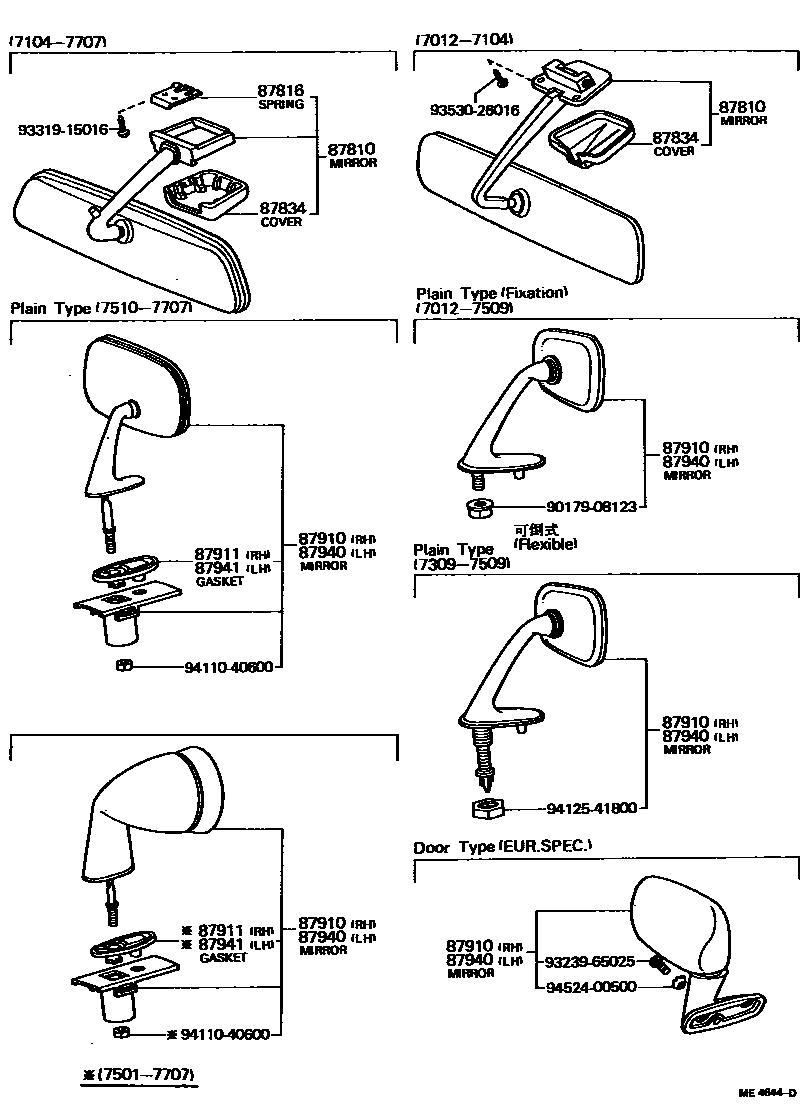

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-14010i197012-197104
GRAY
main87810-14011-01i197104-197707
BLACK,BLACK,TRIM4#
main87810-14011-03i197104-197401
GRAY,GRAY,TRIM2#,4#,8#
main87810-14011-08i197401-197707
IVORY,IVORY,TRIM0#,2#
main87810-14060-01i197510-197707
EUR.SPEC.BLACK,BLACK,TRIM4#
main87810-14060-05i197601-197707
EUR.SPEC.BEIGE,BEIGE,TRIM0#
main87810-14060-08i197510-197707
EUR.SPEC.IVORY,IVORY,TRIM0#,2#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30020i197104-197707
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-14010i197012-197104
GRAY
main87834-14011i197104-197401
GRAY
main87834-14011-01i197104-197707
BLACK,BLACK,TRIM4#
main87834-14011-05i197601-197707
EUR.SPEC.BEIGE,BEIGE,TRIM0#
main87834-14011-08i197401-197707
IVORY,IVORY,TRIM0#,2#
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-14011i197510-197707
EUR.SPEC.DOOR TYPE
main87910-19085i197012-197309
FENDER PLAIN TYPE
main87910-19095i197309-197401
FENDER PLAIN TYPE
main87910-19096i197510-197707
FENDER PLAIN TYPE
main87910-19215i197510-197707
FENDER SPORTS TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-14010i197510-197707
FENDER PLAIN TYPE
main87911-14020i197510-197707
FENDER SPORTS TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-14011i197510-197707
EUR.SPEC.DOOR TYPE
main87940-19075i197401-197509
FENDER PLAIN TYPE
main87940-19085i197309-197401
FENDER PLAIN TYPE
main87940-19086i197510-197707
FENDER PLAIN TYPE
main87940-19215i197510-197707
FENDER SPORTS TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-14010i197510-197707
FENDER PLAIN TYPE
main87941-14020i197510-197707
FENDER SPORTS TYPE
9017908123
main90179-08123
9323965025
main93239-65025
9331915016
main93319-15016
9353026016
main93530-26016
9411040600
main94110-40600
9412541800
main94125-41800
9452400500
main94524-00500

14 parts on this diagram · 1 diagram in section
