NAVIGATION & FRONT MONITOR DISPLAY

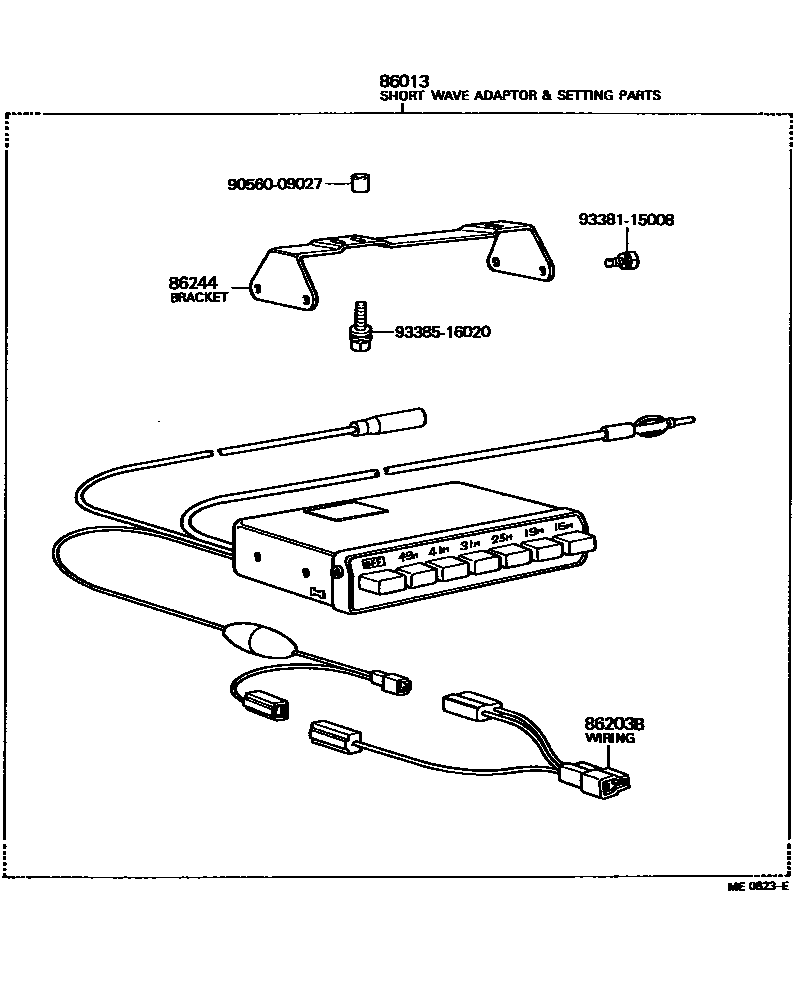

86013SHORT WAVE RADIO AND SETTING PARTS SET

main86013-14010iTA1#197012-197707

16-49METER BAND

main86013-14020iTA1#197012-197707

25-91METER BAND

86203BWIRING SUB-ASSY, SHORT WAVE

main86203-20010iTA1#197012-197707

86244BRACKET, SHORT WAVE ADAPTER

main86244-14010iTA1#197012-197707

9056009027

main90560-09027

9338115008

main93381-15008

9338516020

main93385-16020

6 parts on this diagram · 1 diagram in section
