LOCK CYLINDER SET

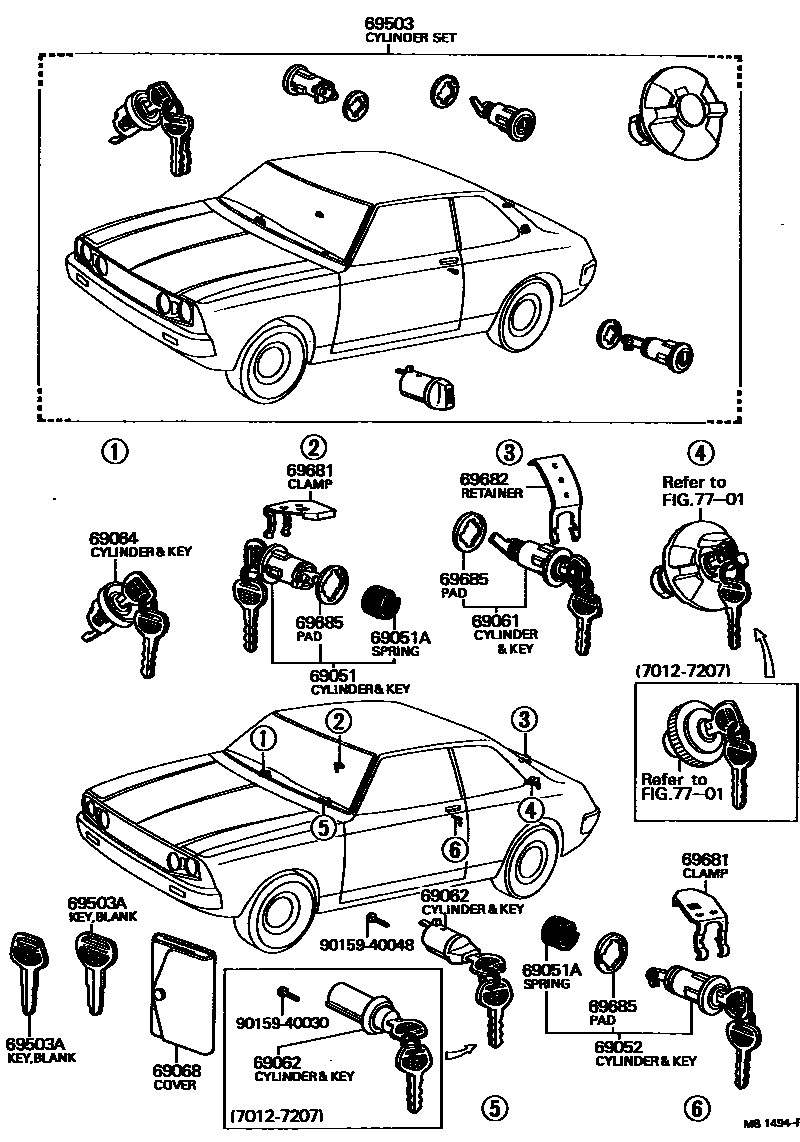

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-19015i197012-197509
sub69051-19016
main69051-19095i197510-197707
69051ASPRING, DOOR LOCK CYLINDER
main90508-09279i197012-197707
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-19015i197012-197509
sub69052-19016
main69052-19095i197510-197707
69061CYLINDER & KEY SET, LUGGAGE LOCK
main69055-19045i197510-197707
main69061-19055i197012-197509
sub69055-19045
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-14010i197510-197707
sub69056-14011
main69062-14010i197012-197207
main69062-14011i197208-197509
sub69056-20010
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-12011i197510-197707
main69064-14010i197012-197207
sub69064-20031
main69064-14030i197112-197207
sub69064-14031
main69064-14031i197208-197509
main69064-14040i197112-197207
10 NOTCH KEY PLATE
sub69064-14041
main69064-14041i197208-197509
10 NOTCH KEY PLATE
69068COVER SUB-ASSY, KEY
main69555-20010i197012-197707
69503CYLINDER SET, LOCK
main69005-19085i197510-197707
L/FUEL LOCK
main69005-19095i197510-197707
W/FUEL LOCK
main69503-19325i197012-197112
L/FUEL LOCK
sub69503-19326
main69503-19326i197112-197207
L/FUEL LOCK
sub69503-19296
main69503-19335i197012-197112
W/FUEL LOCK
sub69503-19336
main69503-19336i197112-197207
W/FUEL LOCK
main69503-19346i197112-197207
L/FUEL LOCK
sub69503-19347
main69503-19347i197208-197509
L/FUEL LOCK
sub69503-19356
main69503-19356i197112-197207
W/FUEL LOCK
main69503-19358i197208-197402
W/FUEL LOCK
sub69503-19485
main69503-19365i197105-197112
W/FUEL LOCK
sub69503-19366
main69503-19366i197112-197207
W/FUEL LOCK
main69503-19375i197112-197207
W/FUEL LOCK
sub69503-19415
main69503-19377i197208-197402
W/FUEL LOCK
sub69503-19378
main69503-19378i197402-197509
W/FUEL LOCK
sub69503-19485
main69503-19385i197112-197207
10 NOTCH KEY, W/FUEL LOCK
sub69503-19415
main69503-19387i197208-197405
10 NOTCH KEY, W/FUEL LOCK
sub69503-19388
main69503-19388i197405-197509
10 NOTCH KEY, W/FUEL LOCK
sub69503-19485
main69503-19405i197112-197207
10 NOTCH KEY, L/FUEL LOCK
sub69503-19406
main69503-19406i197208-197509
10 NOTCH KEY, L/FUEL LOCK
sub69503-19415
main69503-19415i197112-197207
10 NOTCH KEY, W/FUEL LOCK
main69503-19417i197208-197405
10 NOTCH KEY, W/FUEL LOCK
sub69503-19418
main69503-19418i197405-197509
10 NOTCH KEY, W/FUEL LOCK
sub69503-19485
main69503-19485i197402-197509
W/FUEL LOCK
69503AKEY, BLANK
main90999-00045i197012-197112
FOR MASTER KEY
sub90999-00054
main90999-00046i197012-197112
FOR SUB KEY
sub90999-00055
main90999-00054i197112-197509
FOR MASTER KEY
sub90999-00066
main90999-00055i197112-197509
FOR SUB KEY
sub90999-00068
main90999-00056i197112-197509
FOR 10 NOTCH KEY
main90999-00066i197510-197707
MASTER KEY,FOR MASTER KEY
sub90999-00085
main90999-00068i197510-197707
SUB KEY,FOR SUB KEY
sub90999-00094
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
main69681-20020i197012-197707
RH.
main69686-20010i197012-197707
LH.
69682RETAINER, LOCK CYLINDER
main69682-14010i197012-197707
69685PAD, LOCK CYLINDER
main69685-12010i197012-197707
7701
9015940030
main90159-40030
9015940048
main90159-40048
