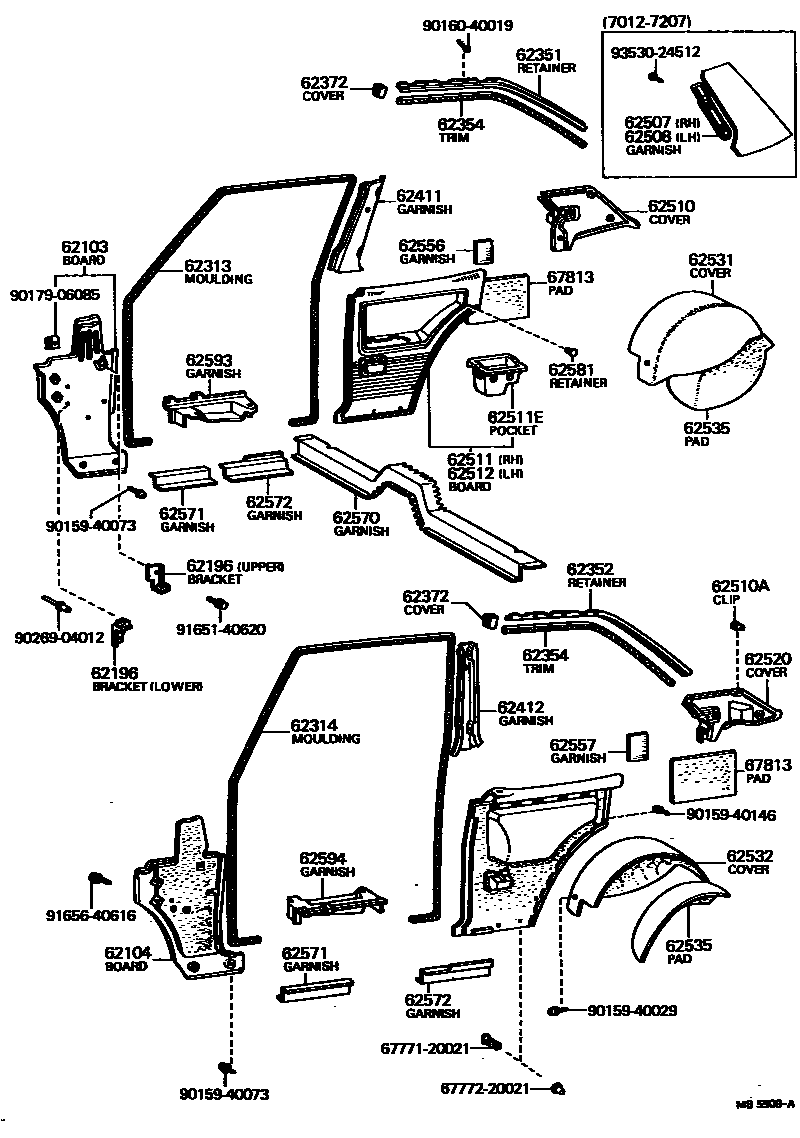

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
BLACK,BLACK,TRIM0#,2#,4#
BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM0#,2#,4#
BROWN,BROWN,TRIM0#,4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
BLACK,BLACK,TRIM0#,2#,4#
BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM0#,2#,4#
BROWN,BROWN,TRIM0#,4#
62196BRACKET, FUSE BLOCK, LOWER
UPPER
UPPER
LOWER
LOWER
62313MOULDING, FRONT DOOR OPENING TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE
BROWN,BROWN,TRIM4#
OLIVE- BROWN,GREEN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62314MOULDING, FRONT DOOR OPENING TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE
BROWN,BROWN,TRIM4#
OLIVE- BROWN,GREEN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62351RETAINER, QUARTER WINDOW INSIDE TRIM, RH
62352RETAINER, QUARTER WINDOW INSIDE TRIM, LH
62354TRIM, QUARTER WINDOW, INSIDE
RH.
LH.
62372COVER, QUARTER WINDOW INSIDE TRIM
62411GARNISH, CENTER PILLAR, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
62412GARNISH, CENTER PILLAR, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
62507GARNISH SUB-ASSY, REAR BODY PILLAR, RH
62508GARNISH SUB-ASSY, REAR BODY PILLAR, LH
62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM0#,4#
62510ACLIP, BACK WINDOW SIDE GARNISH COVER
62511BOARD, QUARTER INSIDE TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62511EPOCKET, QUARTER TRIM
62512BOARD, QUARTER INSIDE TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM0#,4#
62531COVER, WHEEL HOUSE TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62532COVER, WHEEL HOUSE TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62556GARNISH, QUARTER WINDOW LOWER, RH
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62557GARNISH, QUARTER WINDOW LOWER, LH
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
62570GARNISH ASSY, CENTER FLOOR CROSSMEMBER
FOR CARPET,BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
FOR CARPET,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM0#,4#
OLIVE,GREEN,TRIM4#
FOR CARPET,OLIVE- BROWN,BROWN,TRIM4#
FOR CARPET,BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM0#,4#
FOR MAT
62571GARNISH, ROCKER PANEL INNER, FRONT
FOR MAT
62572GARNISH, ROCKER PANEL INNER, REAR
RH. FOR MAT
RH. BLACK,BLACK,TRIM2#
RH. BLACK,FOR CARPET,BLACK,TRIM2#
RH. BLUE, FOR CARPET,BLUE,TRIM8#
RH. BLUE,BLUE,TRIM8#
RH. BROWN,BROWN,TRIM0#,4#
RH. OLIVE,GREEN,TRIM4#
RH. OLIVE-BROWN,FOR CARPET,BROWN,TRIM4#
RH. BROWN,FOR CARPET,BROWN,TRIM0#,4#
LH. FOR MAT
LH. BLACK,FOR CARPET,BLACK,TRIM2#
LH. BLACK,BLACK,TRIM2#
LH. BLUE, FOR CARPET,BLUE,TRIM8#
LH. BLUE,BLUE,TRIM8#
LH. BROWN,BROWN,TRIM0#,4#
LH. OLIVE,GREEN,TRIM4#
LH. OLIVE-BROWN,FOR CARPET,BROWN,TRIM4#
LH. BROWN,FOR CARPET,BROWN,TRIM0#,4#
62581RETAINER, QUARTER TRIM
62593GARNISH, FRONT SEAT BRACKET, RH
62594GARNISH, FRONT SEAT BRACKET, LH
67813PAD, QUARTER PANEL SILENCER
sub67812-12010
6777120021WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20021
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9015940029
main90159-40029
9015940073
main90159-40073
9015940146
main90159-40146
9016040019
main90160-40019
9017906085
main90179-06085
9026904012
main90269-04012
9165140620
main91651-40620
9165640616
main91656-40616
9353024512
main93530-24512
42 parts on this diagram · 4 diagrams in section
