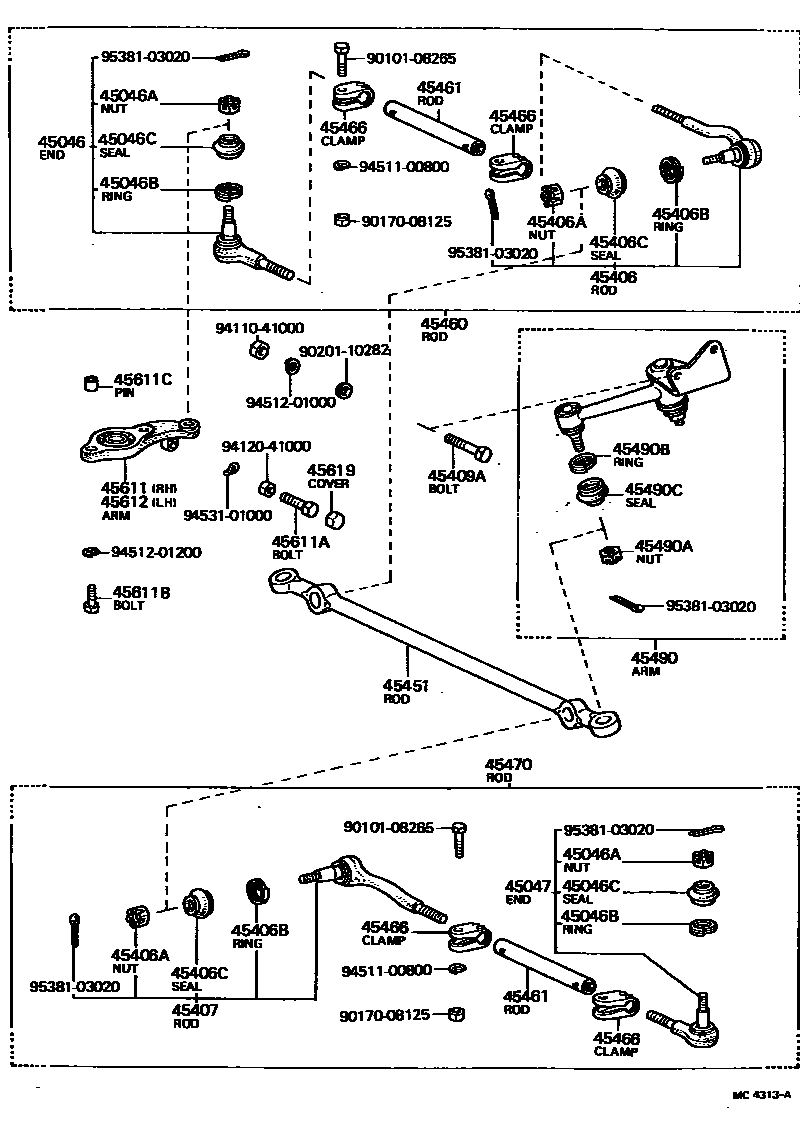

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45046BRING, SET(FOR TIE ROD END DUST SEAL)
45046CSEAL, DUST(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45406ANUT, CASTLE(FOR TIE ROD)
45406BRING, SET(FOR TIE ROD DUST SEAL)
45406CSEAL, DUST(FOR TIE ROD)
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
45451ROD, STEERING RELAY
45466CLAMP, TIE ROD END
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45490BRING, SET(FOR IDLER ARM)
45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
9010108265
main90101-08265
9017008125
main90170-08125
9020110282
main90201-10282
9411041000
main94110-41000
9412041000
main94120-41000
9451100800
main94511-00800
9451201000
main94512-01000
9451201200
main94512-01200
9453101000
main94531-01000
9538103020
main95381-03020
36 parts on this diagram · 3 diagrams in section
