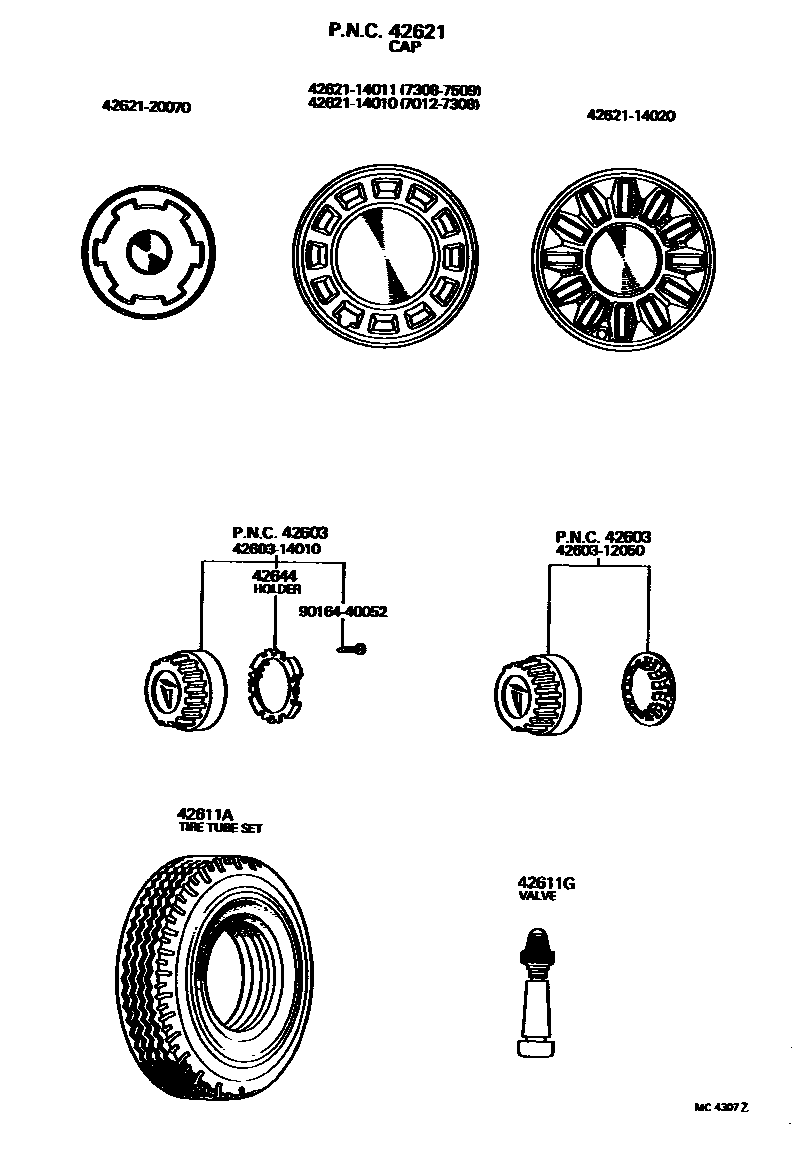

DISC WHEEL & WHEEL CAP

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050iTA14..DLX,STD197510-197707

FOR SEMI-STYLED WHEEL

main42603-14010iTA14..LHD197510-197707

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-14010iTA12;TA10..4D197105-197205

165SR13,RADIAL

main42605-14060iTA1#..DLX,STD197401-197509

5.60-13-4,W/TUBE

main42605-14070iTA1#..DLX,STD197401-197509

5.60-13-4,W/TUBE,WSW.

main42605-14090iTA12..STD197401-197509

6.45S13-4,W/TUBE,BLACK

main42605-14110iTA12..4F197405-197509

6.45S13-4,W/TUBE,WSW.

main42605-14130iTA12..LHD..MTM197401-197509

165SR13,Y-417C,W/TUBE

main42605-14140iTA12..4F197405-197509

6.45S13-4,W/TUBE,BLACK

main42605-14150iTA12..RHD..4F..DLX197410-197707

165SR13,W/TUBE,ENGLAND SPEC.

main42605-22010iTA1#197012-197207

6.45S13-4,WSW.

main42605-22020iTA1#197012-197207

6.45S13-4

main42605-22040iTA12..RHD..DLX197110-197401

6.45S13-4,W/TUBE,WSW.

main42605-22041iTA1#197401-197509

6.45S13-4,W/TUBE,WSW.

main42605-22060iTA1#197204-197401

165SR13,W/TUBE

main42605-22060iTA12;TA10..4D197012-197105

165SR-13

main42605-22100iTA1#197205-197509

165SR13,W/TUBE

main42652-14040iTA12..STD197401-197509

5.60-13-4,TUBELESS,BLACK

main42652-14050iTA1#..DLX,STD197401-197509

5.60-13-4,TUBELESS,WSW.

main42652-14060iTA12..STD197401-197509

6.45S13-4,TUBELESS,BLACK

main42652-14140iTA14197607-197707

165SR13,T/L. STEEL RADIAL

main42652-22010iTA12;TA10..4D197012-197207

165S13-4,TUBELESS,WSW.

main42652-22020iTA12;TA10..4D197012-197207

165S13-4,TUBELESS,C-41

main42652-22030iTA1#197012-197207

6.45S13-4,WSW.

main42652-22040iTA12;TA10..4D197012-197207

165S13-48TUBELESS,G-8

main42652-22080iTA14..4F197510-197707

6.45-13-4,TUBELESS,WSW.

main42652-22090iTA14..4F197510-197707

6.45-13-4,TUBELESS,BLACK

main42652-22120iTA1#..DLX,STD197401-197509

6.45S13-4,TUBELESS,WSW.

main42652-22240iTA14..LHD..3FC197703-197707

175SR14,T/L AUSTRIA SPEC.

main98011-56132iTA12..STD197012-197401

5.60-13-4,W/TUBE

main98011-56133iTA12..4F197405-197509

5.60-13-6,W/TUBE,BLACK

main98013-56132iTA1#..DLX,STD197012-197401

5.60-13-4,W/TUBE,WSW.

main98013-56133iTA12..4F197405-197509

6.00-13-6,W/TUBE,WSW.

main98014-56133iTA1#197012-197207

5.60-13-6

main98021-64133iTA14..RHD..4F197510-197707

6.45-13-6,W/T.BLACK,THAILAND

main98023-64133iTA14..RHD..4F197510-197707

6.45-13-6,W/TUBE,WSW,THAILAND

main98031-64132iTA12..STD197208-197401

6.45S13-4,W/TUBE

main98038-65130iTA1#..LHD197012-197401

165SR13,W/TUBE

main98511-56132iTA12..STD197208-197401

5.60-13-4,TUBELESS

main98513-56132iTA1#..DLX,STD197208-197401

5.60-13-4,TUBELESS

main98513-64132iTA12..RHD..DLX197110-197207

6.45-13-4,TUBELESS

main98531-64132iTA12..STD197208-197401

6.45S13-4,TUBELESS

main98533-64132iTA1#..DLX,STD197208-197401

6.45S13-4,TUBELESS

main98921-64132iTA14..4F197510-197707

6.45-13-4,W/TUBE,BLACK

main98923-64132iTA14..4F197510-197707

6.45-13-4,W/TUBE,WSW.

main98938-65130iTA1#197205-197707

165SR13,W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iTA1#..DLX,STD197012-197707

42621CAP, WHEEL

main42621-14010iTA12..DLX;TA12..LHD..4F..STD..2D197012-197308

main42621-14011iTA12..DLX;TA12..LHD..4F..STD..2D197308-197509

main42621-14020iTA12..ST197208-197509

main42621-20070iTA1#..STD197012-197509

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14021iTA14..LHD197510-197707

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260314010ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14010

4262114010CAP, WHEEL

main42621-14010

4262114011CAP, WHEEL

main42621-14011

4262114020CAP, WHEEL

main42621-14020

4262120070CAP, WHEEL

main42621-20070

9016440052

main90164-40052

12 parts on this diagram · 1 diagram in section
