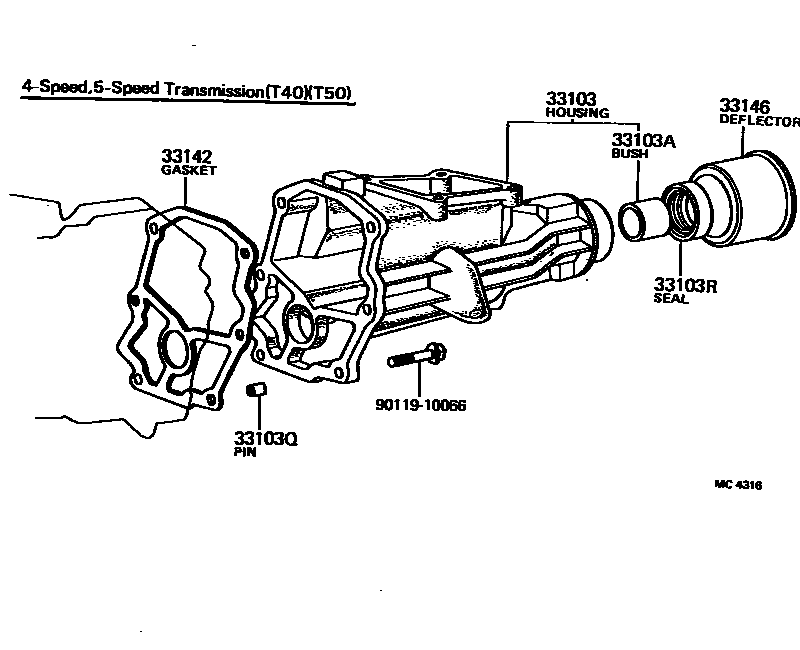

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14010iTA1#..MTM197012-197707

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iTA1#..MTM197012-197707

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iTA1#..MTM197012-197707

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32086iTA1#..MTM197012-197707

TC 32 52 11

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iTA1#..MTM197012-197707

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iTA1#..MTM197012-197707

9011910066

main90119-10066

7 parts on this diagram · 1 diagram in section
