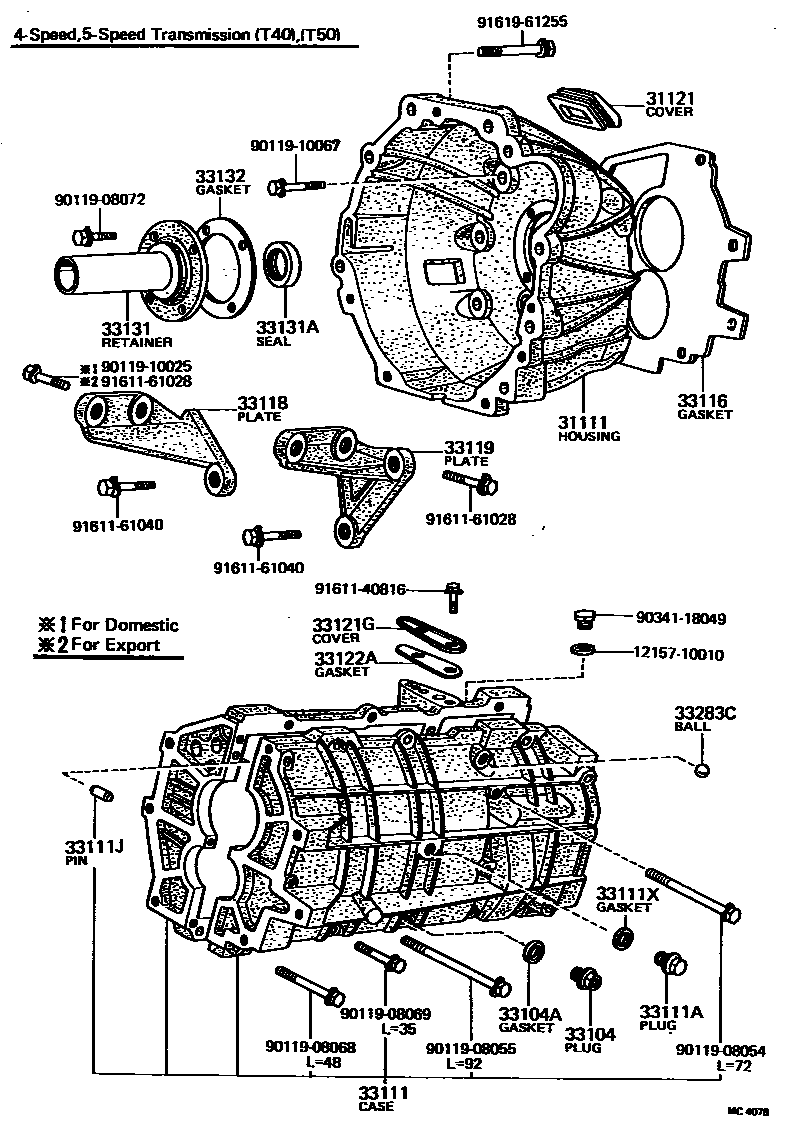

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31121COVER, CLUTCH HOUSING, NO.1
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=8
33111XGASKET, TRANSMISSION CASE PLUG
33116GASKET, MANUAL TRANSMISSION CASE
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33121GCOVER, MANUAL TRANSMISSION CASE
33122AGASKET, MANUAL TRANSMISSION CASE COVER
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
TC3 25 38 7
33132GASKET, FRONT BEARING RETAINER(MTM)
33283CBALL, REVERSE RESTRICT
1215710010GASKET, DRAIN PLUG(FOR OIL STRAINER COVER)
main12157-10010
9011908054
main90119-08054
9011908055
main90119-08055
9011908068
main90119-08068
9011908069
main90119-08069
9011908072
main90119-08072
9011910025
main90119-10025
9011910067
main90119-10067
9034118049
main90341-18049
9161140816
main91611-40816
9161161028
main91611-61028
9161161040
main91611-61040
9161961255
main91619-61255
30 parts on this diagram · 1 diagram in section
