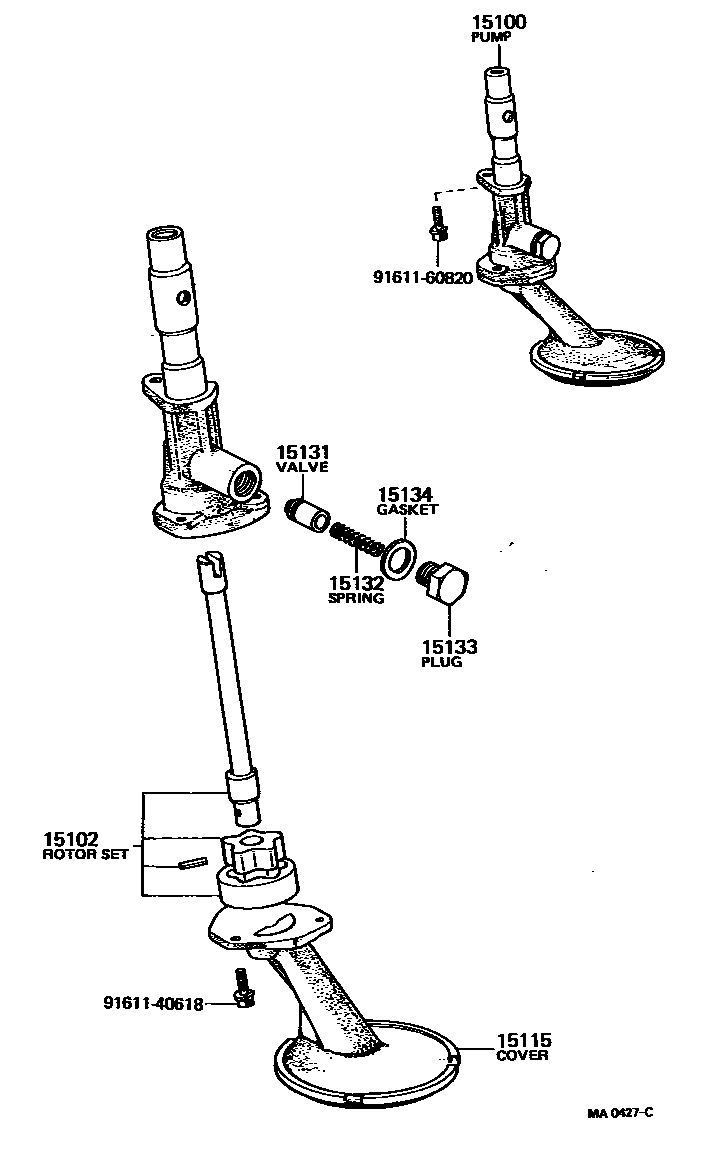

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-25011iT,2T..TA1#197012-197203

main15100-25012iT,2T#..TA1#197203-197509

main15100-25020i2T#..TA14197510-197707

15102ROTOR SET, OIL PUMP

main15102-25010iT,2T#..TA1#197012-197707

15115COVER, OIL PUMP

main15012-25010iT,2T..TA1#197012-197203

main15012-25011iT,2T#..TA1#197203-197509

main15012-25020i2T#..TA14197510-197707

15131VALVE, OIL PUMP RELIEF

main15131-22010iT,2T#..TA1#197012-197707

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010iT,2T#..TA1#197012-197707

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iT,2T#..TA1#197012-197707

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iT,2T#..TA1#197012-197707

9161140618

main91611-40618

9161160820

main91611-60820

9 parts on this diagram · 1 diagram in section
