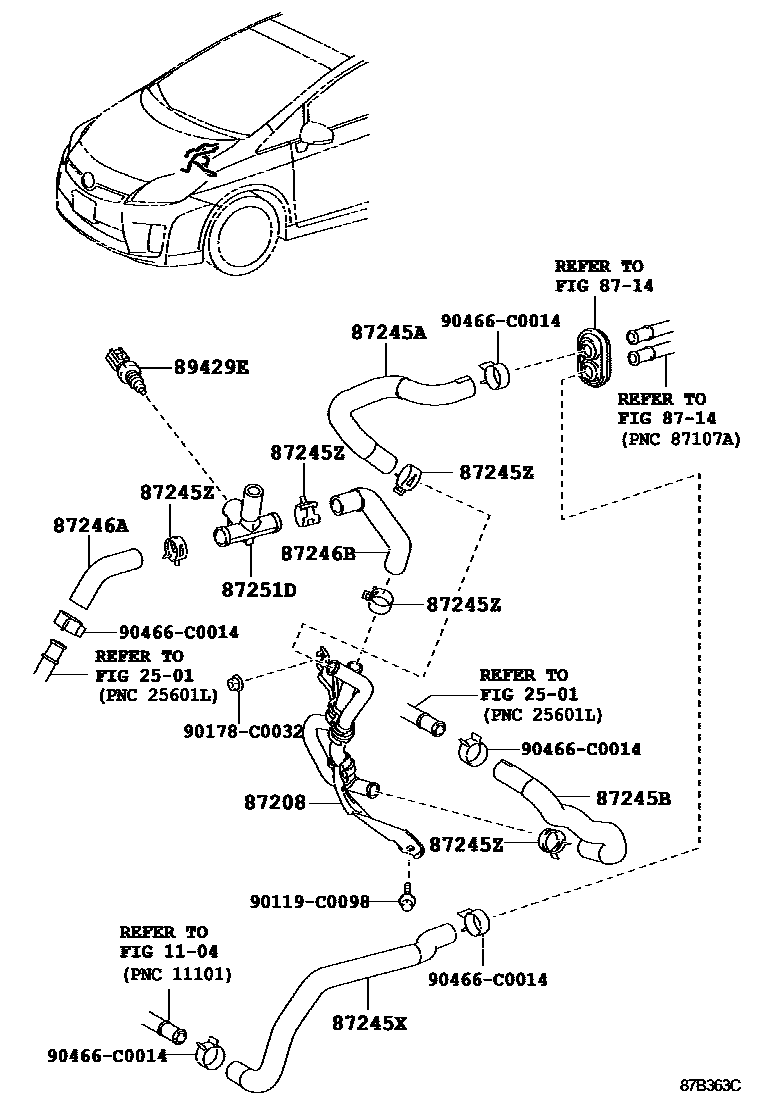

Toyota 161230 — HEATING & AIR CONDITIONING - WATER PIPING
1104CYLINDER HEAD
2501EXHAUST GAS RECIRCULATION SYSTEM
8714HEATING & AIR CONDITIONING - COOLER UNIT
87208PIPE SUB-ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87245XHOSE, HEATER WATER
87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)
87246AHOSE, HEATER WATER, OUTLET A
87246BHOSE, HEATER WATER, OUTLET B
87251DJOINT, WATER, NO.1
89429ESENSOR, WATER TEMPERATURE
90119C0098
90178C0032
90466C0014
15 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota 161230
This section contains 15 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota 161230. Key components include: CYLINDER HEAD, EXHAUST GAS RECIRCULATION SYSTEM, HEATING & AIR CONDITIONING - COOLER UNIT, PIPE SUB-ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A.
