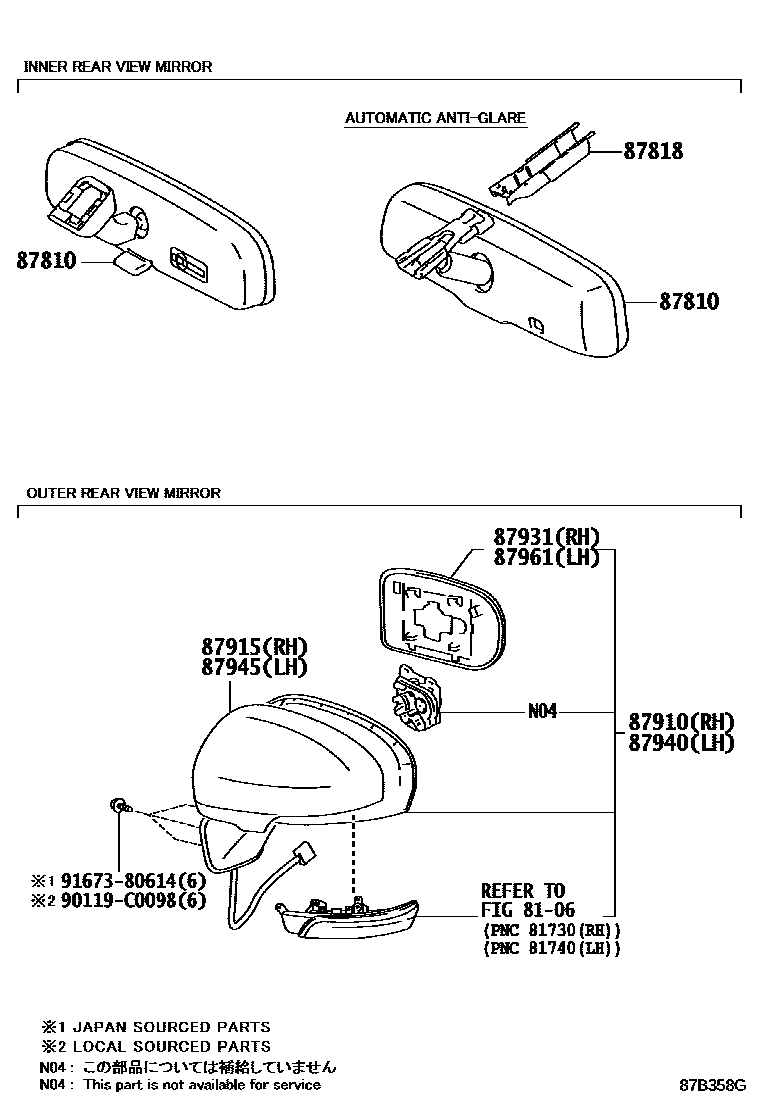

MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W260supersedes 87810-60191iZVW30201112

DELUXE ADVANCE

87818COVER, INNER RR VIEW MIRROR

main87818-47010iZVW30201112

DELUXE ADVANCE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-47350iZVW30201112-201510

NO PAINT REQ.

sub87910-47351

87915COVER, OUTER MIRROR, RH

main87915-74010-A3iZVW30201112-201510

WHITE,056

main87915-74010-B2iZVW30201112-201510

SILVER ME.,1C0

main87915-74010-C0iZVW30201112-201510

BLACK,202

87931OUTER MIRROR, RH

main87931-47190iZVW30201112-201510

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-47350iZVW30201112-201510

NO PAINT REQ.

sub87940-47351

87945COVER, OUTER MIRROR, LH

main87945-74010-A3iZVW30201112-201510

WHITE,056

main87945-74010-B2iZVW30201112-201510

SILVER ME.,1C0

main87945-74010-C0iZVW30201112-201510

BLACK,202

87961MIRROR OUTER, LH

main87961-47190iZVW30201112-201510

90119C0098

main90119-C0098

9167380614

main91673-80614

11 parts on this diagram · 1 diagram in section
