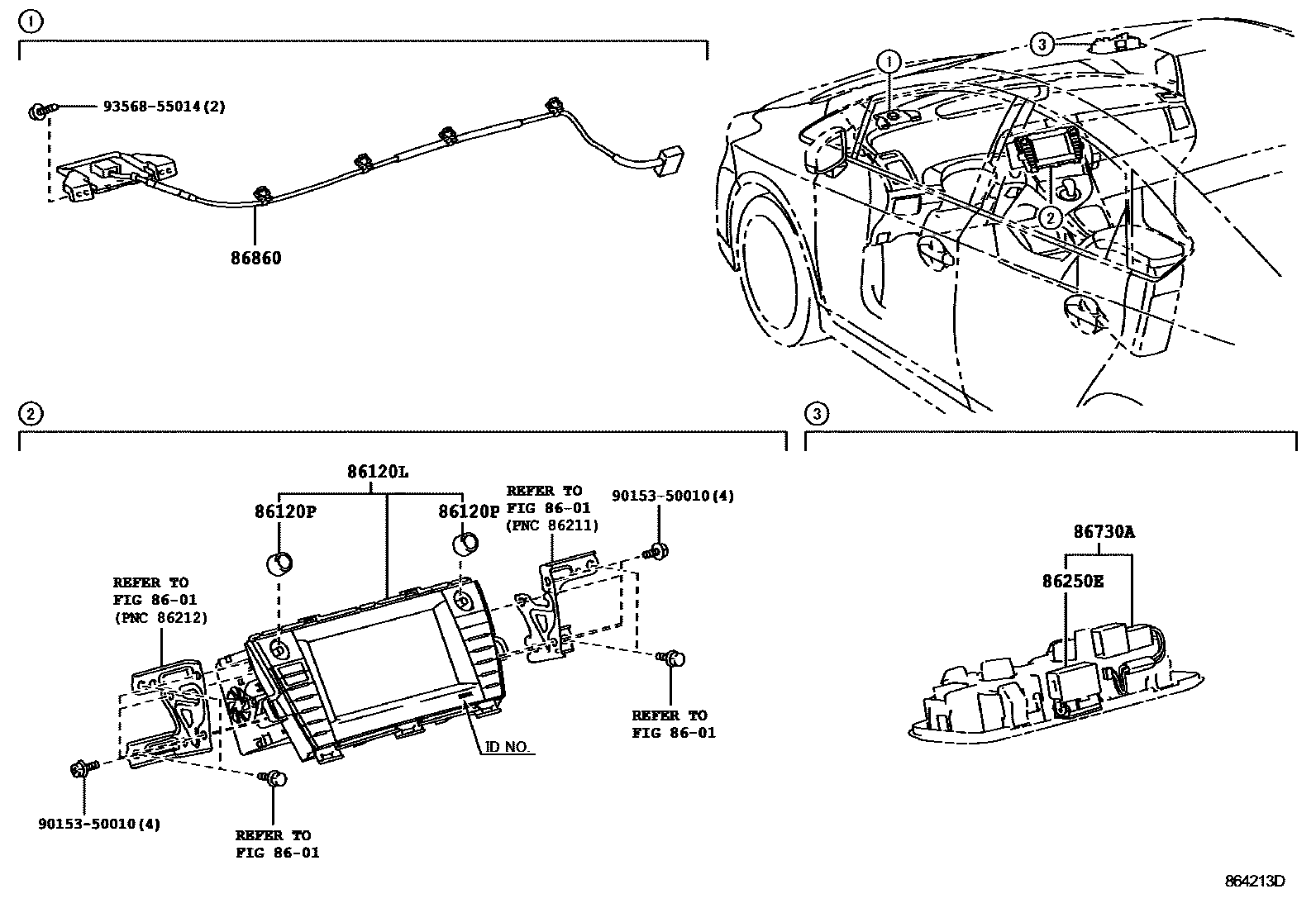

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86100-0Q020iZVW30201112-201204

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q021iZVW30201205-201209

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q022iZVW30201210-201304

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q023iZVW30201305-201309

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q024iZVW30201310-201404

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q025iZVW30201405-201409

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q026iZVW30201410-201504

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

main86100-0Q027iZVW30201505-201509

DENSO,ID=E8044,DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

sub86100-0Q028

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90011-25210×2iZVW30201112-201510

DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iZVW30201112

MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AVN 6SPEAKER BLUETOOTH

86730AMICROPHONE ASSY, TELEPHONE

main86730-20050iZVW30201112-201510

AUDIO-AVN 6SPEAKER BLUETOOTH

main86730-48040iZVW30201112-201510

MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AVN 6SPEAKER BLUETOOTH

86860ANTENNA ASSY, NAVIGATION

main86860-47070iZVW30201112

DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH

9015350010

main90153-50010

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
