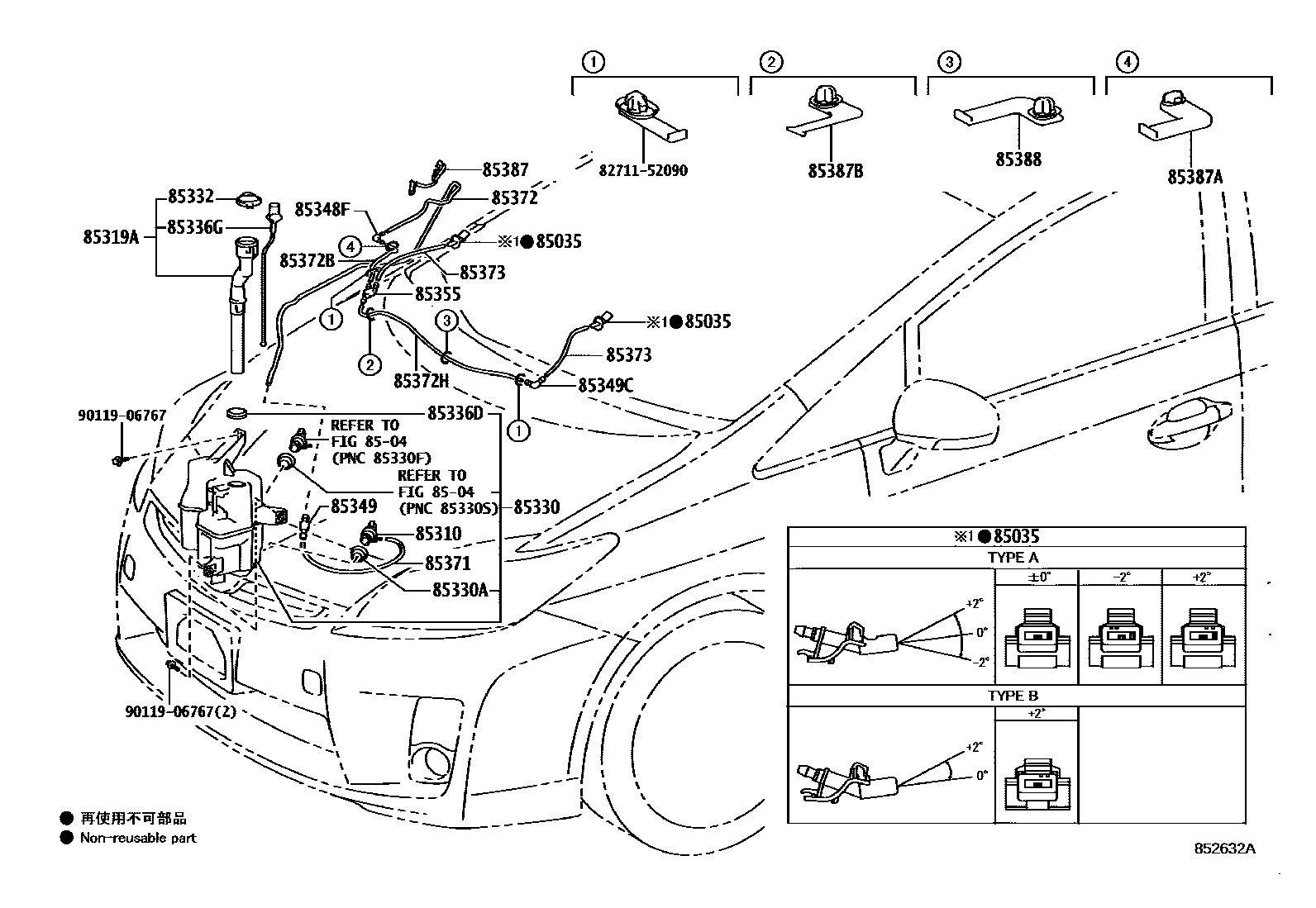

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12320×2iZVW30201112

ANGLE +2,TYPE B:REFER ILLUST.

main85381-12330×2iZVW30201112

ANGLE 0,TYPE A:REFER ILLUST.

main85381-12340×2iZVW30201112

ANGLE -2,TYPE A:REFER ILLUST.

main85381-12350×2iZVW30201112

TYPE A:REFER ILLUST.

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iZVW30201112

85319AHOSE, INLET

main85319-47120iZVW30201112-201311

main85319-47121iZVW30201311

85330JAR ASSY, WINDSHIELD WASHER

main85315-47140iZVW30201112

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iZVW30201112

85332CAP, WINDSHIELD WASHER JAR

main85316-47120iZVW30201311

main85386-60060iZVW30201112-201311

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iZVW30201112

85336GGAGE, WATER LEVEL

main85318-47110iZVW30201112

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200iZVW30201112

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZVW30201112

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-20200iZVW30201112

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iZVW30201112

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62091iZVW30201112

L=470

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iZVW30201112

L=1450(*H,L=1380)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iZVW30201112

L=1450(*H,L=300)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZVW30201112

L=1450(*H,L=830)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZVW30201112

L=1450(*H,L=250)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-47110iZVW30201112

85387ACLAMP, WASHER, NO.2

main82711-2B780iZVW30201112

85387BCLAMP, WASHER, NO.3

main82711-2C160iZVW30201112

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-2C170iZVW30201112

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

24 parts on this diagram · 1 diagram in section
