SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1DOOR,ROOF,FLOOR & LUGGAGE

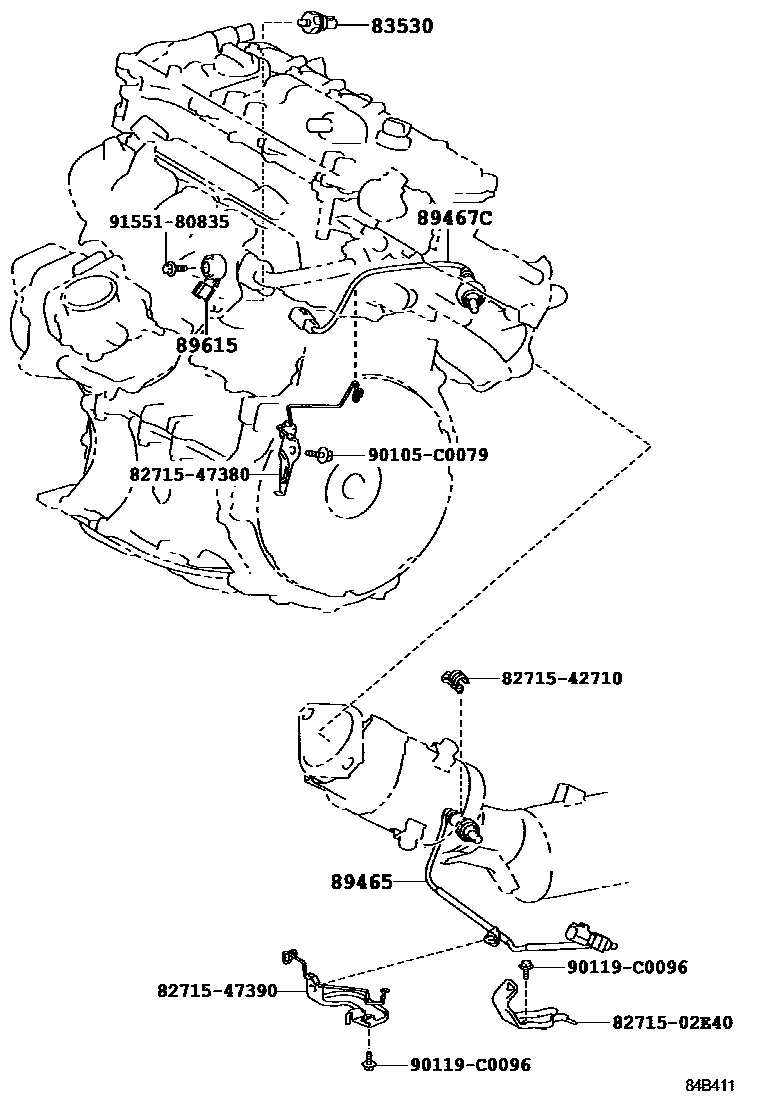

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZVW30201310-201402

YAZAKI

sub83530-12060

main83530-28020iZVW30201112

DENSO

main83530-60020iZVW30201112-201310

YAZAKI

89465SENSOR, OXYGEN

main89465-0Q010iZVW30201112

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52060iZVW30201112

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW30201112

8271502E40BRACKET,WIRING HARNESS CLAMP

main82715-02E40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

90105C0079

main90105-C0079

90119C0096

main90119-C0096

9155180835

main91551-80835

11 parts on this diagram · 6 diagrams in section
