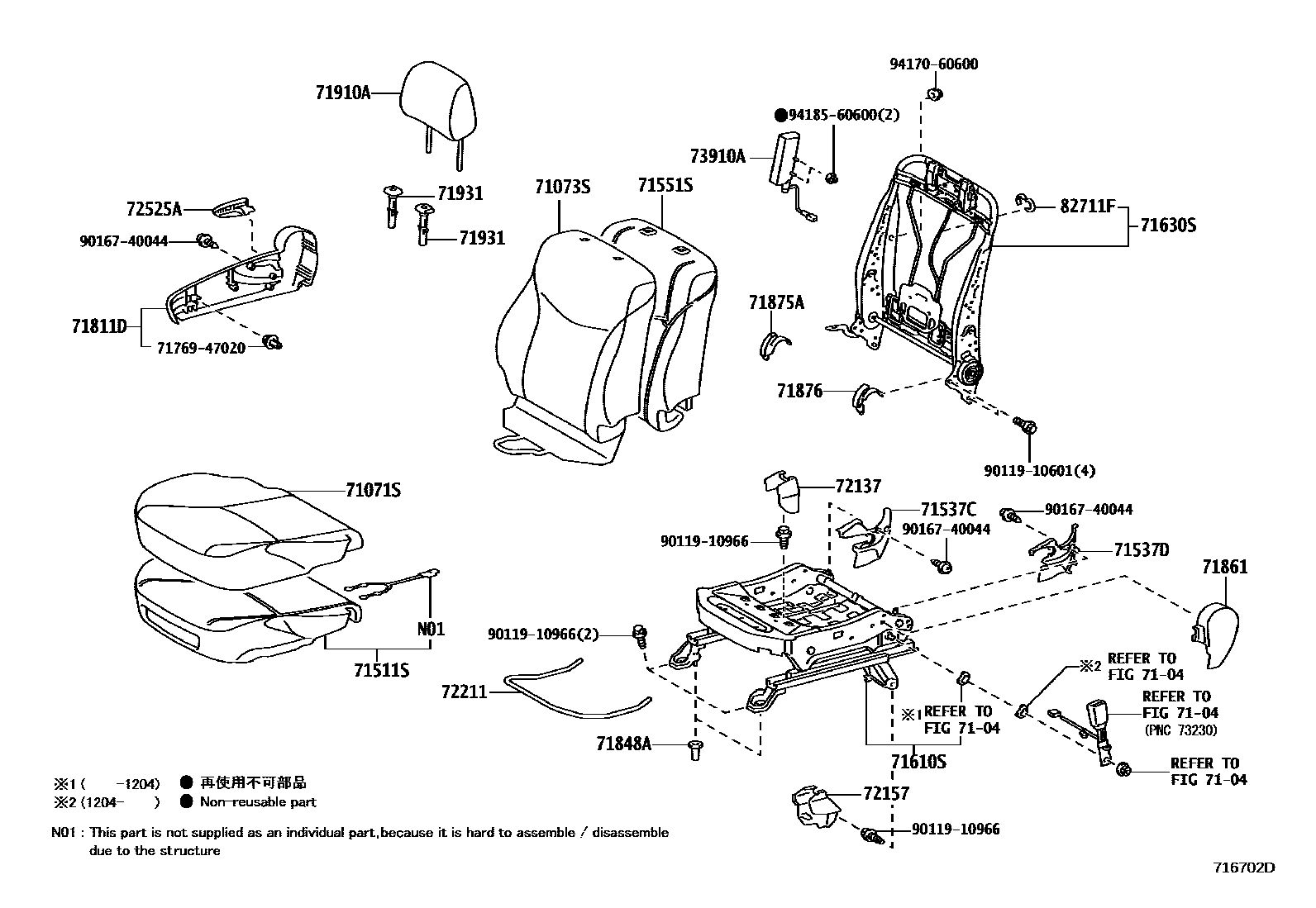

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH POWER SEAT 0003 1LH SEAT

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0Q010-C3supersedes 71071-0Q020-B2iZVW30201112-201510

DELUXE&SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0Q010-C2supersedes 71073-0Q020-B0iZVW30201112-201510

DELUXE&SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-0Q020iZVW30201112

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47020-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47020-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-0Q010iZVW30201112

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-47190iZVW30201112-201204

sub73214-75010

main71610-47191iZVW30201204

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-47030iZVW30201112

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47080-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47010×2iZVW30201112

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47060-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47030-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-B0iZVW30201112-201510

MD.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-0Q010-C2×2supersedes 71910-0Q021-B0iZVW30201112-201503

DELUXE&SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

main71910-0Q011-C2×2supersedes 71910-0Q021-B0iZVW30201504-201510

DELUXE&SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-B0×2iZVW30201112-201510

W(LOCK),MD.GRAY,TRIM1#

main71931-47020-B0×2iZVW30201112-201510

W/O(LOCK),MD.GRAY,TRIM1#

72137COVER, SEAT TRACK, OUTER RH

main72137-47040-B0iZVW30201112-201510

MD.GRAY,TRIM1#

72157COVER, SEAT TRACK BRACKET, INNER

main72157-47040-B0iZVW30201112-201510

MD.GRAY,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47020iZVW30201112

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-B0iZVW30201112-201510

MD.GRAY,TRIM1#

sub72525-52050

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47050iZVW30201112

82711FCLAMP, WIRING HARNESS

main82711-12120iZVW30201112

7176947020COVER, FRONT SEAT UNDER TRAY BRACKET

main71769-47020

9011910601

main90119-10601

9011910966

main90119-10966

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

28 parts on this diagram · 3 diagrams in section
