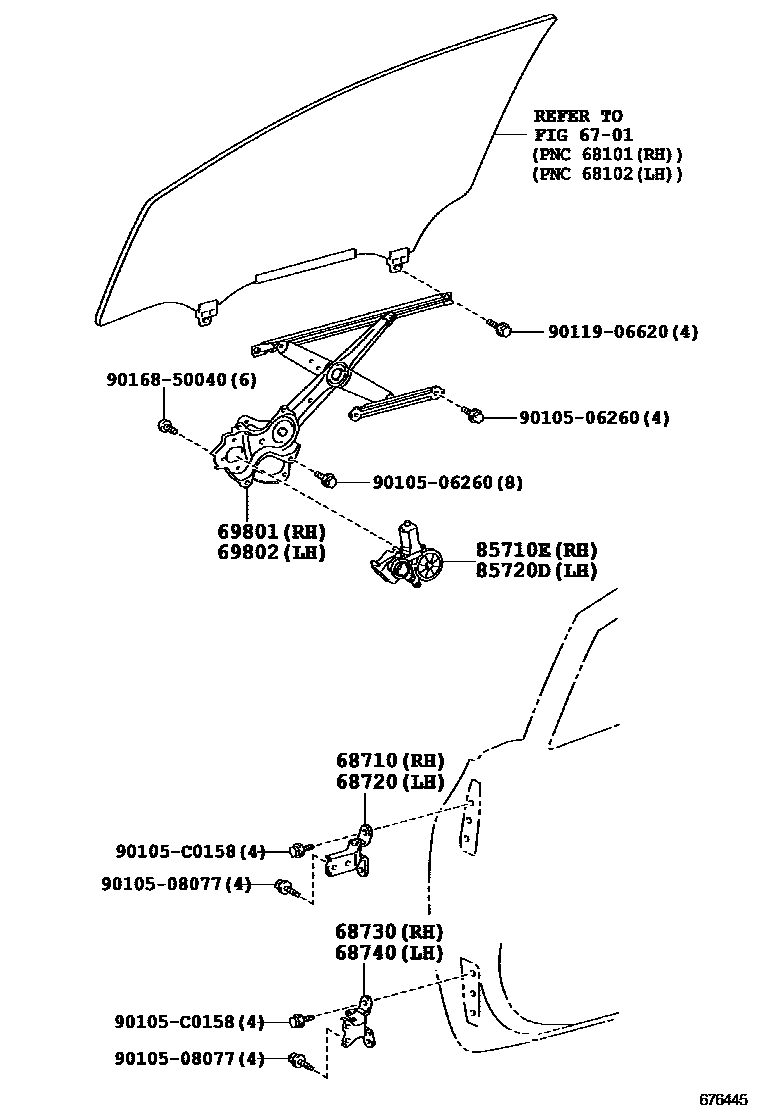

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iZVW30201112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iZVW30201112

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iZVW30201112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iZVW30201112

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070iZVW30201112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070iZVW30201112

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12460iZVW30201112-201206

main85710-47100iZVW30201206-201208

main85710-47110iZVW30201209

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12460iZVW30201112-201206

main85720-47100iZVW30201206-201208

main85720-47110iZVW30201209

9010506260

main90105-06260

9010508077

main90105-08077

90105C0158

main90105-C0158

9011906620

main90119-06620

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
