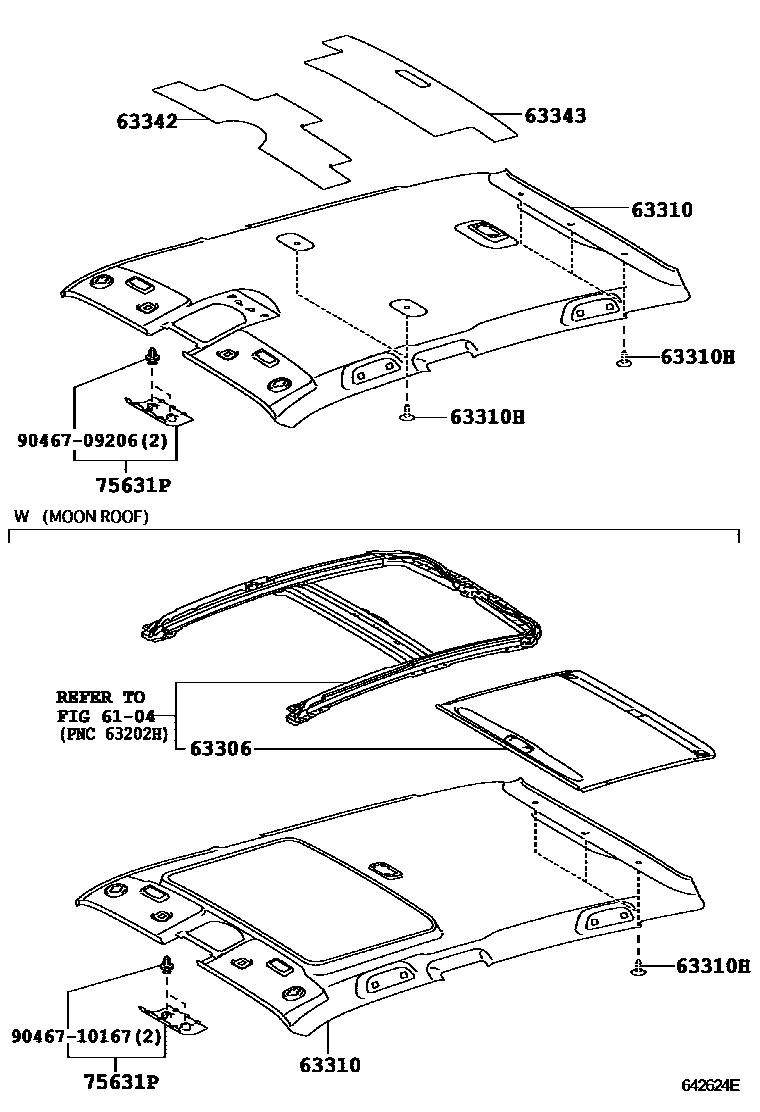

ROOF HEADLINING & SILENCER PAD

6104

63306TRIM SUB-ASSY, SUNSHADE

main63306-47030-B0iZVW30201112-201510

MOON ROOF-WITH(SOLAR PANEL),LT.GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-47150-B0supersedes 63310-47100-B0iZVW30201112-201510

MOON ROOF-WITH(SOLAR PANEL),LT.GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

63342PAD, ROOF SILENCER, NO.2

main63342-47130iZVW30201112

63343PAD, ROOF SILENCER, NO.3

main63343-47110iZVW30201112

75631PMOULDING, ROOF TOP

main75631-47010-B0supersedes 75631-47050-B0iZVW30201112-201510

DELUXE ADVANCE,LT.GRAY,TRIM1#

main75631-47030-B0supersedes 75631-47050-B0iZVW30201112-201510

DELUXE ADVANCE&MOON ROOF-WITH(SOLAR PANEL),LT.GRAY,TRIM1#

9046709206

main90467-09206

9046710167

main90467-10167

9 parts on this diagram · 1 diagram in section
