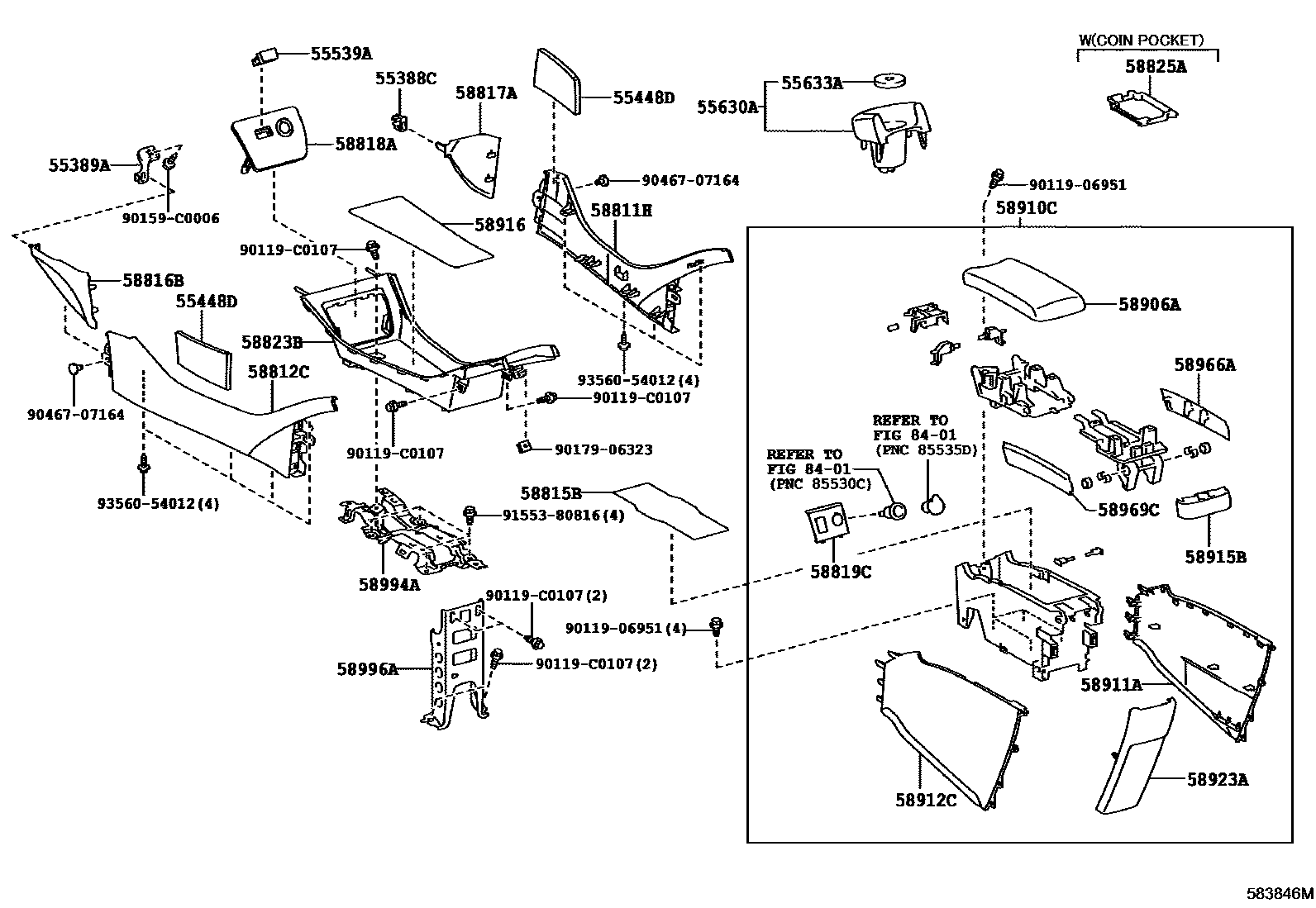

CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55539ACOVER, SPARE SWITCH HOLE
BLACK
55630AHOLDER, REAR CONSOLE BOX, CUP
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
58811HBOX, CONSOLE, RH
BLACK,TRIM1#
58812CBOX, CONSOLE, LH
BLACK,TRIM1#
58815BCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM1#
58819CFILLER, CONSOLE BOX, FRONT
58823BBOX, CONSOLE COMPARTMENT
BLACK,TRIM1#
58825APOCKET, CONSOLE BOX
COIN POCKET-WITH
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#
58910CBOX ASSY, CONSOLE, REAR
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#
sub58901-47221
58911APANEL, BOX SIDE, NO.1
58912CPANEL, BOX SIDE, NO.2
58915BCOVER, CONSOLE COMPARTMENT DOOR BOX, REAR
BLACK,TRIM1#
58916MAT, BOX BOTTOM
BLACK,TRIM1#
58923APANEL, CONSOLE REAR END
58966AINSERT, CONSOLE COMPARTMENT DOOR, NO.1
BLACK,TRIM1#
58969CINSERT, CONSOLE COMPARTMENT DOOR, NO.2
BLACK,TRIM1#
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8401
9011906951
main90119-06951
90119C0107
main90119-C0107
90159C0006
main90159-C0006
9017906323
main90179-06323
9046707164
main90467-07164
9155380816
main91553-80816
9356054012
main93560-54012
34 parts on this diagram · 1 diagram in section
