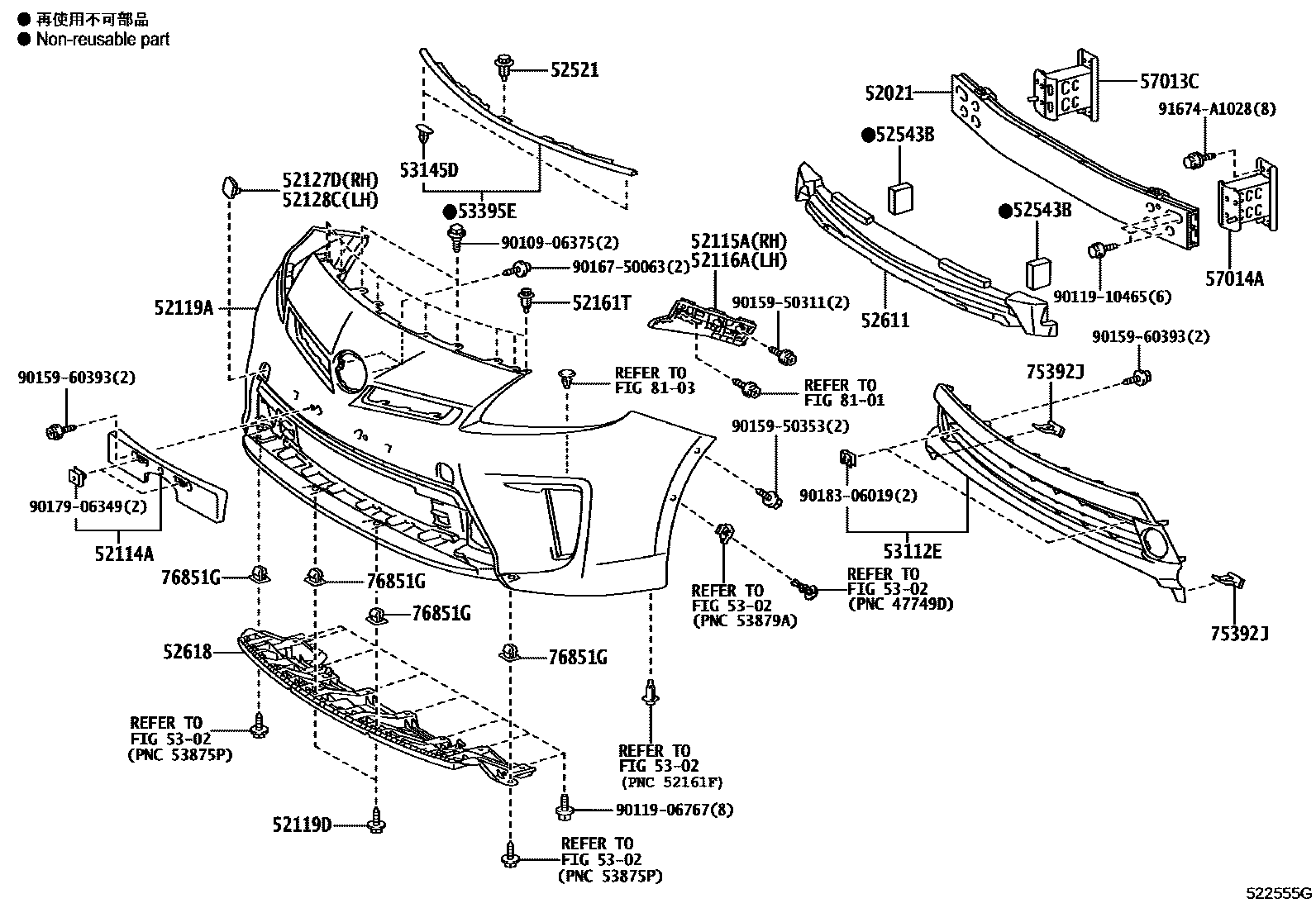

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-47023iZVW30201112

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47140iZVW30201112

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47040iZVW30201112-201402

main52115-47041iZVW30201403

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47040iZVW30201112-201402

main52116-47041iZVW30201403

52119ACOVER, FRONT BUMPER

main52119-47930iZVW30201112

PAINT REQ.

sub52119-47966

52119DSCREW, NO.1

main90159-60488×2iZVW30201112-201510

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-47903iZVW30201112-201510

sub52127-47908

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-47903iZVW30201112

sub52128-47907

52161TPIECE, FRONT BUMPER

main52161-02040×8iZVW30201112

52521RETAINER, FRONT BUMPER, UPPER CENTER

main90467-05063-C0iZVW30201112-201308

BLACK

main90467-C0017-C0iZVW30201309-201510

BLACK

52543BSEAL, FRONT BUMPER

main52543-47050×2iZVW30201112

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0Q020iZVW30201112

52618ABSORBER, FRONT BUMPER, LOWER

main52618-47050iZVW30201112

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-47020iZVW30201112

NO PAINT REQ.

53145DCLIP, RADIATOR GRILLE

main53145-60030×2iZVW30201112

53395ESEAL, HOOD TO FRONT END PANEL

main53395-47020iZVW30201112

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-47030iZVW30201112

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-47030iZVW30201112

75392JRETAINER, OUTSIDE MOULDING

main75392-35200×2iZVW30201112

76851GGROMMET, SCREW, NO.1

main90189-C0015×4iZVW30201309-201510

8101

8103

9010906375

main90109-06375

9011906767

main90119-06767

9011910465

main90119-10465

9015950311

main90159-50311

9015950353

main90159-50353

9015960393

main90159-60393

9016750063

main90167-50063

9017906349

main90179-06349

9018306019

main90183-06019

91674A1028

main91674-A1028

33 parts on this diagram · 1 diagram in section
