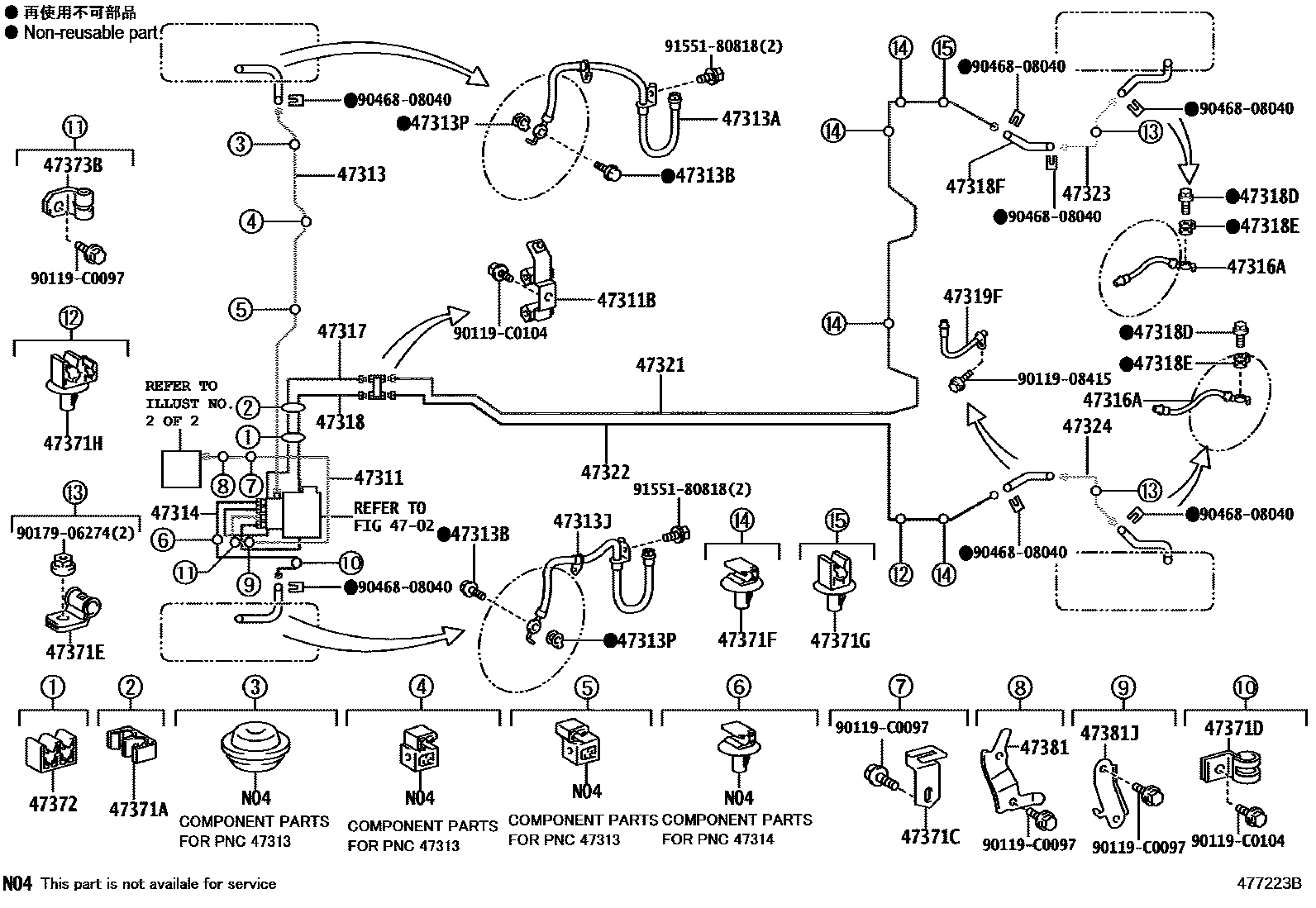

BRAKE TUBE & CLAMP

0001 1 0002 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-75020iZVW30201112

sub47311-76020

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZVW30201112

47313TUBE, FRONT BRAKE, NO.3

main47313-75020iZVW30201112

sub47313-75021

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G21iZVW30201112

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZVW30201112

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G22iZVW30201112

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZVW30201112

47314TUBE, FRONT BRAKE, NO.4

main47314-75020iZVW30201112

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02G25×2iZVW30201112

sub90947-02F87

47317TUBE, FRONT BRAKE, NO.7

main47317-75020iZVW30201112

47318TUBE, FRONT BRAKE, NO.8

main47318-75020iZVW30201112

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZVW30201112

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iZVW30201112

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G23iZVW30201112

sub90947-02F85

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G24iZVW30201112

sub90947-02F86

47321TUBE, REAR BRAKE, NO.1

main47321-47040iZVW30201112-201510

47322TUBE, REAR BRAKE, NO.2

main47322-47040iZVW30201112-201510

47323TUBE, REAR BRAKE, NO.3

main47323-02100iZVW30201112

sub47323-02150

47324TUBE, REAR BRAKE, NO.4

main47324-02100iZVW30201112

sub47324-02200

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iZVW30201112

47371CCLAMP, BRAKE TUBE, NO.7

main47371-47060iZVW30201112

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10781iZVW30201112

47371ECLAMP, BRAKE TUBE, NO.9

main90461-10837×2iZVW30201112

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×4iZVW30201112-201510

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iZVW30201112-201510

47371HCLAMP, BRAKE TUBE, NO.12

main77286-75020iZVW30201112-201510

47372CLAMP, BRAKE TUBE, NO.2

main90949-01972iZVW30201112

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10840iZVW30201112

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZVW30201112

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-75020iZVW30201112

9011908415

main90119-08415

90119C0097

main90119-C0097

90119C0104

main90119-C0104

9017906274

main90179-06274

9046808040

main90468-08040

9155180818

main91551-80818

37 parts on this diagram · 2 diagrams in section
