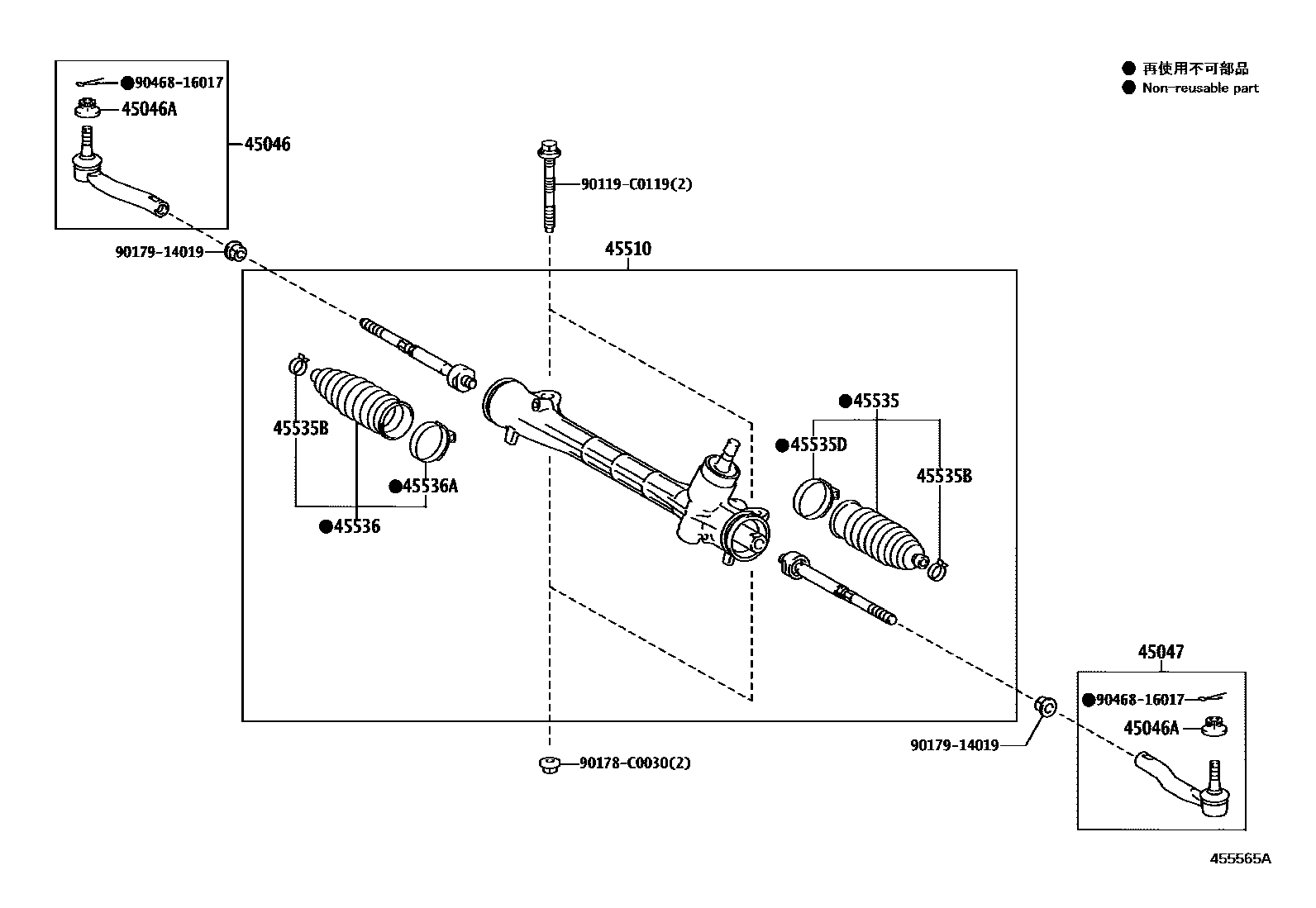

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZVW30201112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014×2iZVW30201112

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZVW30201112

45510GEAR ASSY, STEERING

main45510-47040iZVW30201112

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW30201112

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZVW30201112

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iZVW30201112

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW30201112

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iZVW30201112

90119C0119

main90119-C0119

90178C0030

main90178-C0030

9017914019

main90179-14019

9046816017

main90468-16017

13 parts on this diagram · 1 diagram in section
