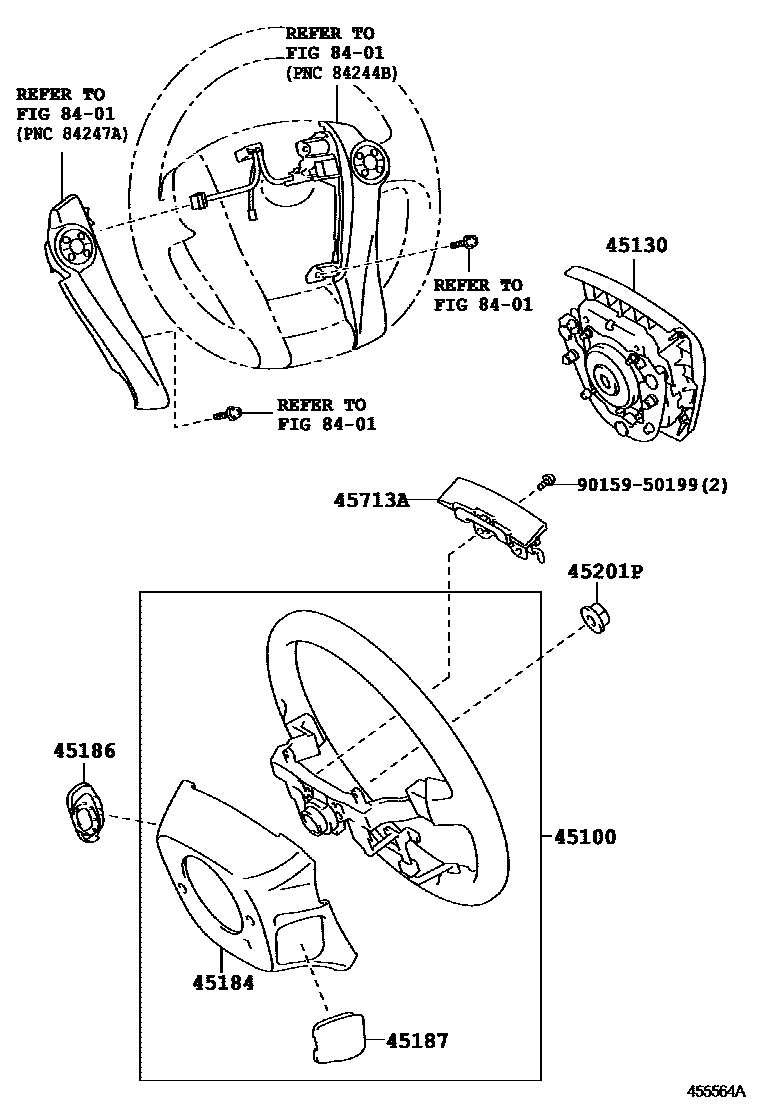

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47130-C0supersedes 45100-47120-C0iZVW30201112-201310

4-SPOKE,LEATHER,DELUXE ADVANCE,BLACK,TRIM1#

main45100-47210-C0supersedes 45100-47120-C0iZVW30201310-201510

4-SPOKE,LEATHER,DELUXE ADVANCE,BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-47100-C0iZVW30201112-201510

BLACK,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-C0iZVW30201112-201510

BLACK,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47030-C0iZVW30201112-201510

BLACK,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-C0iZVW30201112-201510

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90178-C0025iZVW30201112

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW30201112

8401

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
