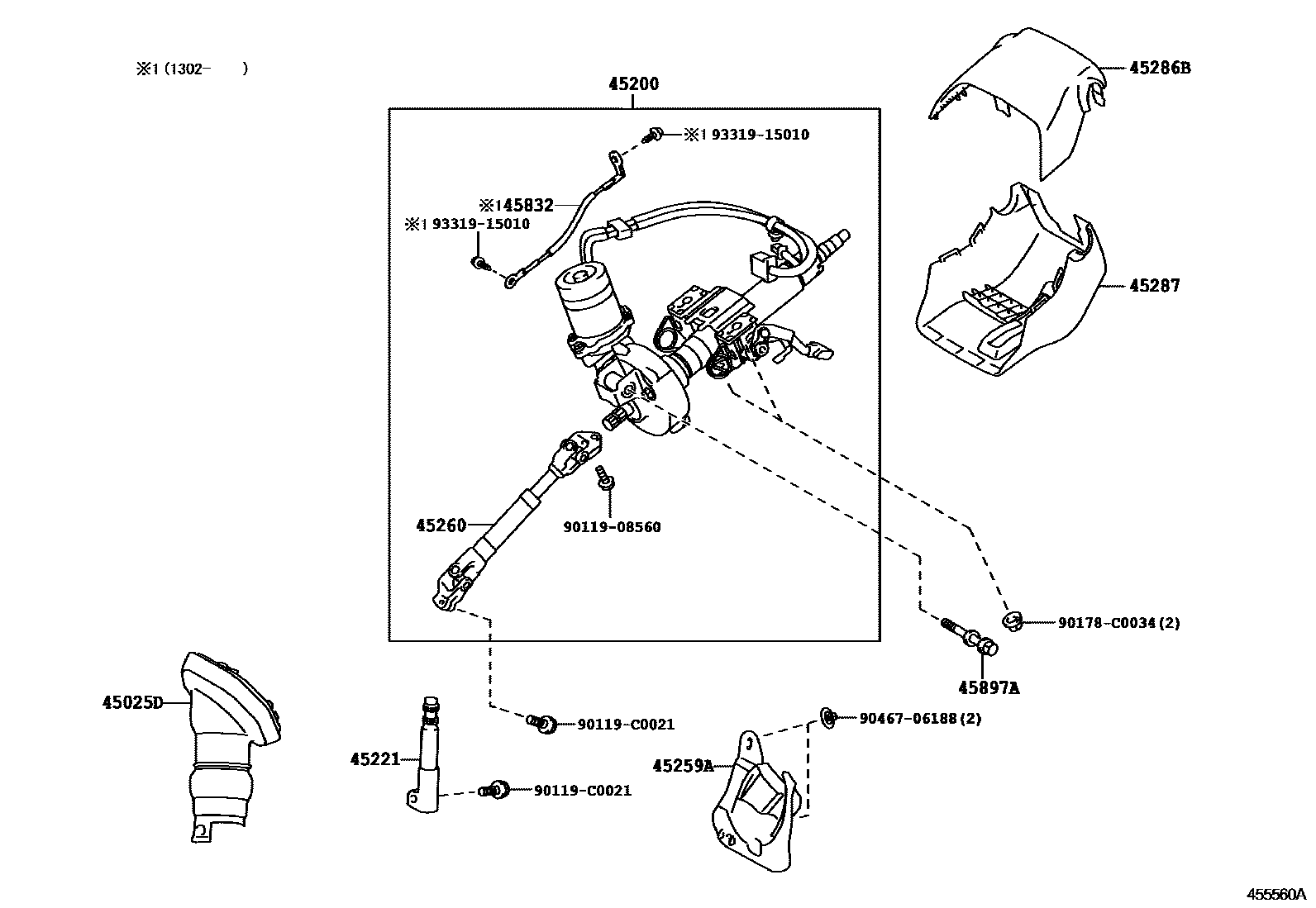

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12300iZVW30201112

45200POST ASSY, STEERING

main45200-0Q020iZVW30201112

45221SHAFT, STEERING INTERMEDIATE

main45221-02060iZVW30201112

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47030iZVW30201112

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02100iZVW30201112-201202

main45260-02180iZVW30201203

45286BCOVER, STEERING COLUMN, UPR

main45286-47040-C0iZVW30201112-201510

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-12590-C0iZVW30201112-201208

BLACK,TRIM1#

main45287-47090-C0iZVW30201209-201510

BLACK,TRIM1#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iZVW30201302

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW30201112

9011908560

main90119-08560

90119C0021

main90119-C0021

90178C0034

main90178-C0034

9046706188

main90467-06188

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
