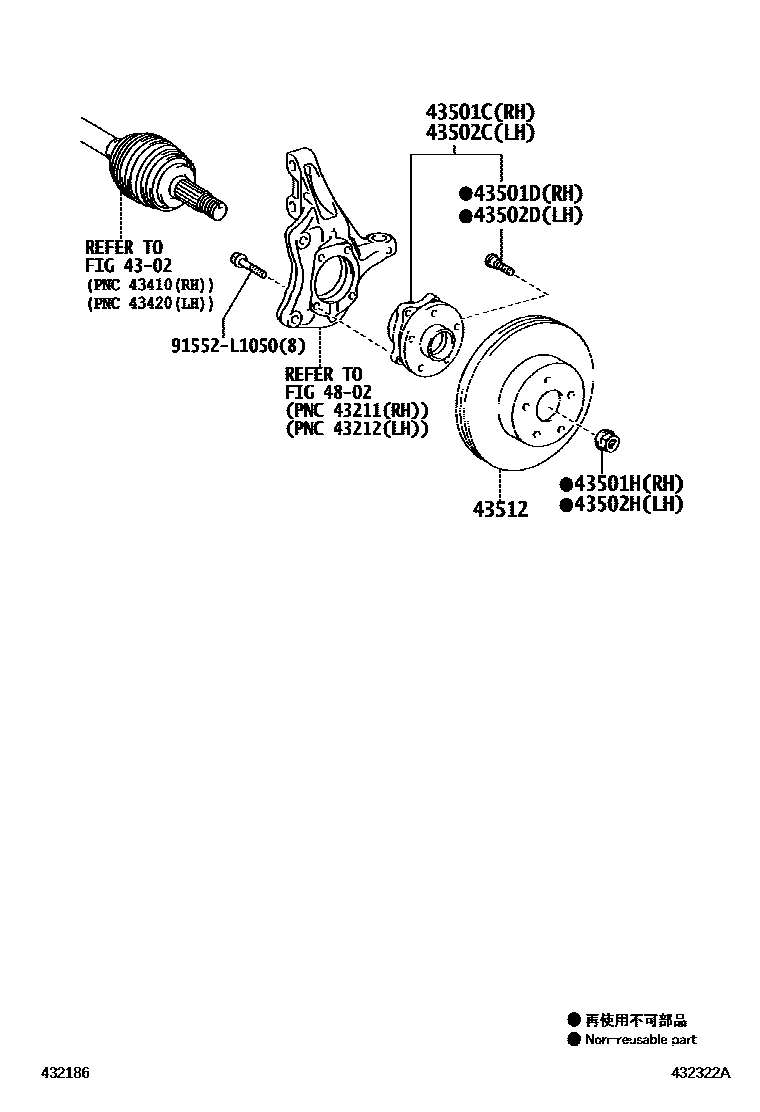

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010iZVW30201112-201206

main43550-47011iZVW30201207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZVW30201112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW30201112

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010iZVW30201112-201206

main43550-47011iZVW30201207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZVW30201112

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW30201112

43512DISC, FRONT

main43512-47040×2iZVW30201112-201510

4802

91552L1050

main91552-L1050

10 parts on this diagram · 1 diagram in section
