IGNITION COIL & SPARK PLUG / GLOW PLUG

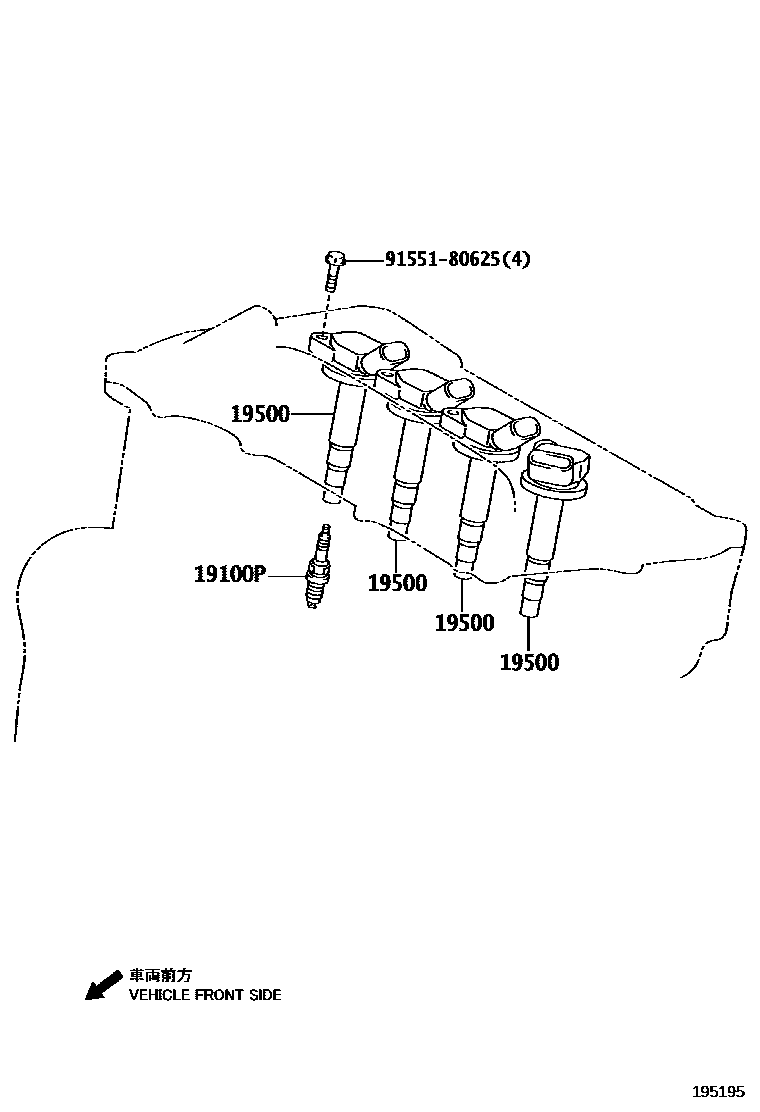

Parts diagram

19100PPLUG, SPARK

main90919-01253×4i201112-201503

SC20HR11

main90919-01275×4i201504

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258×4i201112

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
