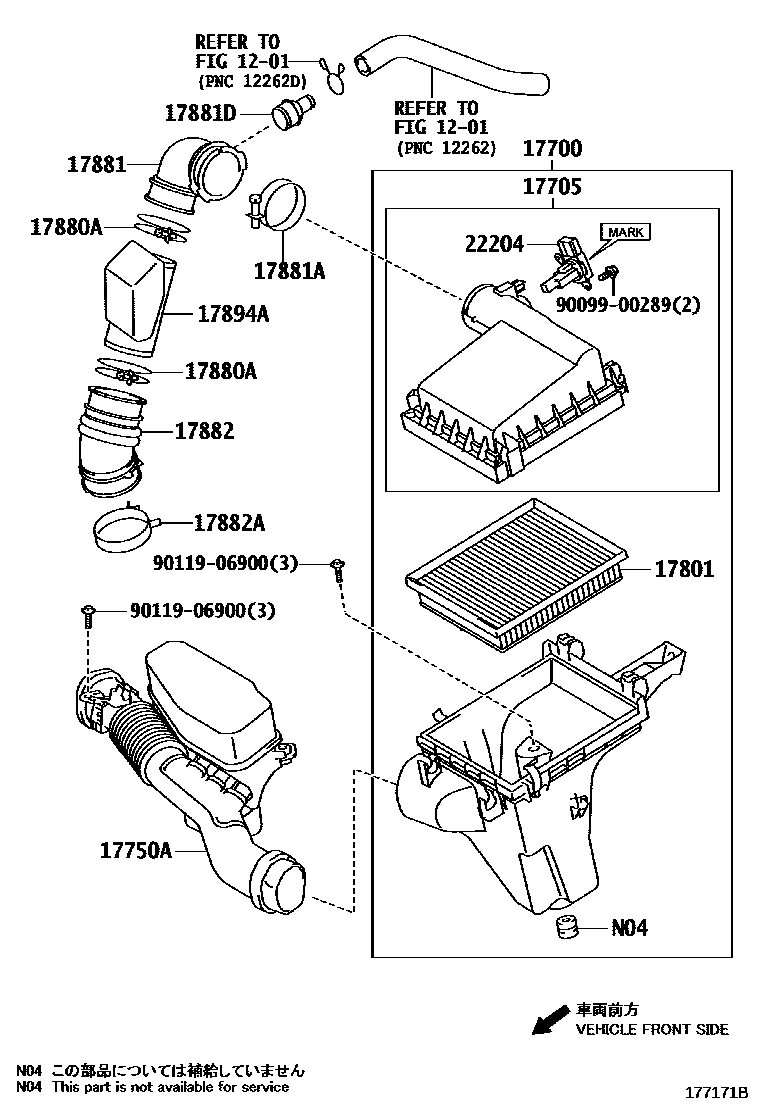

AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-37252i5ZRFXE..ZVW30201112

17705CAP SUB-ASSY, AIR CLEANER

main17705-37121i5ZRFXE..ZVW30201112

17750AINLET ASSY, AIR CLEANER

main17750-37010i5ZRFXE..ZVW30201112

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37021i5ZRFXE..ZVW30201112

17880ACLAMP, HOSE

main96111-10750i5ZRFXE..ZVW30201112

17881HOSE, AIR CLEANER, NO.1

main17881-37120i5ZRFXE..ZVW30201112

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i5ZRFXE..ZVW30201112

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i5ZRFXE..ZVW30201112

17882HOSE, AIR CLEANER, NO.2

main17882-37040i5ZRFXE..ZVW30201112

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i5ZRFXE..ZVW30201112

17894ARESONATOR, INTAKE AIR, NO.2

main17894-37010i5ZRFXE..ZVW30201112

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i5ZRFXE..ZVW30201112

MARK 22204-0T040

sub22204-28010

main22204-0V010i5ZRFXE..ZVW30201112

MARK 22204-0V010

sub22204-0V020

main22204-0V020i5ZRFXE..ZVW30201112

MARK 22204-0V020

main22204-28010i5ZRFXE..ZVW30201112

MARK 22204-28010

9009900289

main90099-00289

9011906900

main90119-06900

15 parts on this diagram · 1 diagram in section
