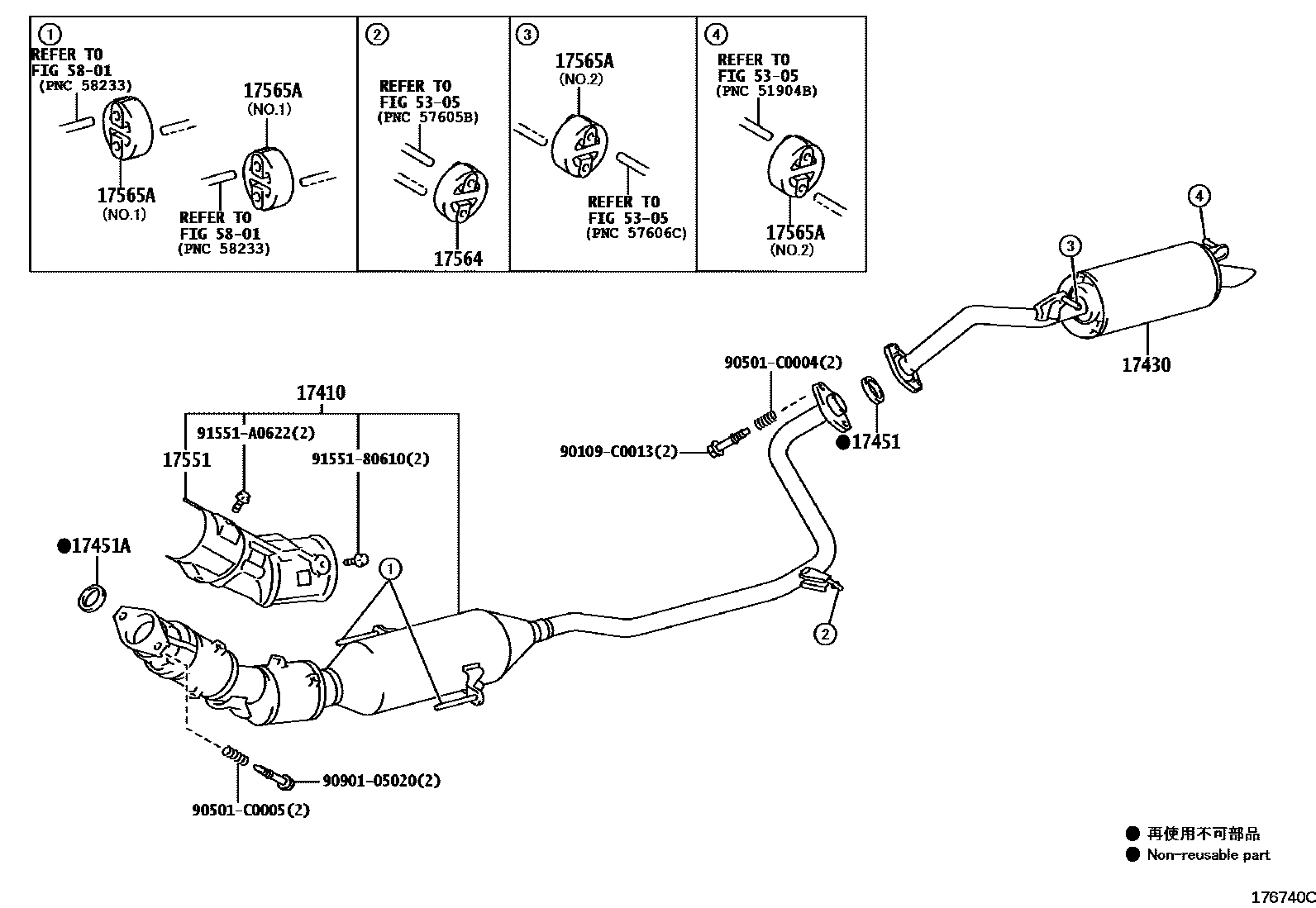

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37160i5ZRFXE..ZVW30201112

*114=*405

17430PIPE ASSY, EXHAUST, TAIL

main17430-37380i5ZRFXE..ZVW30201112

17451GASKET, EXHAUST PIPE

main17451-0T031i5ZRFXE..ZVW30201112

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T010i5ZRFXE..ZVW30201112

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-37030i5ZRFXE..ZVW30201112-201510

sub17055-37010

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0D070i5ZRFXE..ZVW30201112

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D080×2i5ZRFXE..ZVW30201112

NO.1

main17565-0T010×2i5ZRFXE..ZVW30201112

NO.2

sub17565-0T011

5305

5801

90109C0013

main90109-C0013

90501C0004

main90501-C0004

90501C0005

main90501-C0005

9090105020

main90901-05020

9155180610

main91551-80610

91551A0622

main91551-A0622

15 parts on this diagram · 1 diagram in section
