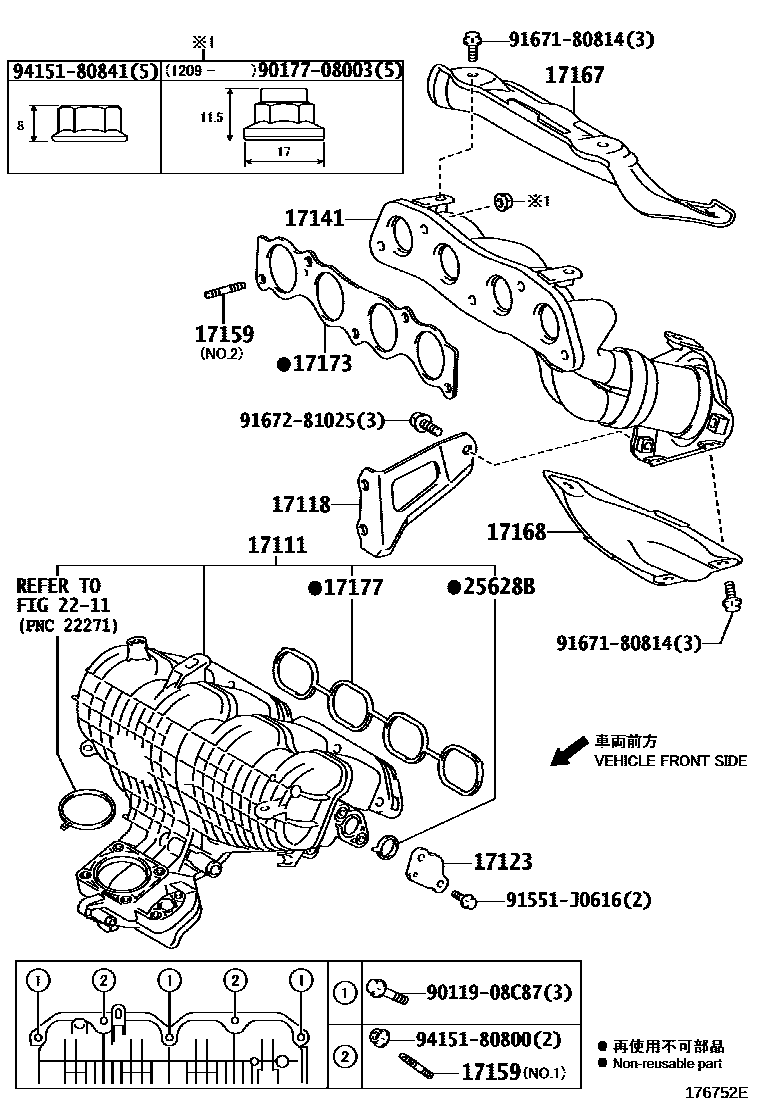

MANIFOLD

17111MANIFOLD, INTAKE

main17120-37052i5ZRFXE..ZVW30201112-201210

main17120-37053i5ZRFXE..ZVW30201210-201211

main17120-37054i5ZRFXE..ZVW30201211

17118STAY, MANIFOLD

main17118-37080i5ZRFXE..ZVW30201112

17123COVER, SURGE TANK

main17123-37010i5ZRFXE..ZVW30201112

sub17123-37011

17141MANIFOLD, EXHAUST

main17141-37180i5ZRFXE..ZVW30201112

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i5ZRFXE..ZVW30201112

NO.1

main90126-08052×5i5ZRFXE..ZVW30201112

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37080i5ZRFXE..ZVW30201112

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37110i5ZRFXE..ZVW30201112

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i5ZRFXE..ZVW30201112

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i5ZRFXE..ZVW30201112

2211

25628BGASKET, EGR INLET

main25628-28010i5ZRFXE..ZVW30201112

9011908C87

main90119-08C87

9017708003

main90177-08003

91551J0616

main91551-J0616

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

18 parts on this diagram · 1 diagram in section
