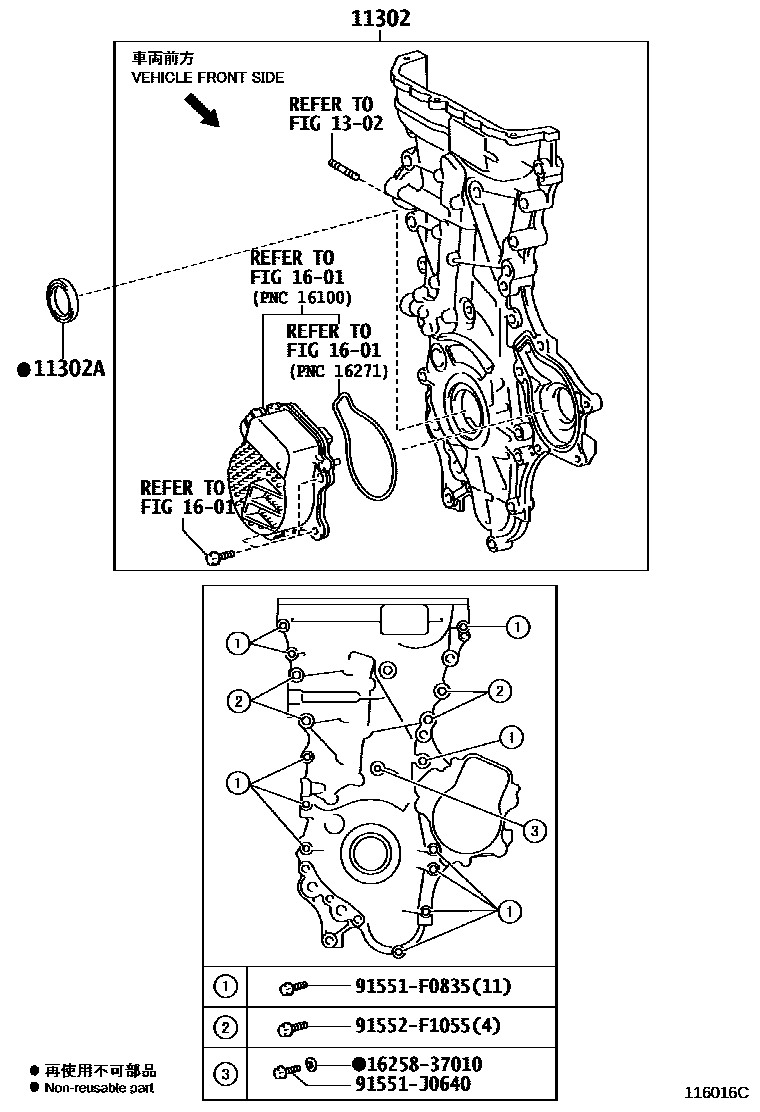

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37060i5ZRFXE..ZVW30201112-201204

main11310-37062i5ZRFXE..ZVW30201204

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i5ZRFXE..ZVW30201112

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

8 parts on this diagram · 1 diagram in section
