PARTIAL ENGINE ASSEMBLY

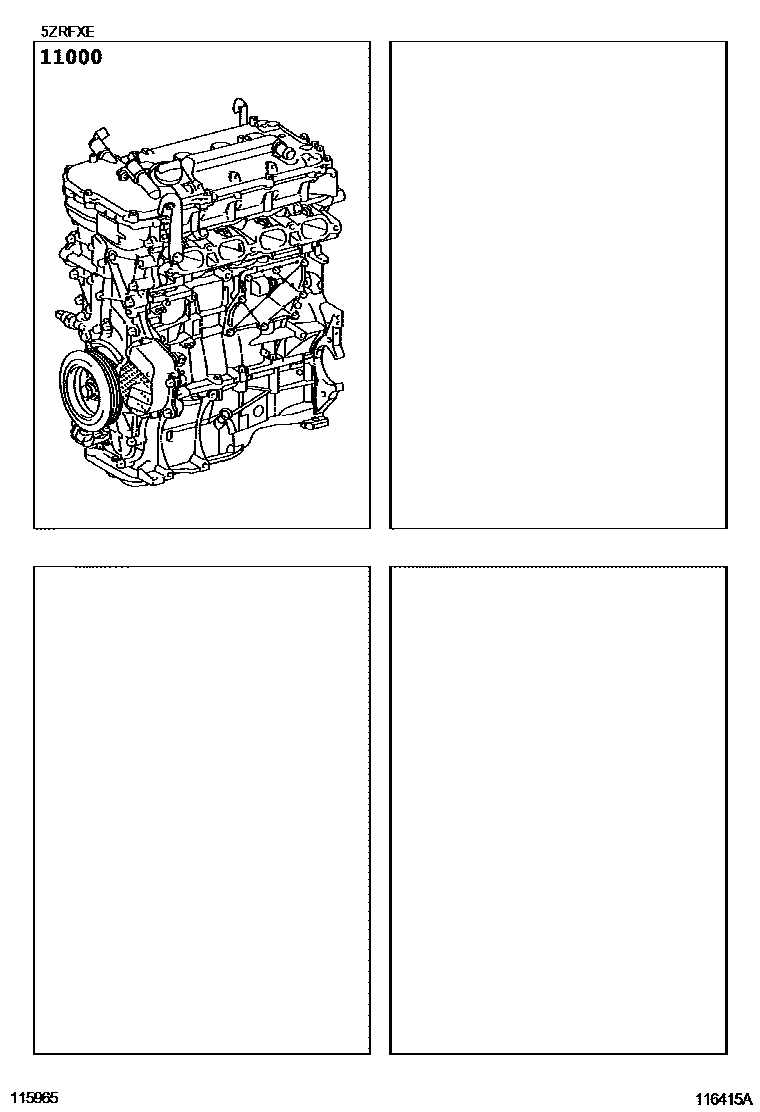

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-37530i201112-201505
main19000-37532i201505

1 parts on this diagram · 1 diagram in section
