WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & REAR WINDOW 0007 1LUGGAGE 0008 1CLAMP & BRACKET

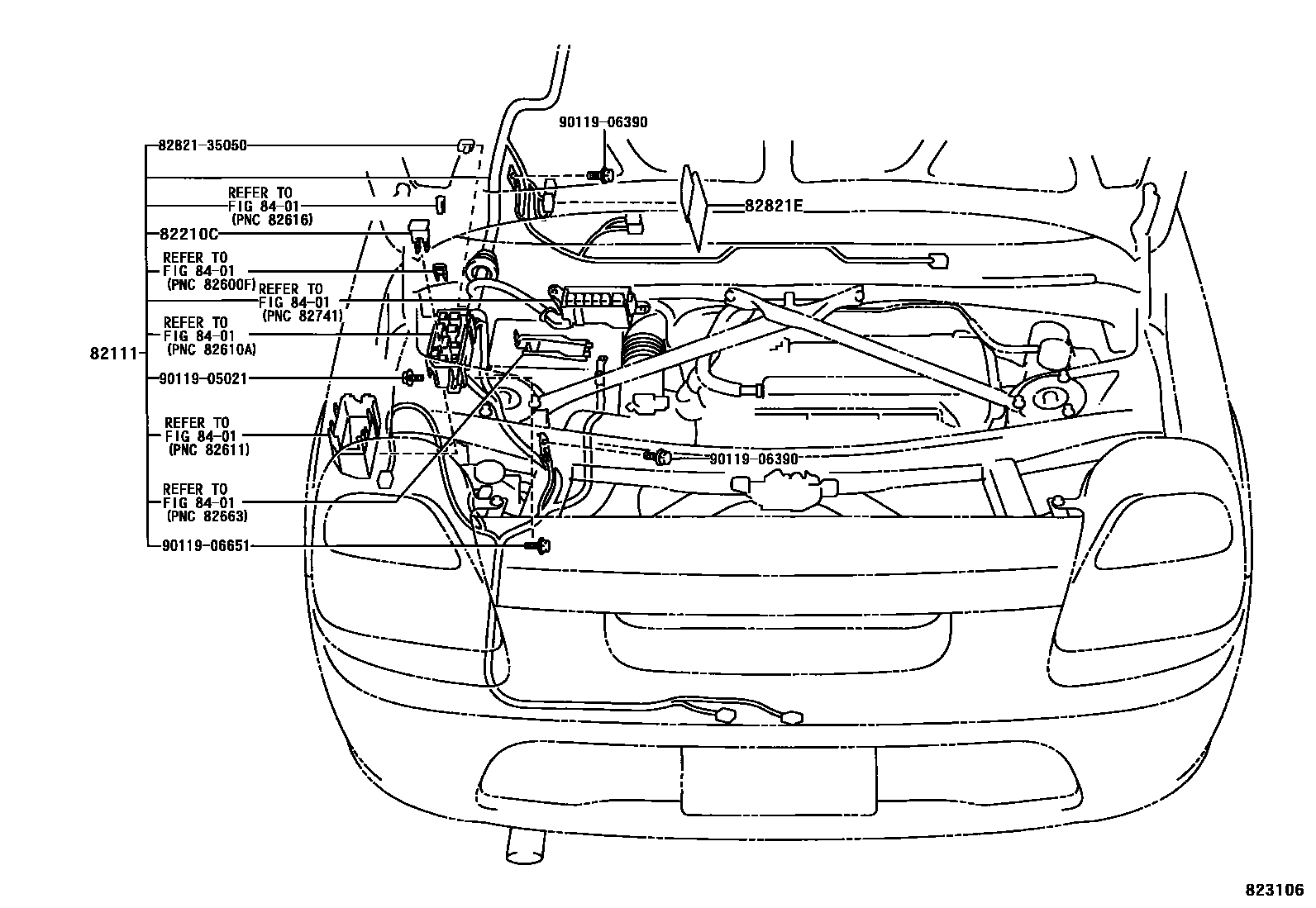

82111WIRE, ENGINE ROOM MAIN

main82111-17670iZZW30..5FS..EUR200008-200208

main82111-17671iZZW30..6FS..EUR200208-200402

main82111-17672iZZW30..6FS..EUR200402-200509

main82111-17690iZZW30..ARL200008-200208

main82111-17691iZZW30..ARL200208-200402

main82111-17692iZZW30..ARL200402-200509

main82111-17710iZZW30..5F199912-200208

main82111-17711iZZW30..6F200208-200402

main82111-17712iZZW30..6F200402-200509

82210CFUSIBLE LINK

main90982-08246iZZW30199912-200509

100A,TERM.:MALE,BLUE

main90982-08281iZZW30199912-200509

40A,TERM.:FEMALE,GRN

main90982-08282iZZW30199912-200509

50A,TERM.:FEMALE,RED

82821ECOVER, CONNECTOR

main82821-17020iZZW30199912-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282135050RETAINER, HEADLAMP HARNESS

main82821-35050

9011905021

main90119-05021

9011906390

main90119-06390

9011906651

main90119-06651

8 parts on this diagram · 8 diagrams in section
