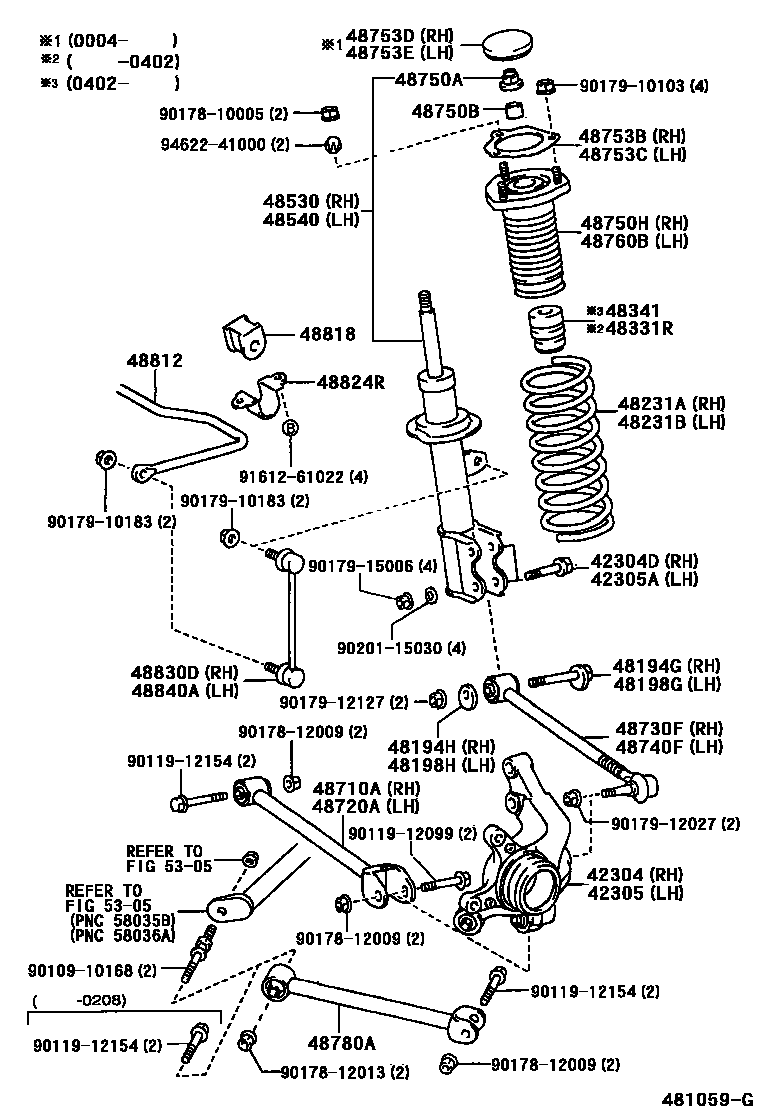

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH
48194HCAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH
48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48331RBUMPER, REAR SPRING
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-17220
MARK 48530-17221
MARK 48530-17230
MARK 48530-17240
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-17220
MARK 48540-17221
MARK 48540-17230
MARK 48540-17240
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH
48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48824RBRACKET, STABILIZER(FOR REAR)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
5305
9010910168
main90109-10168
9011912099
main90119-12099
9011912154
main90119-12154
9017810005
main90178-10005
9017812009
main90178-12009
9017812013
main90178-12013
9017910103
main90179-10103
9017910183
main90179-10183
9017912027
main90179-12027
9017912127
main90179-12127
9017915006
main90179-15006
9020115030
main90201-15030
9161261022
main91612-61022
9462241000
main94622-41000
47 parts on this diagram · 1 diagram in section
