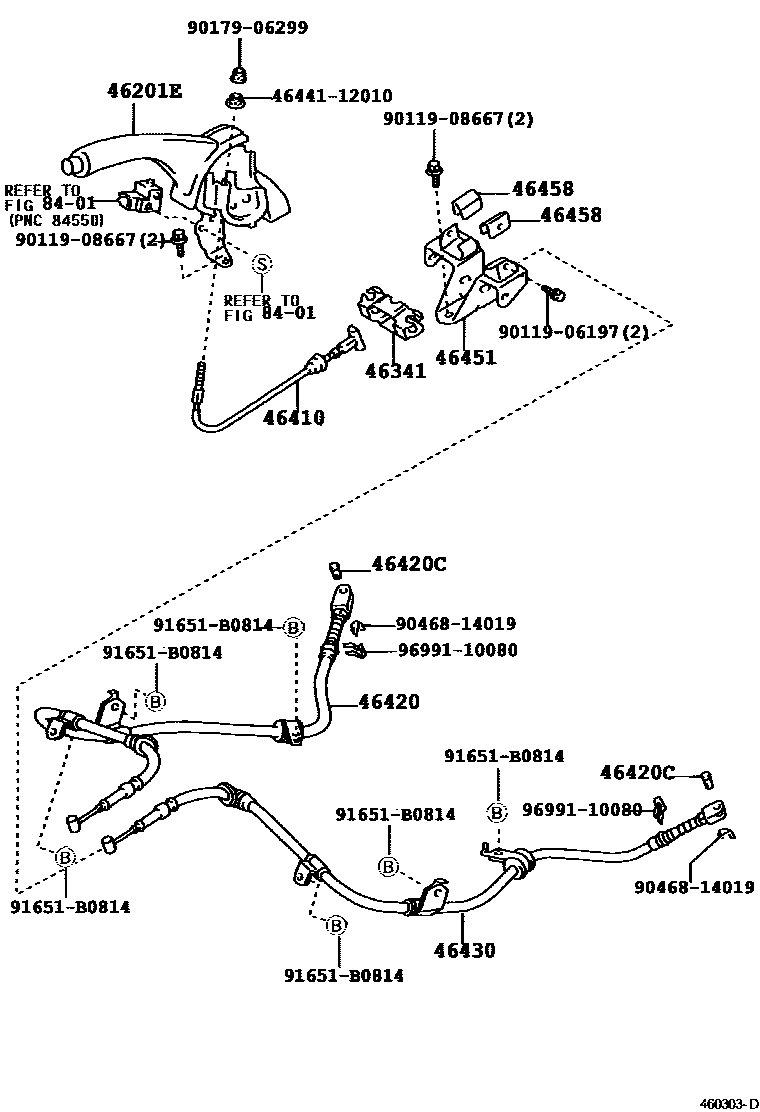

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-17080-C0iZZW30199912-200008

BLACK,TRIM2#,3#,5#

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZW30199912-200208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-17050iZZW30199912-200208

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-17090iZZW30199912-200105

main46420-17091iZZW30200105-200208

main46420-17100iZZW30200208-200509

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iZZW30199912-200208

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-17090iZZW30199912-200105

main46430-17091iZZW30200105-200208

main46430-17100iZZW30200208-200509

46451BRACKET, CABLE SUPPORT

main46451-17060iZZW30199912-200208

46458RETAINER, CABLE

main46458-28010×2iZZW30199912-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010

9011906197

main90119-06197

9011908667

main90119-08667

9017906299

main90179-06299

9046814019

main90468-14019

91651B0814

main91651-B0814

9699110080

main96991-10080

16 parts on this diagram · 1 diagram in section
