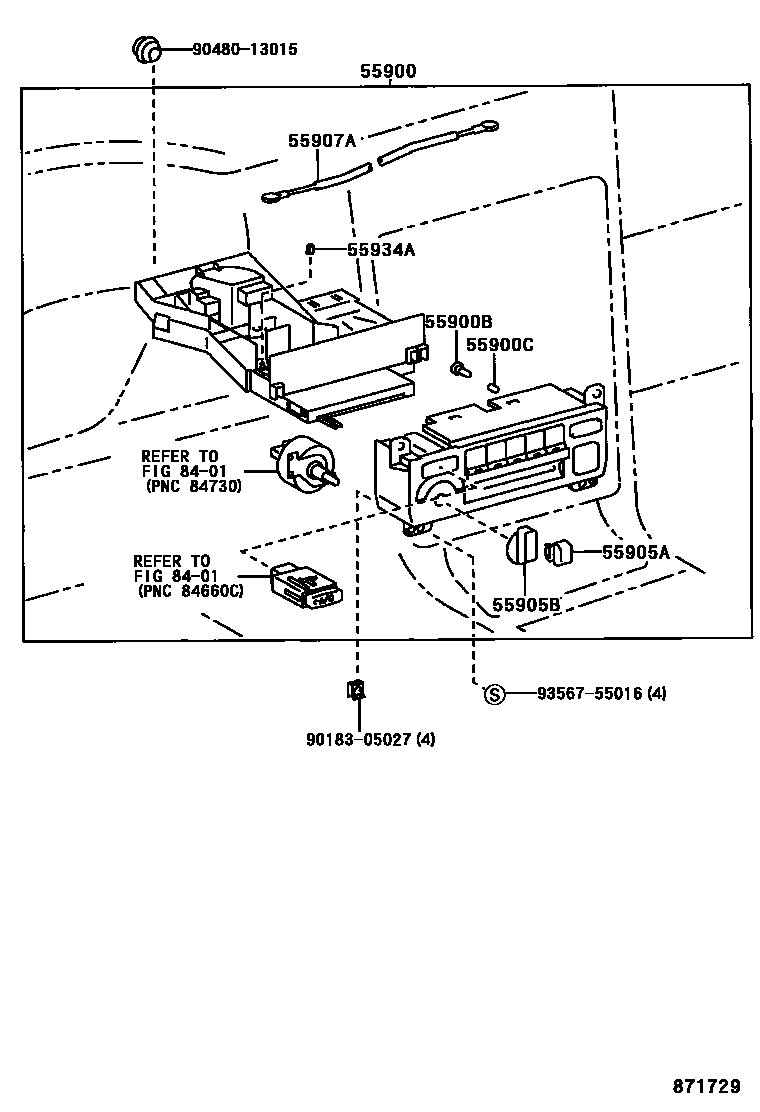

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT

55900CONTROL ASSY, AIR CONDITIONER

main55900-17070iSW20..RHD198912

main55900-17080iSW20..RHD..(G,W)198912

W(AIR CONDITIONER)

main55900-17100iSW20..LHD198912-199008

main55900-17110iSW20..LHD198912-199008

W(AIR CONDITIONER)

main55900-17120iSW20..LHD199008

main55900-17130iSW20..LHD199008

W(AIR CONDITIONER)

55900BBULB, AIR CONDITIONER CONTROL

main84999-10090×2iSW20198912

12V 1.8W

55900CCAP, AIR CONDITIONER CONTROL BULB

main84998-10120×2iSW20198912

12V 1.8W

55905AKNOB, HEATER CONTROL

main55905-17040iSW20198912

55905BKNOB, HEATER CONTROL, NO.2

main55905-17050iSW20199311

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-17030iSW20..RHD198912

main55907-17040iSW20..LHD198912

55934ARETAINER, HEATER CONTROL CABLE

main55934-17010×2iSW20198912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9018305027

main90183-05027

9048013015

main90480-13015

9356755016

main93567-55016

11 parts on this diagram · 2 diagrams in section
