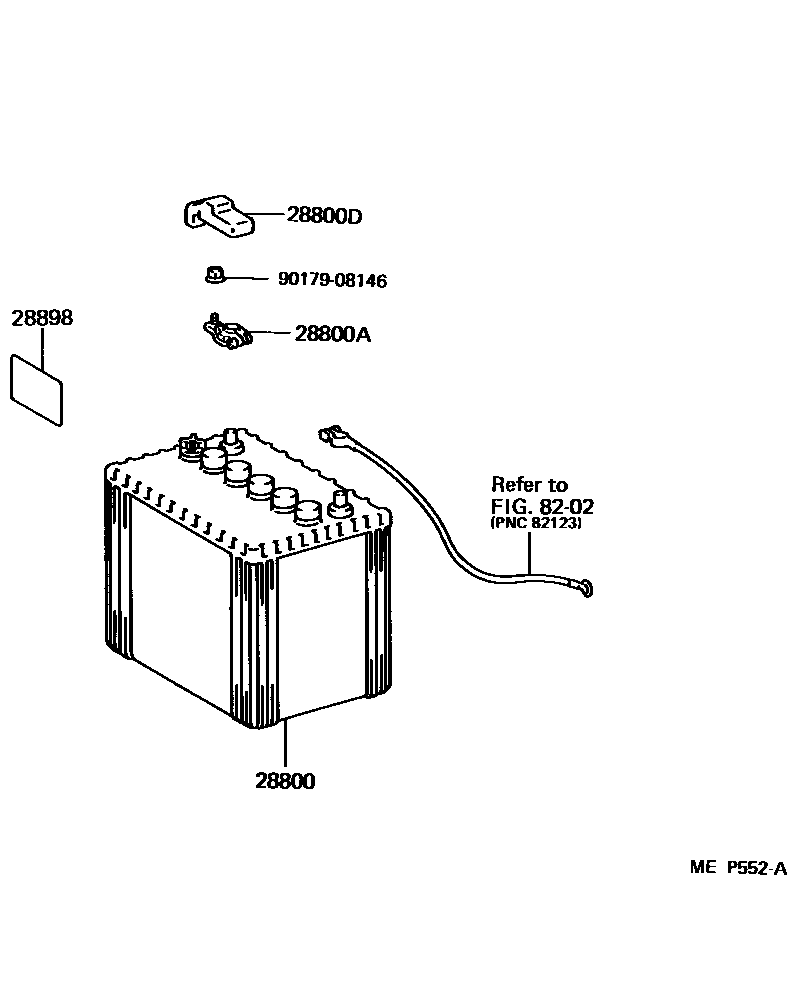

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31010i3SGE..SW20..ARL,G198912

32C24L

main28800-64010i3S#..SW20..G,W198912-199311

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05042i3S#..SW20198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i3S#..SW20198912

28898PLATE, BATTERY

main28898-46010i3SGE..SW20..LHD199404

main28898-50070i3SGE..SW20..LHD..G199110-199404

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
