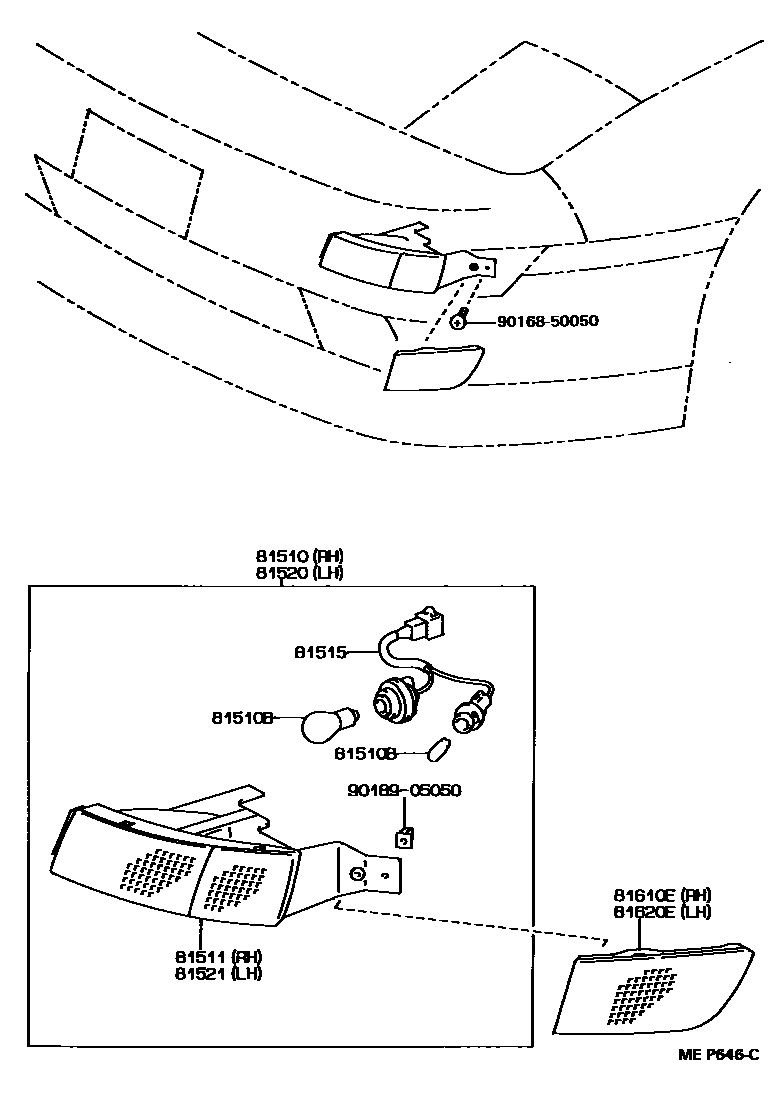

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-17090iSW20199606

main81510-80075iSW20..W198912-199112

main81510-80076iSW20..ARL199112-199606

main81510-80083iSW20..G,W199112-199606

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iSW20199606

12V 21W,AMBER

main99132-11210×2iSW20198912-199606

12V 21W

main99132-12050×2iSW20198912

12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-17070iSW20198912-199112

main81511-17071iSW20199112-199606

main81511-17090iSW20199606

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-17050×2iSW20..ARL,G198912-199112

main81515-17070×2iSW20..G,W199112-199606

main81515-17090×2iSW20199606

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-17090iSW20199606

main81520-80075iSW20..W198912-199112

main81520-80076iSW20..ARL,G198912-199112

main81520-80083iSW20..G,W199112-199606

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-17070iSW20198912-199112

main81521-17071iSW20199112-199606

main81521-17090iSW20199606

81610ECOVER ASSY, RH

main81610-17010iSW20198912-199606

main81610-17020iSW20199606

81620ECOVER ASSY, LH

main81620-17010iSW20198912-199606

main81620-17020iSW20199606

9016850050

main90168-50050

9018905050

main90189-05050

10 parts on this diagram · 2 diagrams in section
